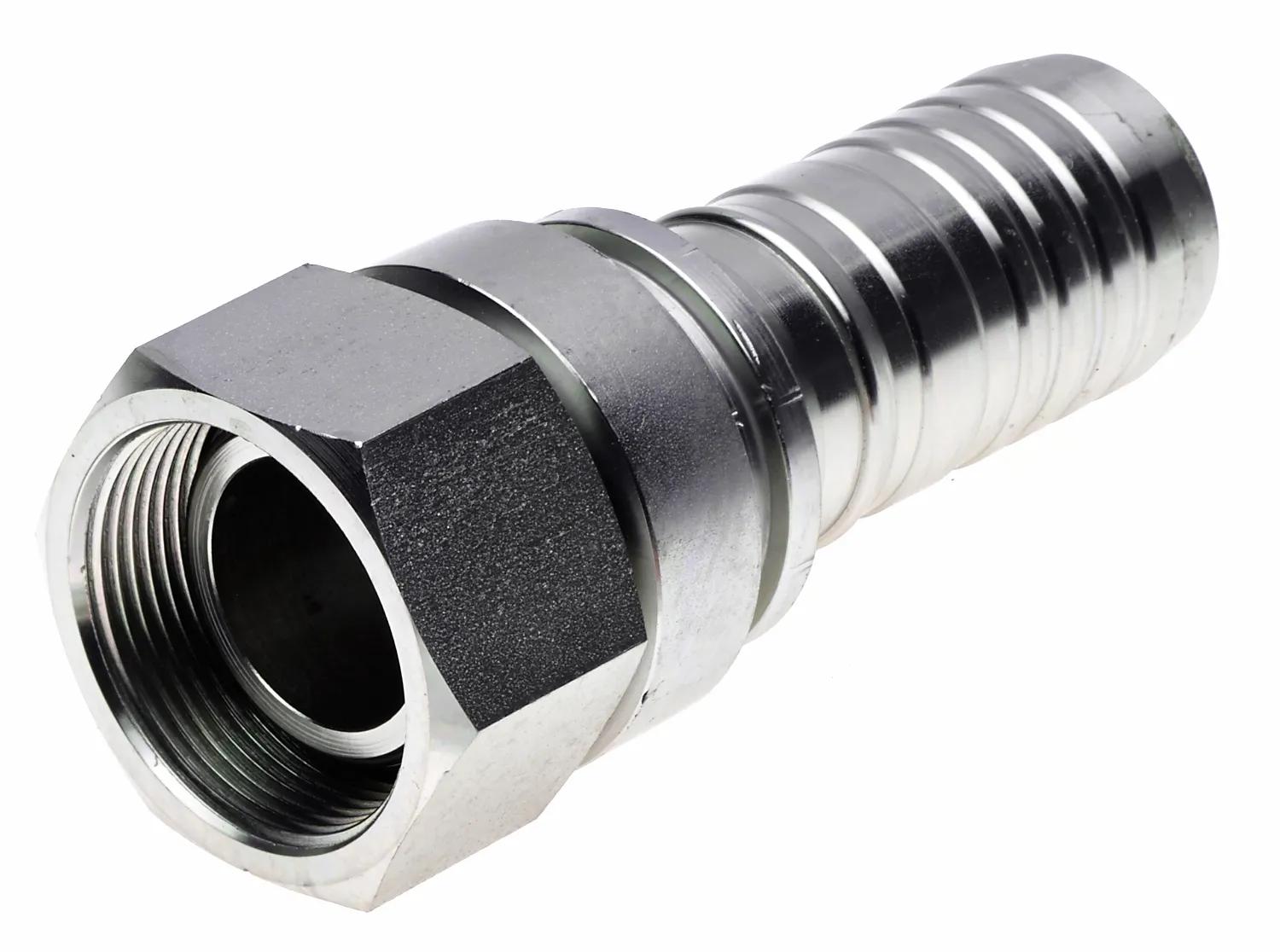

GlobalSpiral Plus O-Ring Swivel, 24GSP-24FFORX
#GATG22230-2424
Product Overview
Gates GlobalSpiral Plus No-Skive Couplings Are For Use on 1 1/2 in. & 2 in. Spiral & Wire Braid Hoses Requiring a Working Pressure of 3000 PSI or Less.
Features & Benefits
- Surpasses one million impulse cycles. Innovative, two-piece, no-skive design.
- Separate Ferrules Are Required for 4-Spiral Hose & Wire Braid Hose.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention.
- Eliminating the Skiving Process Drastically Reduces Assembly Time, Labor, Odor, Fabrication Errors & the Contamination of the Fluid Power System.
- Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types.
- Reduces assembly time, labor, fabrication errors and contamination.
Specifications
| Description d'accouplement | GlobalSpiral Plus Female Flat-Face O-Ring Swivel |
| Coupure (po) – C | 2-1/2 po |
| Recommandations pour le tuyau | Tuyau hydraulique extrêmement haute pression Gates (-24 et -32) |
| Description industrielle | 24GSP-24FFORX |
| Diamètre intérieur | 1-1/2 po |
| Longueur | 5-11/64 po |
| Note | Métrique Hex selon le projet de norme internationale ISO 12151-1. Joint Torique SAE J1453. |
| Écrou hexagonal (po) – H2 | 2-1/4 po |
| N° de pièce d'origine | G22230-2424 |
| Numéro de produit | 734730725 |
| Diamètre intérieur du manchon | 2-11/64 po |
| Stem Hex (in.) | 2-11/64 po |
| Thread | 2 po-12 |
| Type | Raccord tournant femelle à joint torique à face plate GlobalSpiral Plus |
| Weight | 1,93 lbs |
Interchanges & Equivalent parts:
| G22230-2424 |
| 734730725 |
