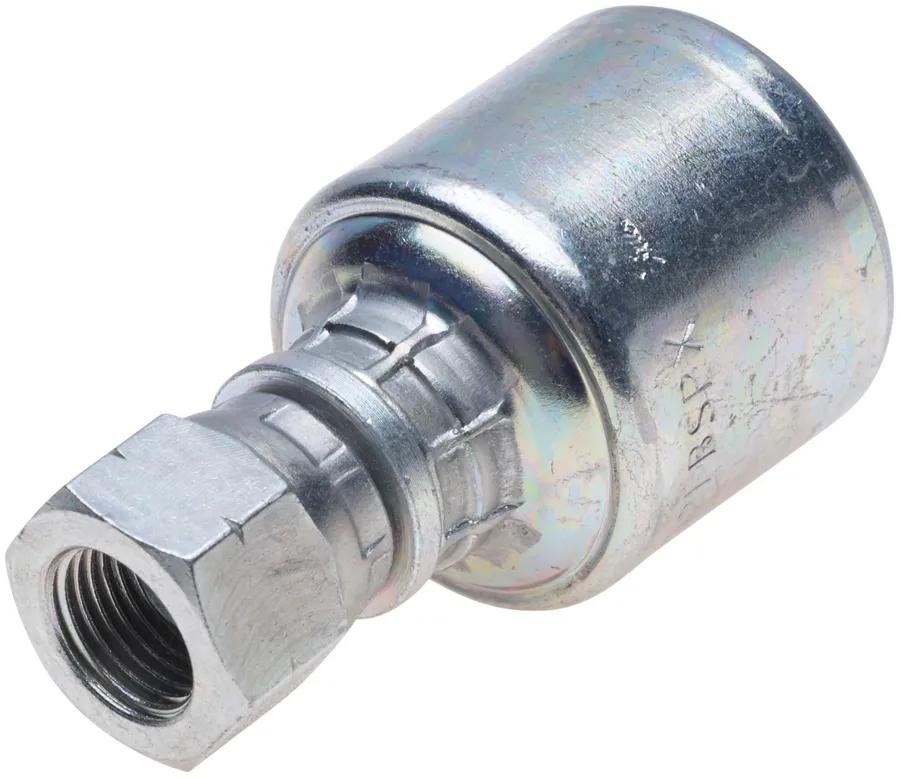

MegaCrimp Female Pipe O-Ring Swivel, 6G-6FBSPORX XBULK
#GATG25830-0606X
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Includes O-Ring Sealing in Flare.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel |
| Coupure (po) – C | 11/16 po (1,75 cm) |
| Type de raccords | Femelle |
| Recommandations pour le tuyau | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Description industrielle | 6G-6FBSPORX XBULK |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 1-39/64 po (4,09 cm) |
| Nut Hex (in) – H2 | 55/64 po (2,18 cm) |
| O-Ring | Sur femelle avec siège à nez inversé |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 30 deg |
| Swivel | Oui |
| Termination | British |
| Type | Raccord tournant à joint torique pour tube parallèle MegaCrimp femelle standard britannique |
Interchanges & Equivalent parts:
| G25830-0606X |
| 71009629 |
