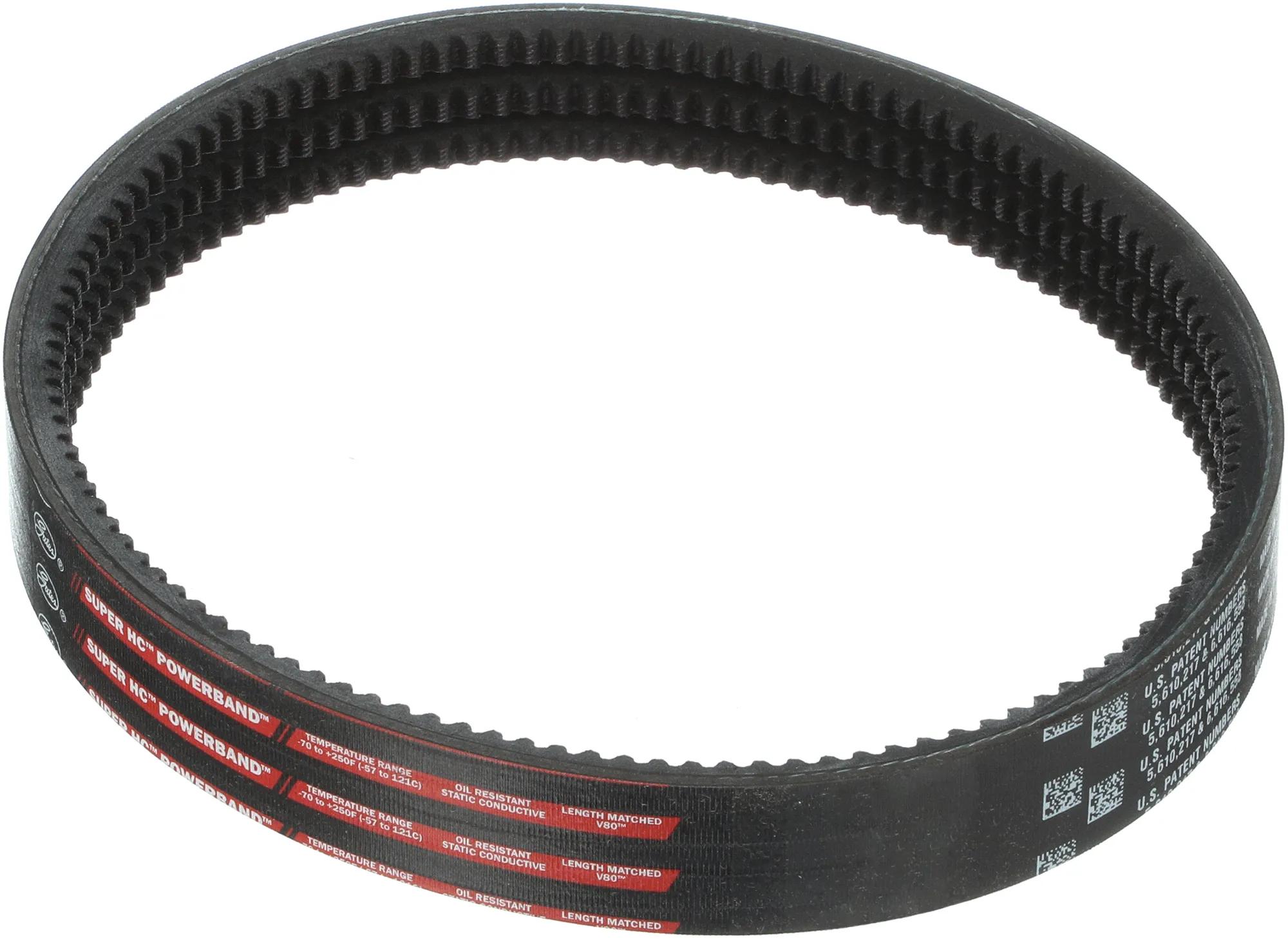

Narrow Section Molded Notch V-Belt, W: 1-1/8 in
#GAT3/3VX600
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Notches Molded Into The Belt During Manufacturing Make This Belt Well Suited For Drives w/ Smaller Diameter Sheaves.
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 1-1/8 to 1-1/4 in (2.87 to 3.18 cm) |
| Length | 60 in |
| # of Grooves | 3 |
| Section | 3VX |
| Length Range | 60 to 64.99 in |
| Top Width Per Strand (in) | 25/64 in (0.99 cm) |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 1-1/8 in (2.87 cm) |
Interchanges & Equivalent parts:
| 594180 |
| 6660994 |
| 012640100 |
| 15502520 |
| 3GB3VX600 |
| R3VX6003 |
| 33VX600 |
| A3VX60003 |
| 3/3VX600 |
| 93883060 |
