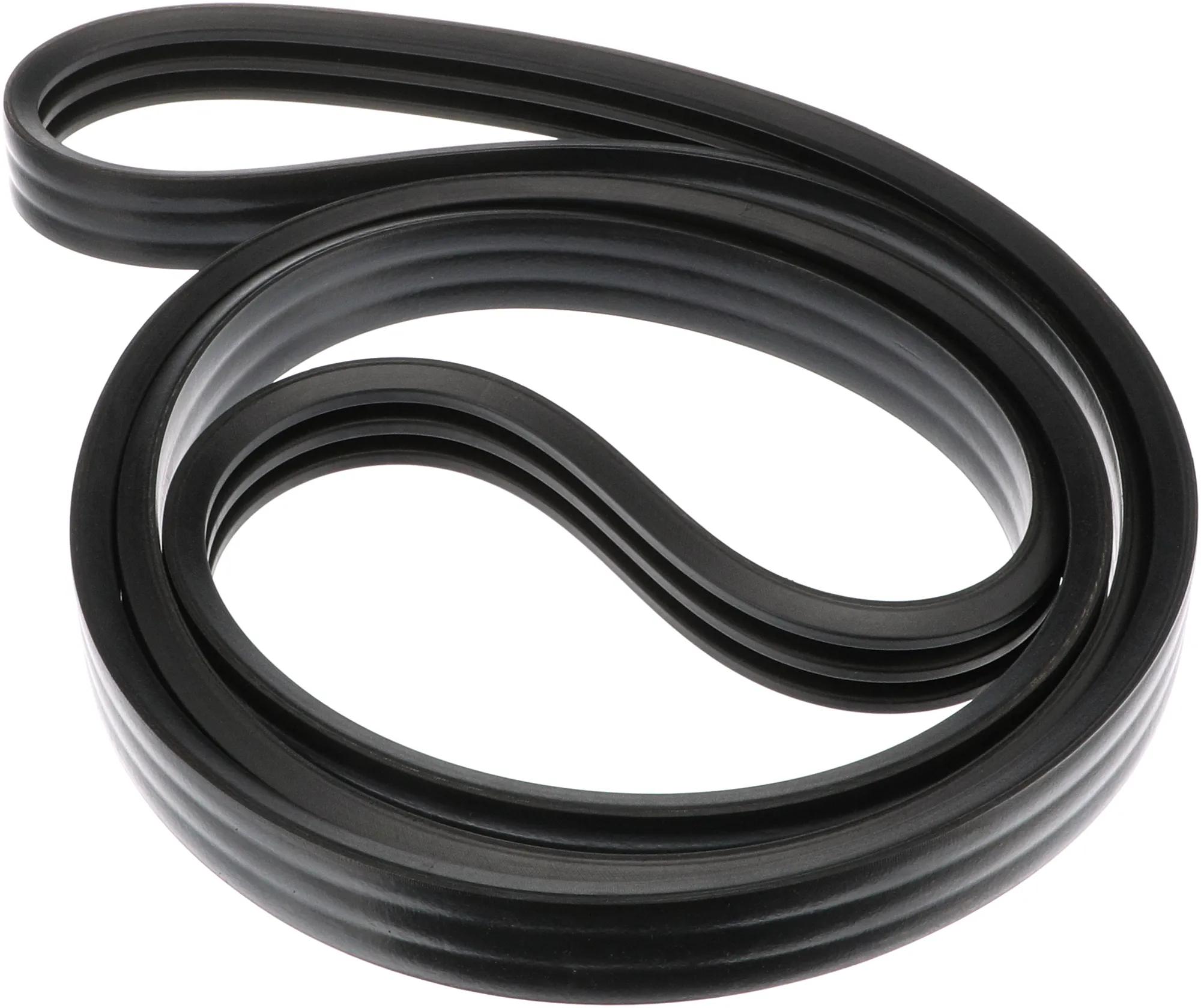

Narrow Section Wrapped V-Belt, W: 2-1/16 in
#GAT3/5V1120
Product Overview
The Powerband Construction Allows Multiple Belts To Function As A Single Unit, w/ Even Load Distribution & Each Strand Fitting Securely In The Sheave Groove.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- The Tie Band Assures High Lateral Rigidity, Guiding The Belt In A Straight Line & Preventing It From Coming Off The Drive.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending stress w/o Cord Deterioration.
- Concave Sidewalls Provide Proper Cord Support & Full Contact w/ The Sheave-Groove For Equal Loading & Uniform Wear.
- Recommended For Multiple V-Belt Drives Exposed To Pulsating Or Heavy Shock Loads Which Can Make Belts Whip, Turn Over Or Jump Off The Drive.
- Meets RMA Static Conductivity Requirements.
Specifications
| Largeur de la courroie supérieure | 2 à 2-1/8 po (5,08 à 5,41 cm) |
| Longueur | 112 po |
| # of Grooves | 3 |
| Section | 5V |
| Length Range | 110 à 119.99 po |
| Top Width Per Strand (in) | 5/8 po (1,6 cm) |
| Type | Courroie en V enveloppée à section étroite |
| Width | 2-1/16 po (5,23 cm) |
Interchanges & Equivalent parts:
| 35V1120 |
| R5V11203 |
| A5V112003 |
| 3/5V1120 |
| 93863112 |
