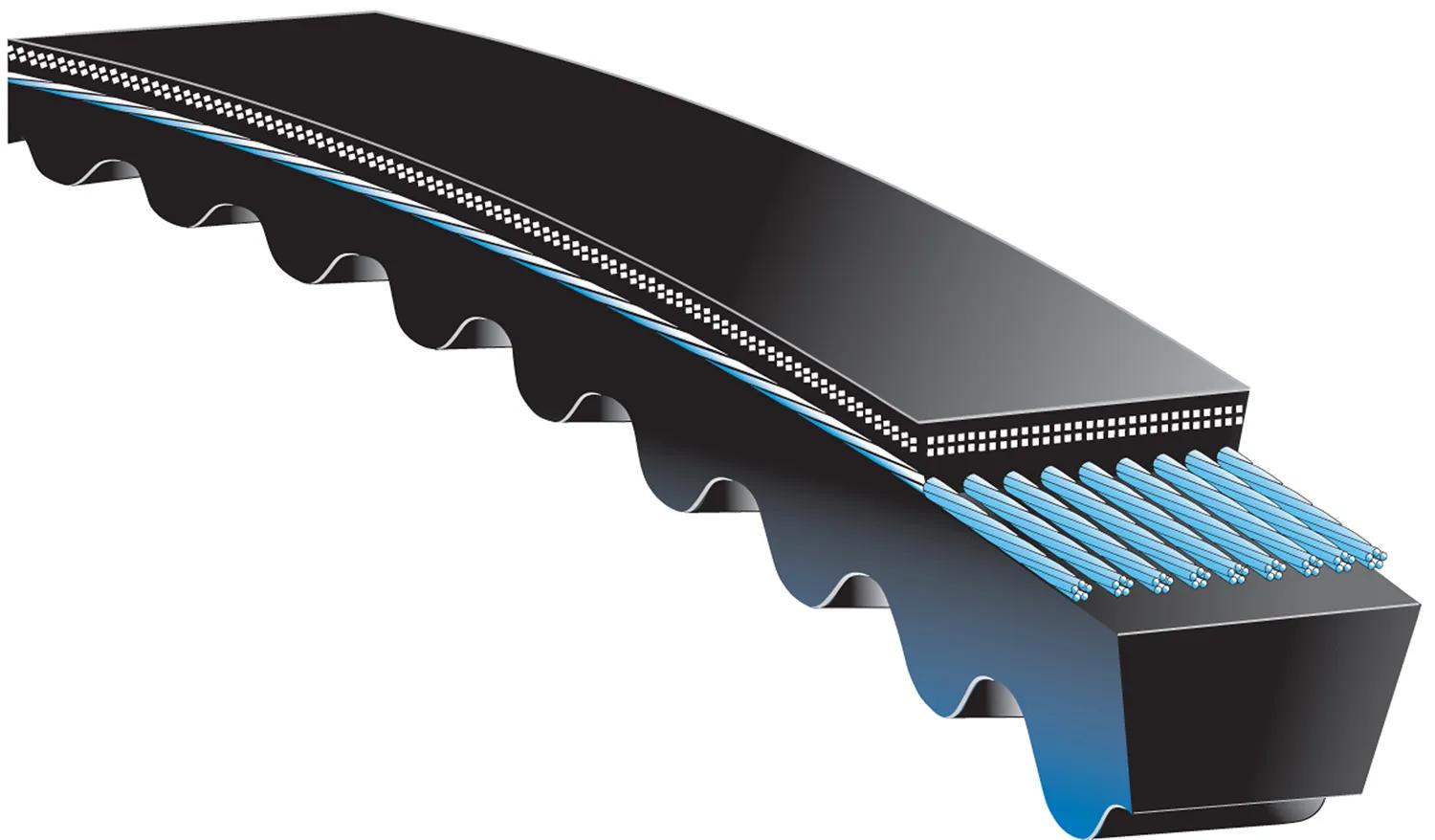

Narrow Section Molded Notch V-Belt, W: 3/8 in
#GAT3VX630
Product Overview
Recommended For Use On Special Drives Where Space & Weight Limitations Are Critical.
Features & Benefits
- Also Known As Super HC V-Belts.
- Special Tensile Cords Treated w/ A Material That Bonds w/ The Cords & Surrounding Rubber.
- In Many Cases, They Can Replace High Maintenance Chain & Gear Drives.
- They Can Transmit Up To 3 Times The HP Of Conventional V-Belts In The Same Drive Space.
- Sheaves Can Be Smaller In Diameter & Operate At Belt Speeds Up To 6,500 RPM w/o Dynamic Balancing.
- Special Material That Resists Oil, Heat, Sunlight, Ozone, Weathering & Aging.
- Reduce Weight & Overhung Load On Bearings.
- Meets Or Exceeds RMA Standards For Static Conductivity.
Specifications
| Belt Top Width | 3/8 to 1/2 in (0.97 to 1.27 cm) |
| Construction | Notched |
| Length | 63 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | 3VX |
| Length Range | 60 to 64.99 in |
| Type | Narrow Section Molded Notch V-Belt |
| Width | 3/8 in (0.97 cm) |
Interchanges & Equivalent parts:
| 13AG630 |
| 13AG6304 |
| 2L393 |
| 3030000648265 |
| 363367 |
| 39158340 |
| 3VX630PBL |
| 627870 |
| 90918 |
| 9XN1600 |
| HH6025 |
| M119000485 |
| MS392773V630 |
| 3VX630 |
| GYI3VX630 |
| 128085363 |
| 128085463 |
| 312580 |
| 44431 |
| 4630 |
| 54T159A |
| 7Z277D632 |
| 7Z277D634 |
| 7Z277D635 |
| A-3VX630 |
| SPZ1600 |
| 826274 |
| 13VX630 |
| A3VX630 |
| 41006363 |
| R3VX630 |
| 94120630 |
