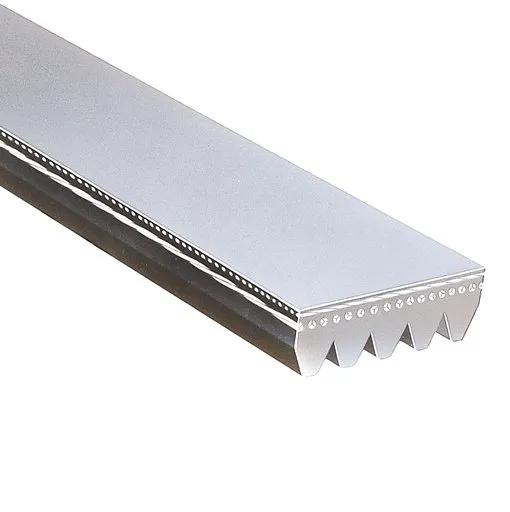

Industrial V-Ribbed Belts, L: 47-63/64 in, 6 Grooves
#GAT480J6
Product Overview
Exclusive Truncated (Shortened) Profile Gives Gates Micro-V Belts Increased Flexibility, Reduced Heat Buildup & Allows Performance At Higher Speeds On Smaller Diameter Sheaves.
Features & Benefits
- Well Suited For Applications Such As Appliances, Outdoor Power Equipment, Roller Conveyors, Machine Tools, Medical Equipment & Exercise Equipment.
- Meets RMA Oil & Heat Resistant Standards.
- Smooth Running For Minimal Vibration At High Speeds.
- High Modulus, Low Stretch Tensile Member For Added Strength & Dependability.
- Fiber Reinforced Ribs For Excellent Wear Resistance.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Length | 48 in |
| # of Grooves | 6 |
| Section | J |
| Length Range | 45 to 49.99 in |
| Top Width Per Strand (in) | 5/64 in (0.2 cm) |
| Type | Industrial V-Ribbed Belts |
| Width | 9/16 in (1.42 cm) |
Interchanges & Equivalent parts:
| BT54 |
| 480J6 |
| A480J6 |
| 41015578 |
| 99151716 |
| BT0054 |
| 917104806 |
