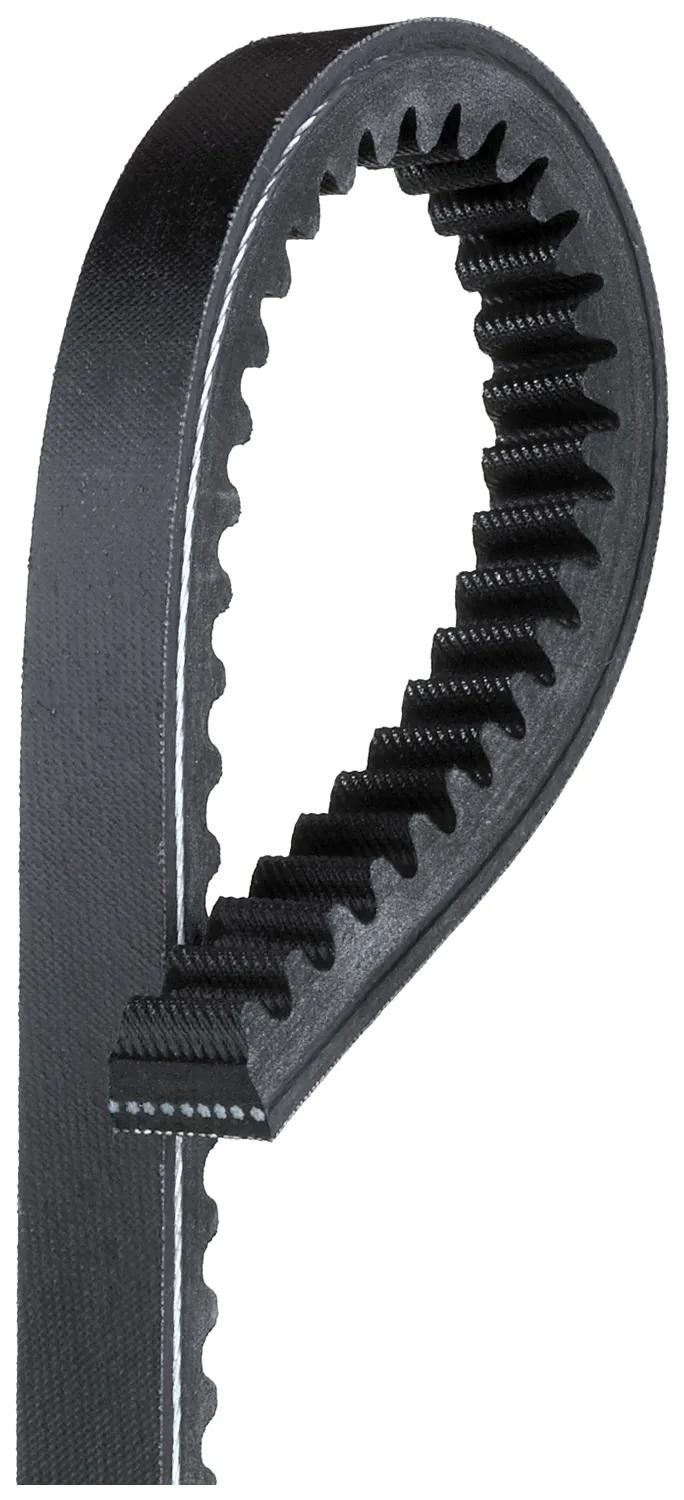

Truck & Bus V-Belt, L: 56.99 in, W: 19/32 in
#GATTR22570
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 40 deg |
| Belt Top Width | 1/2 to 5/8 in (1.27 to 1.6 cm) |
| Construction | Notched |
| Length | 57.57 in |
| Material | Polyester |
| Notched | Yes |
| # of Grooves | 1 |
| Section | RA |
| Length Range | 55 to 59.99 in |
| Type | Truck & Bus V-Belt |
| Weight | 0.54 lb (0.24 kg) |
| Width | 19/32 in (1.5 cm) |
Interchanges & Equivalent parts:
| 0023255366 |
| 0197821444 |
| 027069405 |
| 027101663 |
| 0400251 |
| 0412121757 |
| 076G1 |
| 10A11376 |
| 134787 |
| 134801 |
| 15A1445 |
| 15A1450 |
| 1717167 |
| 18-22570 |
| 22570 |
| 22574 |
| GYB22570 |
| GYB22574 |
| 178595 |
| 178603 |
| 2045B55H16 |
| 2077491 |
| 2077991 |
| 208040018 |
| 208045057 |
| 22-570 |
| 22-575 |
| 22570DR |
| 22574MK |
| 23255366 |
| 25-14430 |
| 25-22570 |
| 2612437 |
| 3040367 |
| 31745 |
| 326998R1 |
| 326998R11 |
| 3856B1560 |
| 3856B1562 |
| 4025623 |
| 424608 |
| 426635 |
| 426674 |
| 427112 |
| 432629 |
| 433122 |
| 434533 |
| 435002 |
| 448586 |
| 470003 |
| 49355 |
| 5113374 |
| 5113375 |
| 54336 |
| 545139 |
| 54920 |
| 55715 |
| 56257 |
| 56720 |
| 585328C1 |
| 586328C1 |
| 586329C91 |
| 59950 |
| 645M |
| 667M |
| 670740C1 |
| 670741C1 |
| 676G1 |
| 6788802 |
| 6788803 |
| 6888803 |
| 6U42133 |
| 700224 |
| 700224A7 |
| 770381C1 |
| 88GB330P192 |
| 900195122A |
| 910416-6274 |
| 911271 |
| 922221 |
| 9L6639 |
| 9L6640 |
| 9N1324 |
| A64206 |
| B0038715 |
| B5560 |
| B8QH 8620 D |
| BH-1735 |
| C3TA 8620 H |
| C3TZ 8620 C |
| C9PZ 8620 EH |
| D11024827 |
| D11024828 |
| D47563 |
| GT22572 |
| GT22572E |
| GT22573 |
| MD3440 |
| MF8555 |
| MF8560 |
| N153364 |
| R82174 |
| RECMF8555 |
| RECMF8560 |
| REMF8555 |
| REMF8560 |
| S2398 |
| S2472 |
| S2820 |
| T22570 |
| TR22570HDV |
| V1090877 |
| V1091033 |
| Y470003 |
| Y470004 |
| ZAH22570 |
| ZJG22574 |
| 22570GL |
| BH1735 |
| GT 22572 |
| GT 22 |
