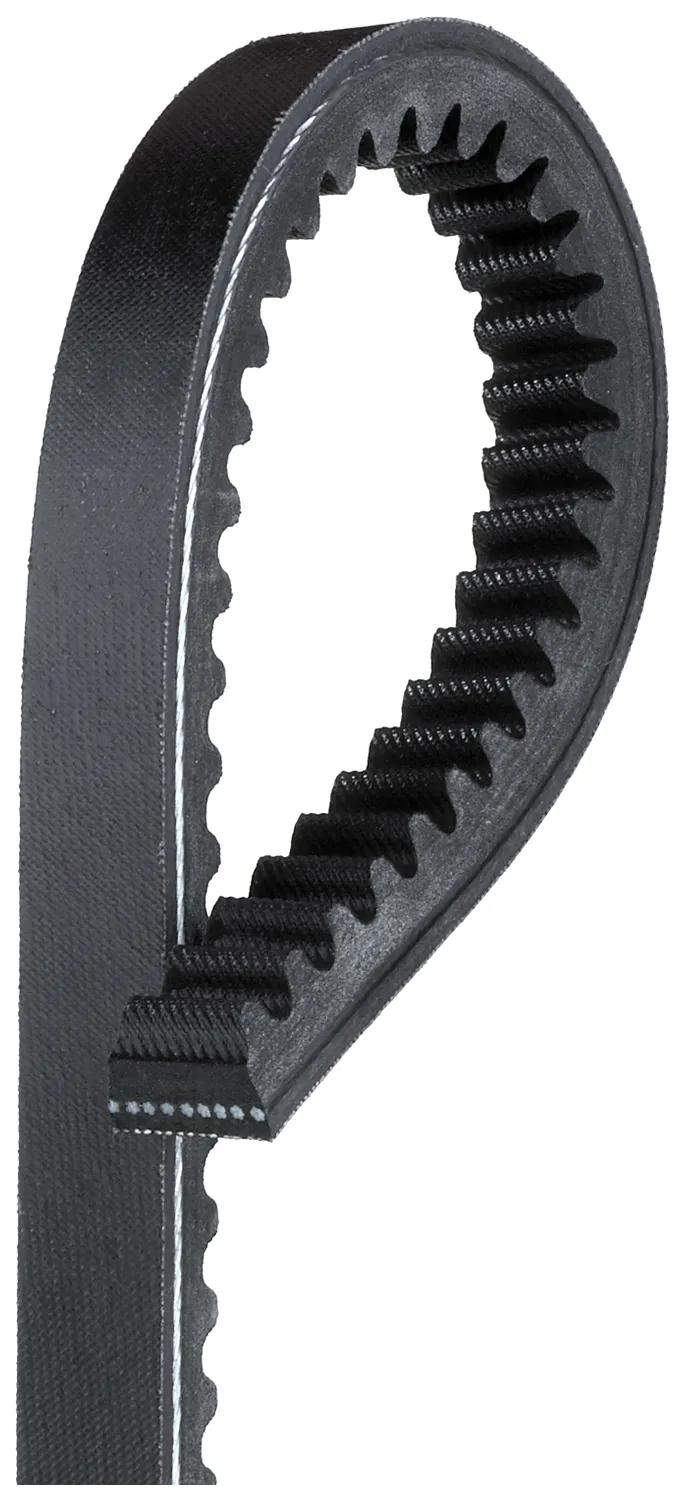

Truck & Bus V-Belt, L: 59.69 in, W: 21/32 in
#GATTR24597
Features & Benefits
- Meets SAE J636b and SAE J637 specifications.
- Oil and heat-resistant construction throughout.
- Special tensile cords give high stretch resistance.
- Special notch design resists cracking while providing tensile member support during operation.
- Deep notch pattern also allows greater flexibility over small diameter pulleys and helps keep the belt cool.
Specifications
| Angle | 36 deg |
| Largeur de la courroie supérieure | 5/8 à 3/4 po (1,6 à 1,91 cm) |
| Construction | Entaillé |
| Longueur | 60,27 po |
| Material | Polyester |
| Notched | Oui |
| # of Grooves | 1 |
| Section | TA |
| Length Range | 60 à 64.99 po |
| Type | Courroie en V pour camions et autobus |
| Weight | 0,69 lb (0,31 kg) |
| Width | 21/32 po (1,68 cm) |
Interchanges & Equivalent parts:
| 0412021759 |
| 115992R1 |
| 151571 |
| 166493 |
| 178720 |
| 17A1515 |
| 1C10958 |
| 1C6651 |
| 24595 |
| 24597 |
| 25-15180 |
| 25-24597 |
| 312041R1 |
| 317M3921 |
| 44146 |
| 4P1667 |
| 5137690 |
| 5137699 |
| 5AF255 |
| 5AF355 |
| 5M5886 |
| 7EH 8620 A |
| 7M3921 |
| 82881 |
| 849140 |
| 88GB330P164 |
| 88GB353P164 |
| 8EL 8620 A |
| 8S1574 |
| A059296 |
| A17269 |
| AR93009 |
| B600K216 |
| B600T144 |
| BH-229 |
| BH-234 |
| D12729 |
| RECMF3595 |
| RECMF3600 |
| T24597 |
| T427202 |
| T427K202 |
| T427T223 |
| U501K207 |
| U6501T149 |
| V17X1530 |
| V6501T149 |
| 87 |
| 23603 |
| 41213 |
| 111 |
| 22 |
| 2515180 |
| BH234 |
| 9590 |
| BH229 |
| 6819 |
| 2524597 |
| S3213 |
| 7EH8620A |
| 8EL8620A |
| TR24597 |
