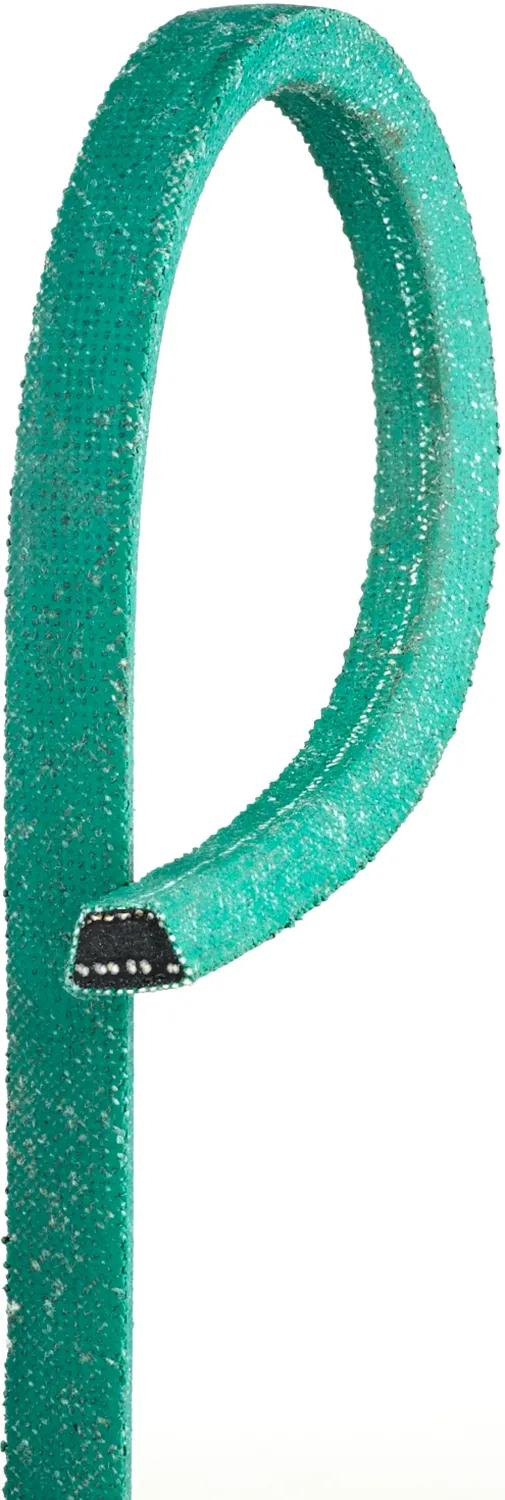

FHP Medium Horse-Power V-Belt, L: 67.15 in, W: 21/32 in

#GAT6967

Product Overview


GROW YOUR V-BELT SALES: Gates does more than just provide durable, OE-equivalent lawn and garden and light-duty application aftermarket parts. We provide our partners and distributors with the support, resources, and tools required to grow a business. Our PoweRated V-Belts provide self-service to customers, helping them select the right belt for the job, featuring 70 of our top-selling sizes, and making maximum use of your available floor space. And when you purchase the full assortment, we'll send you the display for free. OE-EQUIVALENT FOR OUTDOOR EQUIPMENT: From the largest agricultural seed planters to the smallest backyard leaf blowers, we've developed OE parts and equipment components with top brands in the outdoor equipment industry from around the world. When you equip your lawn and garden tools with Gates, you can trust your aftermarket solutions to have the same quality, function, and performance as the OEM assembly line.

See More
See Less

Features & Benefits


  • Designed with bareback construction for smooth clutching on shock loaded, backside-idler-driven equipment
  • Distinct green color bareback low friction wrapping provide smooth clutching operation
  • Low cord positioning in thin profile gives extreme flexibility
  • Fabric reinforcement on the bottom ensures high crack resistance if back idler is used
  • Aramid Tensile Cords combine limited stretch with extraordinary strength and durability
  • PoweRated V-Belts can be substituted for equivalent sizes of Gates Truflex V-Belts
  • Meets RMA oil and heat-resistant standards, but not for static conductivity
  • PoweRated belts do not meet RMA requirements for static conductivity.
  • PoweRated belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used.

Specifications


Angle 37 deg
Belt Top Width 5/8 to 3/4 in (1.6 to 1.91 cm)
Construction Wrapped
Length 67 in
Material Aramid
Notched No
# of Grooves 1
Recommended Sheaves Light-Duty Sheaves-Bored-to-Size, Light-Duty Sheaves-Bushed, Light-Duty Sheaves-Variable Pitch
Section 5L
Length Range 65 to 69.99 in
Temperature Range -22°F to 140°F (-30°C to 60°C)
Type FHP Medium Horse-Power V-Belt
Weight 0.63 lb (0.29 kg)
Width 21/32 in (1.68 cm)

Interchanges & Equivalent parts:


1225944
1012850
108576
109-205
1108576
115665
12-5194
12-7612
123860
16R1700
16RL1700
254155
258-067
27118
272235
27244P
27454P
285322
285588
2M067
3030005284736
320009059
342720
343196
3926967
4670
48609
5070A32
5880017
5880018
5881269
58X670
5H57965A670
5H670
5L670
5L670P
5L670W
5LK670
620276
6607161720
7-5H670
75-567
75-867
7540151
7540486
7540486A
754151
75670
761817517010
81B064
8431
90744
954-0151
9540486A
A-5L670
AE1637
B5L-670
BT115
BT8X21
C4A36
DB5L670
FB67
K810236416
KR20BC067
L567
LB670B
LG58670
MS392435L670
PS203
R10852
XDV58-670
9540486
84236967
