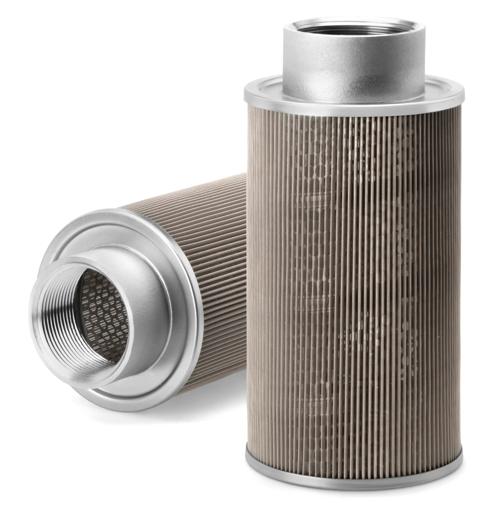

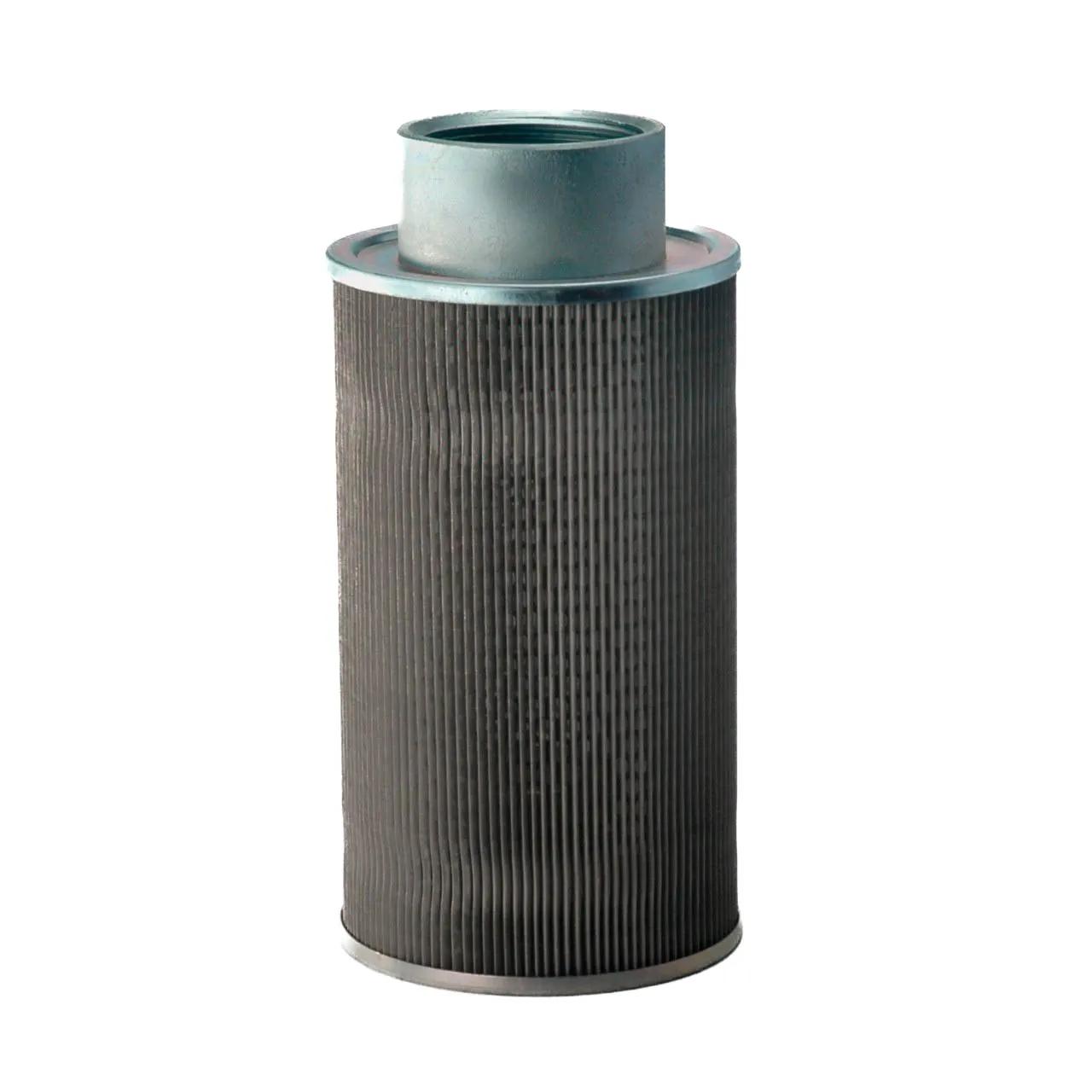

Hydraulic Strainer L: 10,1 in, OD: 5,13 in
#DONP173916
Product Overview
HYDRAULIC FILTER, STRAINER
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting LR | 2,91 psi (0,2 bar) |
| Diameter Range | 5 à 5.99 po |
| Efficiency Beta 2 | 150 Micron |
| Efficiency Beta 200 (Micron) | 9 Micron |
| Efficiency Beta 2 (Micron) | 150 Micron |
| Length | 10-3/32 in (25.63 cm) |
| Outer Diameter | 5-1/8 in (13.03 cm) |
| Length Range | 10 to 10.99 in |
| Style | Strainer |
| Thread Size | 2 1/2 NPT |
Interchanges & Equivalent parts:
| HF6265 |
| SH56315 |
| 2057928 |
| SFE280G125A10BYP |
| SEC75212100RV3 |
| SS1D8B1AP |
| 7627961 |
| SS251003 |
| SS2121003 |
| TFS2503 |
| OF3203RV10 |
| SS2503 |
| 2502972 |
| AS75212100RV3 |
| SE75100RB3 |
| ST75100RB3 |
| FST1251RX |
| 811906500 |
| HF173916 |
| DN P173916 |
| DN P173916 |
| 1300028 |
| 0750896 |
| 750896 |
| 2191-P173916 |
| BD7-3916 |
| DONP173916 |
| HF6265FLG |
| S26F125TA |
| F27C150B |
| SN75100B3 |
