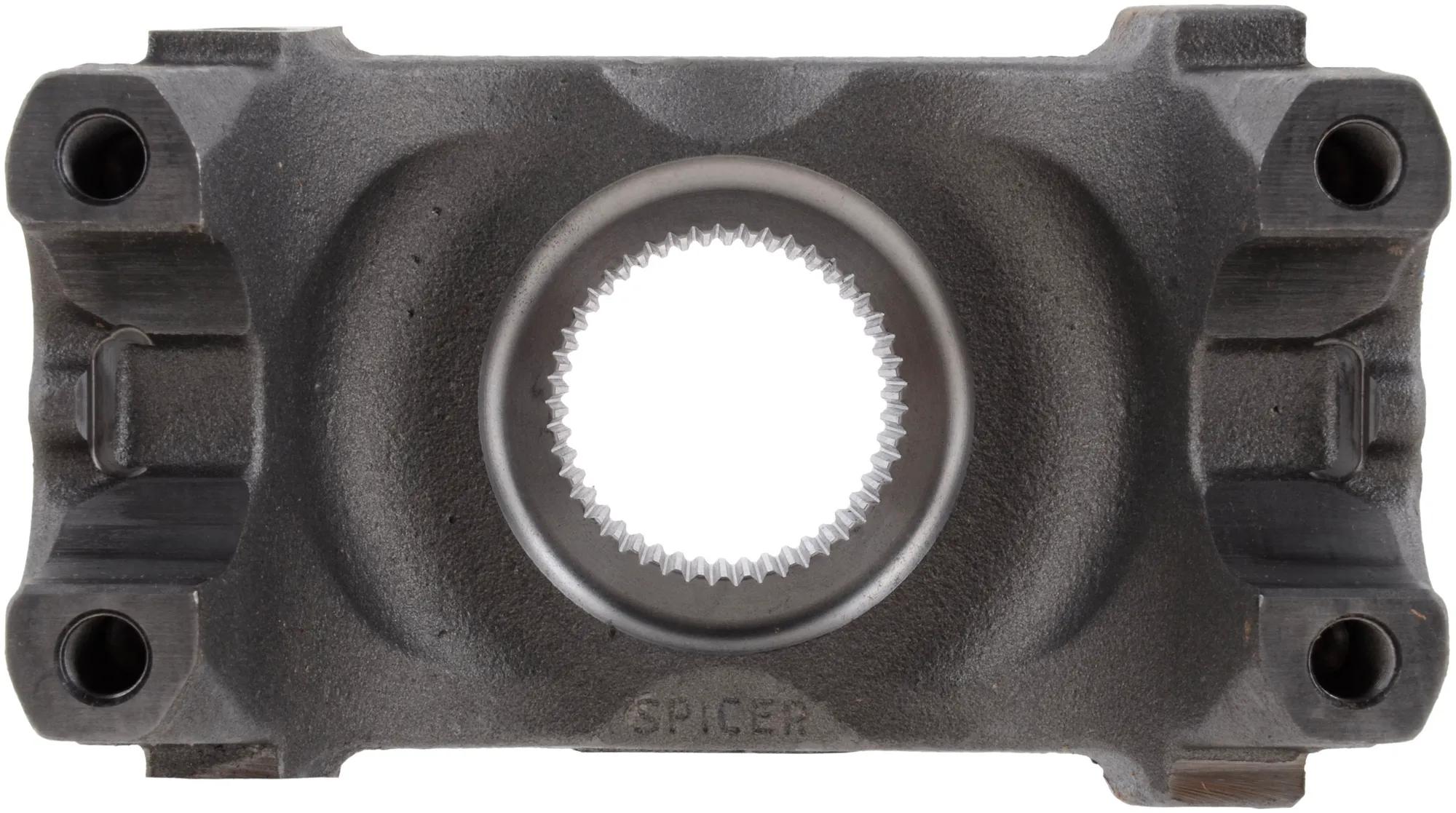

Spicer 1810 Series Splined Hole Drive Shaft End Yoke, Steel, HR Style, 2.875 in Hub Diameter, 7.643 in Outside Dimension
#SPI6.5-4-3591-1
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft End Yoke, Splined Hole, Steel, 5.5 in Center Line to End Hub, 2.875 in Hub Dia, 30 deg Joint Angle, 2.75 in Length Thru Hole, 7.643 in Outside Yoke, 1810, 46 Spline Count, 1.938 in Yoke Bearing Dimension, HR Yoke, 2.39 in Length
Specifications
| Diamètre de chapeau de roulement | 1-15/16 po |
| Diamètre du moyeu | 2-7/8 po |
| Angle d'articulation | 30 degrés |
| Longueur | 2,39 po |
| Matériel | Acier |
| Quantité | 1 |
| Séries | 1810 |
| Nombre de cannelures | 46 |
| Type | Trou cannelé |
| Code VMRS | 22003072 |
| Poids | 16,62 lb |
| Style de chape | HR |
| Type de chape | Rond complet |
| Center Line to End Hub | 5.5 in |
| Length Thru Hole | 2.75 in |
| Dimension extérieure de la mâchoire | 7.643 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Culasse d'extrémité d'arbre de transmission |
Interchanges & Equivalent parts:
| 1660417C1 |
| 65435911 |
| N65-4-3591-1 |
| 181MU51P41 |
| 2104-65435911 |
| 30010-3207 |
| 6.5 4 3591 1 |
| 65435911-SP |
| 65435911S |
| D65435911 |
| E65435911 |
| E8HZ 4865-A |
| N6.5-4-3591-1 |
| S-B431 |
| SD65435911 |
| SP 6.5 4 3591 1 |
| SP 65435911 |
| TWD65435911 |
