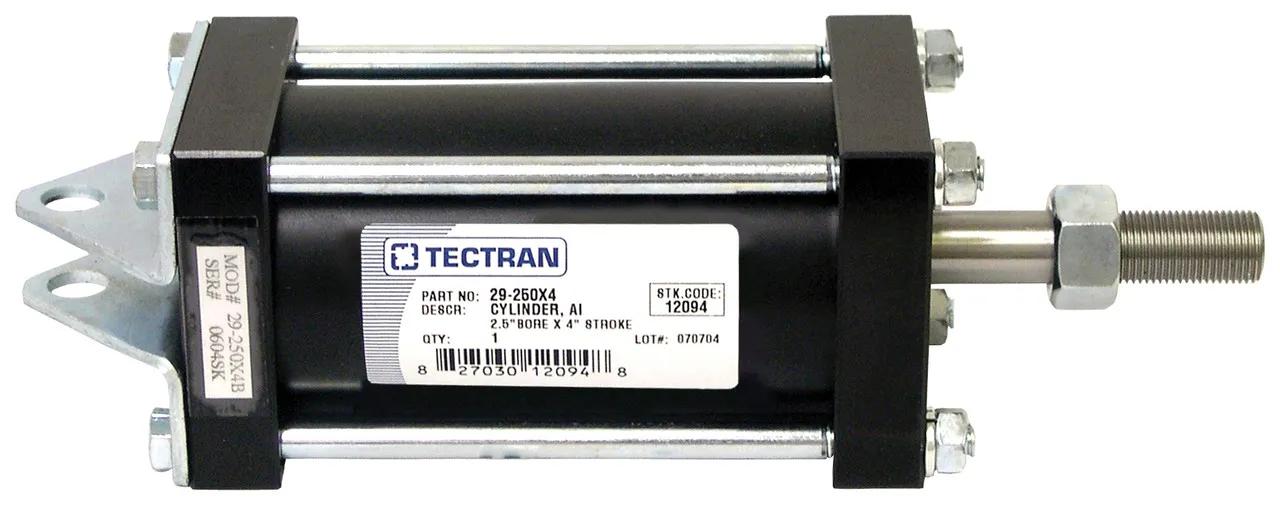

Explore Tectran's Heavy Duty Tailgate Air Cylinders-Robust Construction: These tailgate air cylinders feature a heavy-duty aluminum cylinder housing that offers excellent corrosion resistance-Stainless Steel Piston Rod: Equipped with a heavy-duty stainless steel piston rod for durability-Piston Seal: The Buna-N piston seal ensures reliable performance-Additional Parts Required: Please note that the rear pivot pin (½") and piston rod clevis assembly are not included and must be ordered separately-Air In - Air Out: These cylinders are designed for air in and air out operation-Port Size: Features two ports with a size of 1/4" NPT each-Rod Diameter: Available in two options: 5/8" (2.5" bore) or 3/4" (3.5" bore)-Rod Thread Size: The rod thread size is 5/8" - 18 NF x 2"-Recommended Operating Pressure: It is recommended to operate these cylinders at 100 psi-Maximum Operating Pressure: The maximum operating pressure should not exceed 150 psiTectran's Heavy Duty Tailgate Air Cylinders are designed to provide robust and reliable performance, making them suitable for various applications in heavy-duty vehicles.
