Débitmètre numérique K24 pour FED, 1 unité

#RCM55-000-16

Sommaire du produit

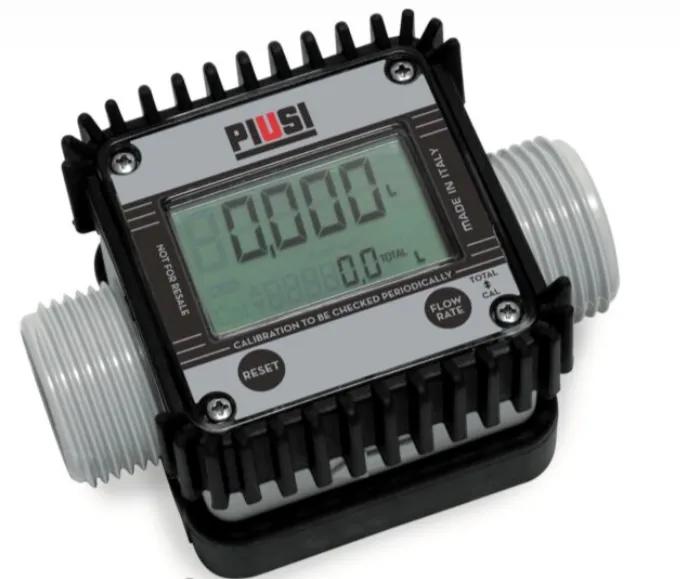

The PIUSI DEF K24 Digital Flow Meter, with an aluminum body and a polypropylene turbine, is used for diesel monitoring and management of low-viscosity fluid dispensed. Features a display that can be applied in different positions to help facilitate reading and can be used in almost any working condition with its sturdy housing and sealed internal electronic board. The pulse type is a single-channel, reed switch with an electronic LCD board that shows a partial of 5 digits from 0.1 to 99999, for a total of 6 digits from 1 to 999999 total and is resettable. The display shows the supported flow rate, up to a maximum of 120 l/min. The meter guarantees accuracy of +/- 1% and if the metering turns out inaccurate, it can always be calibrated to ensure maximum precision. Features a pressure drop of leat than 0.43 psi at 32 GPM and a repeatability of 0.2%.

Caractéristiques et avantages

Rotatable display showing up to a maximum of 120 l/min and metering accuracy of +/- 1%.

Easily install in-line or at the end of the dispensing pipe and adjust to various positions.

Use this meter in virtually any working condition or application.

Ensure maximum precision with a guaranteed metering accuracy of +/- 1% and calibration.

Made for low-viscosity diesel exhaust fluid (DEF) monitoring.

Use AAA batteries. Install in-line or at the end of a dispensing pipe to monitor flow.

Spécifications

Application du produit

DEF K24

Interchanges et pièces équivalentes:

55-000-16
