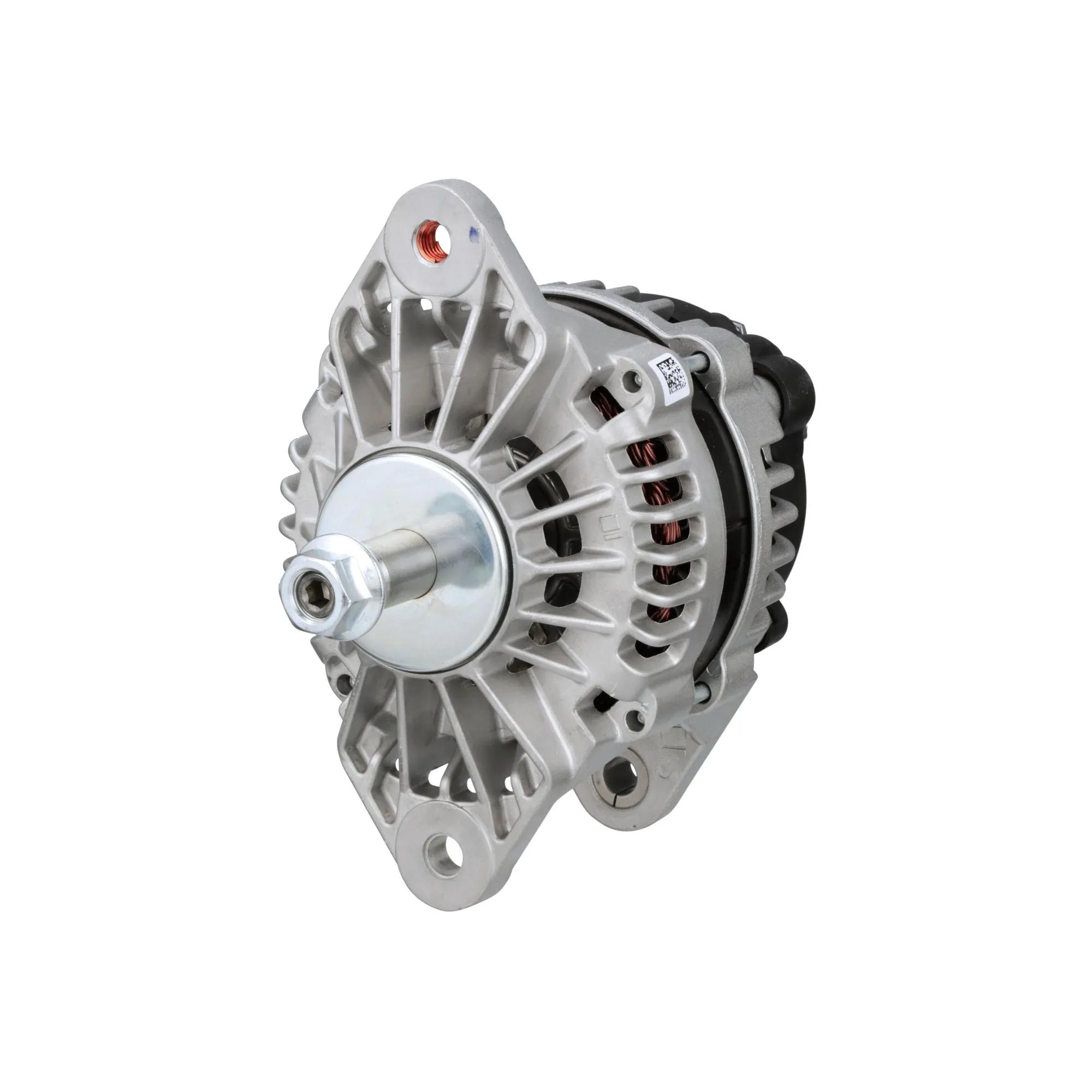

Delco Remy 24SI Heavy Duty Alternator, 12V, 160 Amp, J180 Hinge Mount, Dual Internal Fan Cooling
Product Overview
The Delco Remy 24SI alternator features a dual internal fan (DIF) design that provides maximum cooling technology. Dual fans increase air circulation over the alternator electronics, allowing it to run at lower temperatures which improves operating efficiency and durability. Unlike single external fan designs, this reduces operating temperature and enhances unit longevity. It delivers superior output of 160 amps at road speed and 100 amps at idle, making it ideal for medium and heavy-duty trucks.Alternator, Heavy Duty, 5/16 B+ Output Terminal, 160 A Current Rating, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 24SI, J180 Hinge Mounting, Negative Polarity, No Remote Sense Terminal, Clockwise Rotation Direction, 12 V System, 105 °C Temperature Rating
Features & Benefits
- Dual internal fan (DIF) design provides maximum cooling technology
- Superior output producing 160 A at road speed and 100 A at idle
- Lightweight and compact size for simplified installation
Specifications
| Application | Camion MD/HD |
| Borne de sortie B+ | 5/16 po |
| Contient | (1) Alternateur, feuille d'instructions |
| Modèle | 24SI |
| Polarité | Négative |
| Terminal de télédétection | Non |
| Type | Robuste |
| Poids | 16.2 lb (7.35 kg) |
| Courant nominal | 160 A |
| Vitesse maximum | 10000 tr/min en continu, 12000 tr/min en intermittent |
| Configuration de montage | Montage à charnière J180 |
| Type de régulateur | Interne |
| Rotation Direction | Clockwise |
| System Voltage | 12 V |
| Temperature Rating | 105 °C |
| Product Category | Alternateur |
Interchanges & Equivalent parts:
| 3948721 |
| 85106374 |
| AL9960LH |
| DR 8600310 |
| DR 8600310 |
| DRA8600310 |
| RC ALT24H |
| 8600395 |
| 31001001075 |
| LIN110-555JHO |
