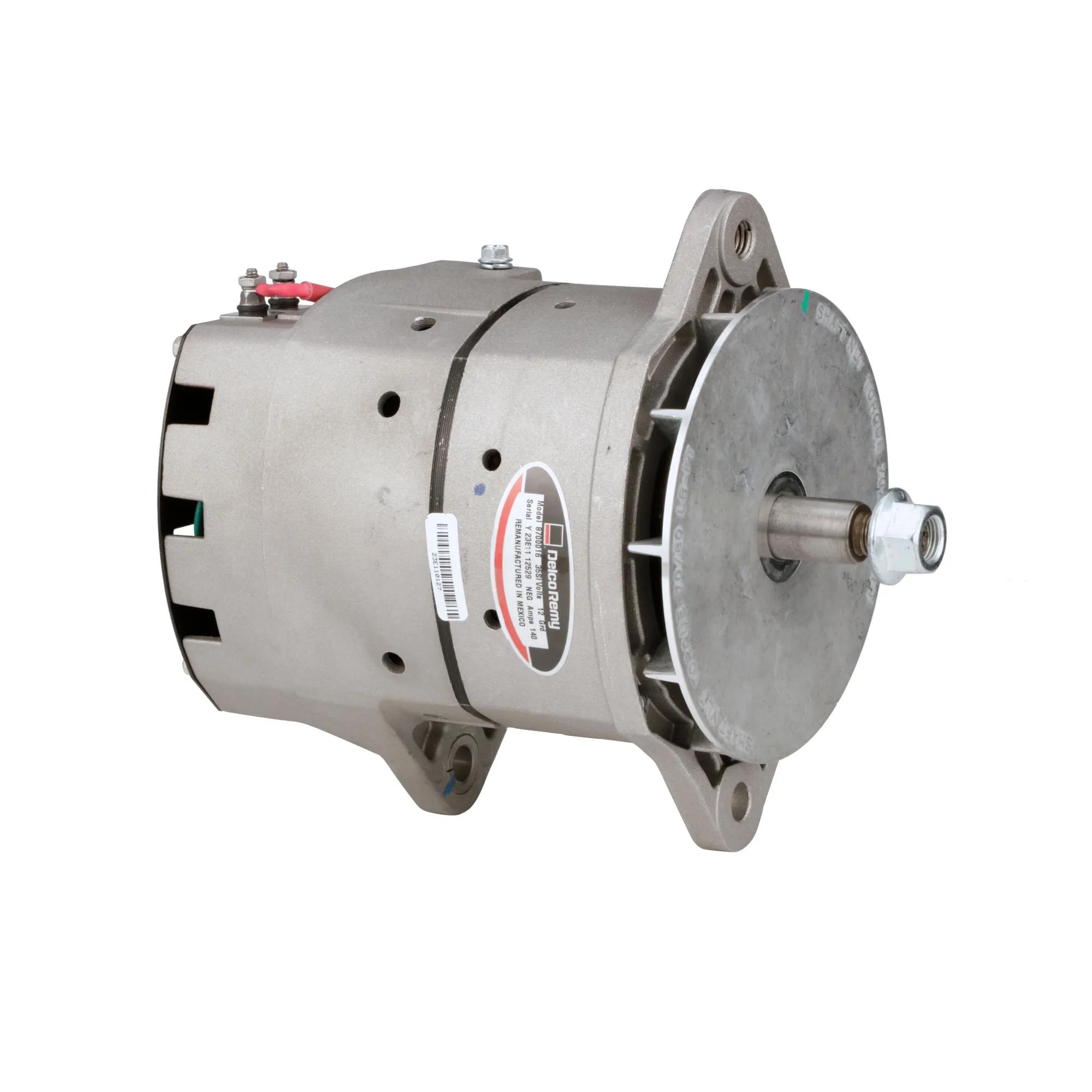

Delco Remy 35SI Remanufactured Alternator, 12V, 140 Amp, J-180 Hinge Mount, Bi-Directional Rotation
#DEC8700016
Product Overview
Alternator, 1/4 B+ Output Terminal, 140 A Current Rating, 0.68 Efficiency, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 35SI, J180 Hinge Mounting, Negative Polarity, Remote Sense Terminal, Clockwise or Counterclockwise Rotation Direction, 12 V System, 125 °C Temperature Rating
Features & Benefits
- Manufactured To Meet and/or Exceed Original Equipment Specifications of Functionality, Form & Fit.
- Equipped with remote sense which can reduce battery charge time by 50%. Remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery for a full charge between vehicle stops.
- OE approved, assuring OE quality and performance for aftermarket replacements.
- Superior output producing up to 170 A at road speed and 100 A at idle.
- Warranty: new service: 3 year/350,000 miles.
Specifications
| Application | Heavy Duty |
| B+ Output Terminal | 1/4 in |
| Contents | (1) Alternator, Instruction Sheet |
| Fan Type | External |
| Ground Terminal | Negative |
| Manufacturer | Delco Remy |
| Model | 35SI |
| New or Remanufactured | Remanufactured |
| # of Grooves | Pulley Not Included |
| Polarity | Negative |
| Remote Sense Terminal | Yes |
| Terminal | #10, Pin |
| Weight | 25.4 lb |
| Current Rating | 140 A |
| Efficiency | 0.68 |
| Maximum Speed | 10000 rpm Continuous, 12000 rpm Intermittent |
| Mounting Configuration | J180 Hinge |
| Regulator Type | Internal |
| Rotation Direction | Clockwise or Counterclockwise |
| System Voltage | 12 V |
| Temperature Rating | 125 °C |
| Product Category | Alternator |
Interchanges & Equivalent parts:
| 10459141 |
| 10459144 |
| 10459612 |
| 8700046 |
| DEC10459612 |
| DEC10459144 |
| DEC10459141 |
| 90014511 |
| 90014511N |
| ALT3652 |
