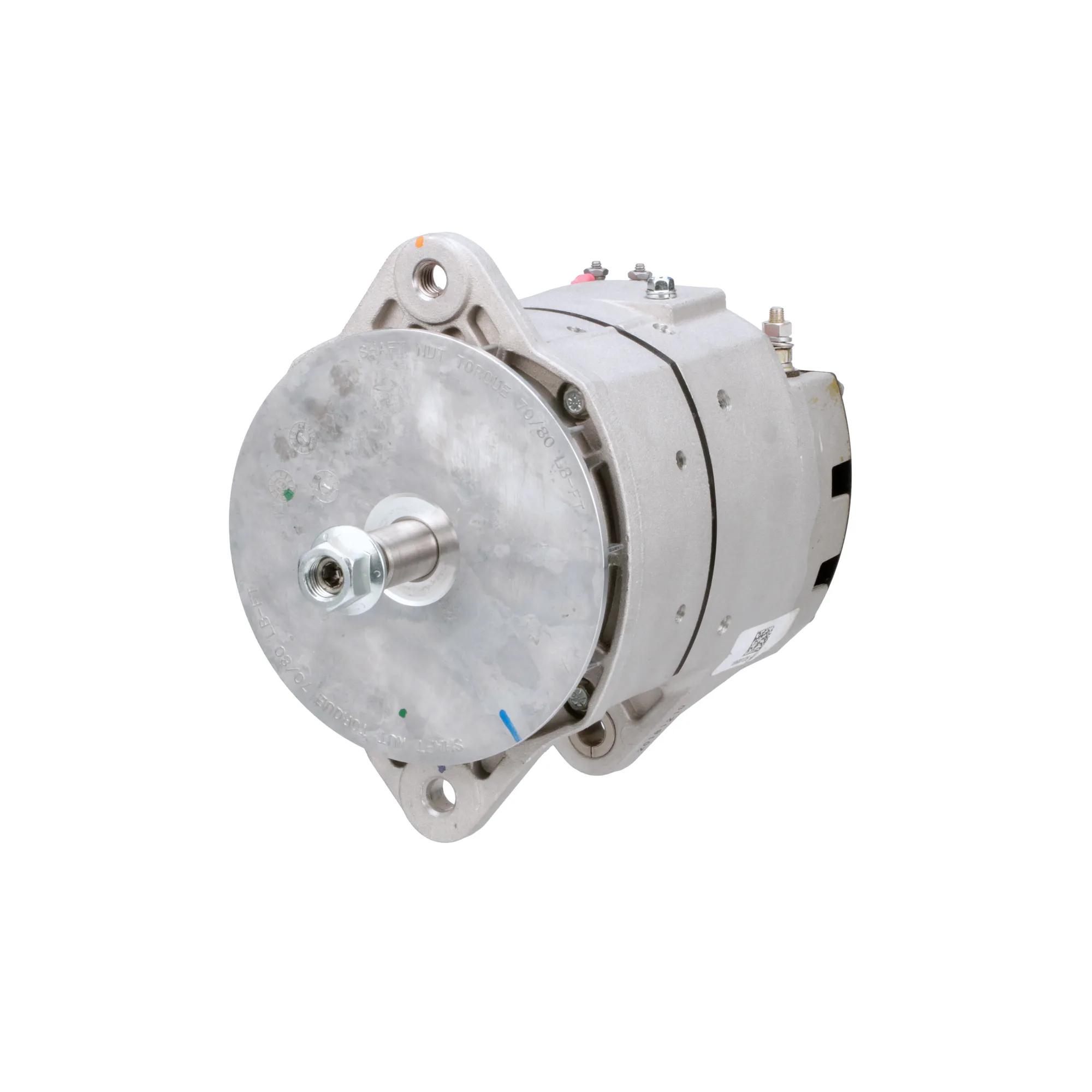

Delco Remy 36SI Brushless Alternator, New, 12V, 170 Amp, J-180 Hinge Mount, Heavy Duty
Product Overview
The Delco Remy 36SI brushless alternator is a heavy-duty, new unit designed for reliable performance in demanding applications. It features a 12-volt system with a 170-amp output, capable of producing up to 170 amps at road speed and 100 amps at idle. The alternator supports bi-directional rotation (clockwise or counterclockwise) and includes an internal voltage regulator. Equipped with remote sense technology, it reduces battery charge time by up to 50% by compensating for voltage drops to ensure optimal battery charging. The J-180 hinge mount and negative polarity make it compatible with a wide range of heavy-duty vehicles. This OE-approved alternator offers high efficiency for improved fuel economy and durability with fewer moving parts due to its brushless design.Alternator, Heavy Duty, 1/4 B+ Output Terminal, 170 A Current Rating, 0.68 Efficiency, 10000 rpm Continuous, 12000 rpm Intermittent Maximum Speed, Model 36SI, J180 Hinge Mounting, Negative Polarity, Remote Sense Terminal, Clockwise or Counterclockwise Rotation Direction, 12 V System, 125 °C Temperature Rating
Features & Benefits
- Brushless advantage: fewer moving parts means less wear and longer life
- Equipped with remote sense which can reduce battery charge time by 50%; remote sense utilizes a second wire that reads the actual voltage at the battery, signaling the alternator to boost output to compensate for voltage drop, ensuring 14 V at the battery for full charge between stops
- OE approved, assuring OE quality and performance for aftermarket replacements
- Superior output producing up to 170 A at road speed and 100 A at idle
- High efficiency = fuel economy
Specifications
| Application | Heavy Duty |
| B+ Output Terminal | 1/4 in |
| Contents | Alternator, Instruction Sheet |
| Fan Type | External |
| I Terminal | #10 |
| Manufacturer | Delco Remy |
| Model | 36SI |
| New or Remanufactured | New |
| Polarity | Negative |
| Remote Sense Terminal | Yes |
| R Terminal | 10 |
| Terminal | No. 10 |
| Type | Heavy Duty |
| Weight | 25.4 lb |
| Current Rating | 170 A |
| Efficiency | 0.68 |
| Maximum Speed | 10000 rpm Continuous, 12000 rpm Intermittent |
| Mounting Configuration | J180 Hinge |
| Regulator Type | Internal |
| Rotation Direction | Clockwise or Counterclockwise |
| System Voltage | 12 V |
| Temperature Rating | 125 °C |
| Product Category | Alternator |
