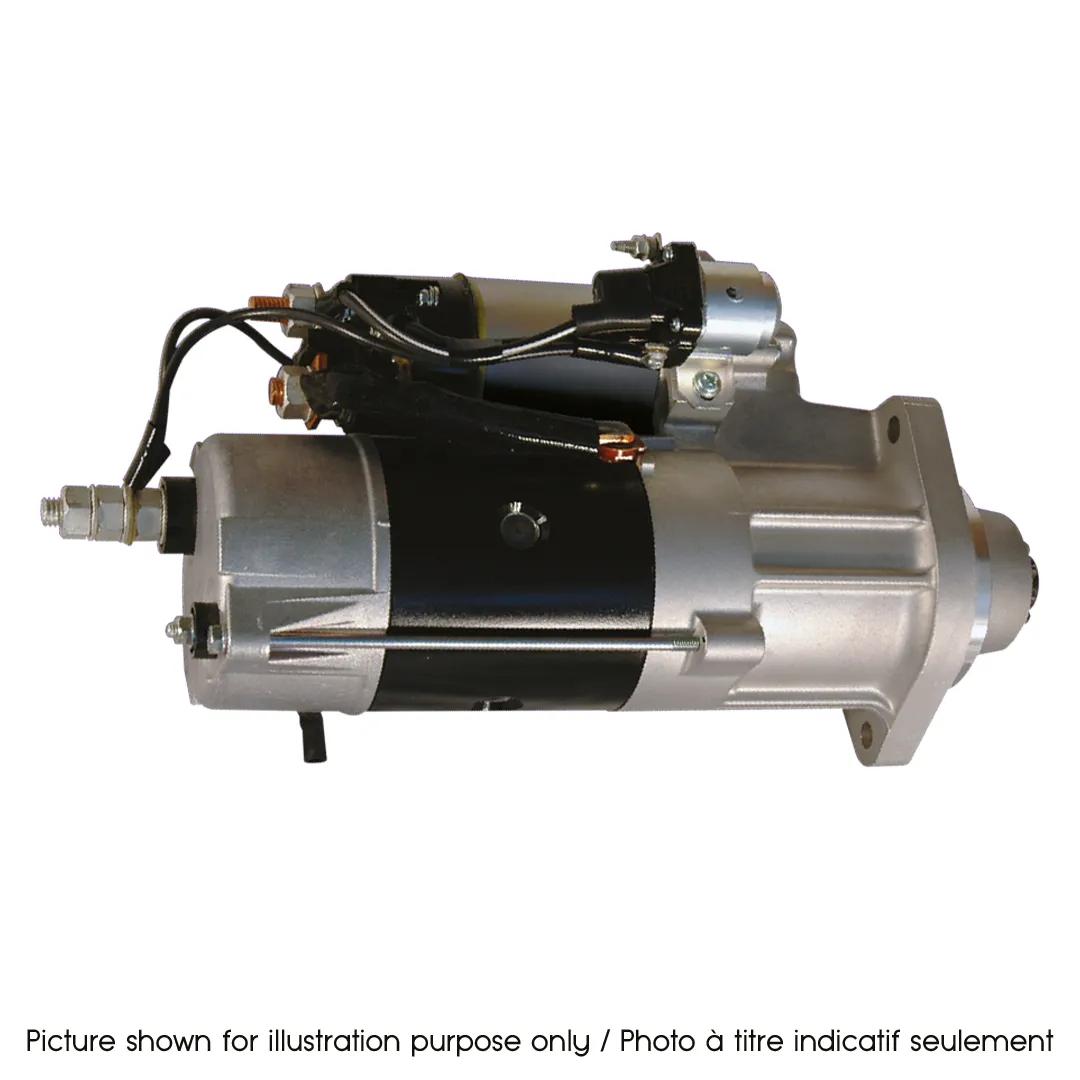

Démarreur 39MT, Neuf, V: 12, Dents: 11, PGR
#MELPC1479
Spécifications
Application | Kenworth UNIQUEMENT CAT C15 / C15 ACERT 1998 - 2006 ; Peterbilt & Kenworth CAT C9 / C10 / C12 1998 - 2003 ; Peterbilt & Kenworth CAT C11 ACERT 2004 - 2006; Peterbilt & Kenworth CAT C9 / C13 ACERT 2004 - Actuel ; Peterbilt & Kenworth CAT C15 / CAT C15 ACERT 2007 - 2010 ; Peterbilt & Kenworth Cummins ISX / ISM / N14 1998 - Actuel |
Bus Tooth Count | 11 - Trous de montage ,66 |
Contient | (1) Démarreur assemblé |
GND Stud | Oui |
PRM max. (Protection recouvrant la manivelle) | Oui |
IMS | Oui |
KW Rating | 5,5 kW |
Modèle | 39MT |
Mount Hole 1 (MM) | 43/64 po (1,7 cm) |
Mount Hole 2 (MM) | 43/64 po (1,7 cm) |
Mount Hole 3 (MM) | 43/64 po (1,7 cm) |
Mount Type | SAE 3 |
Note | commutateur IMS ; Protection contre la manivelle ; Boîtier d'extrémité d'entraînement rotatif |
Number of Mount Holes | 3 |
Number of Teeth | 11 |
OCP | Non |
Over Crank Protection | Oui |
Emballage | Boîte |
Quantité par pallette | 32 |
Pinion OD | 2-13/64 po (5,59 cm) |
Pinion Pitch | 6/8 |
Polarity | Isolé |
Rotation | CW-sens horaire |
Solenoid Position | 82 deg |
Teeth | 7/16 po (1,12 cm) |
Type | PGR-Planetary Gear Reduction |
Unit Pack | 1 |
Poids | 33 lb (14,97 kg) |
Neuf ou remanufacturé | Neuf |
