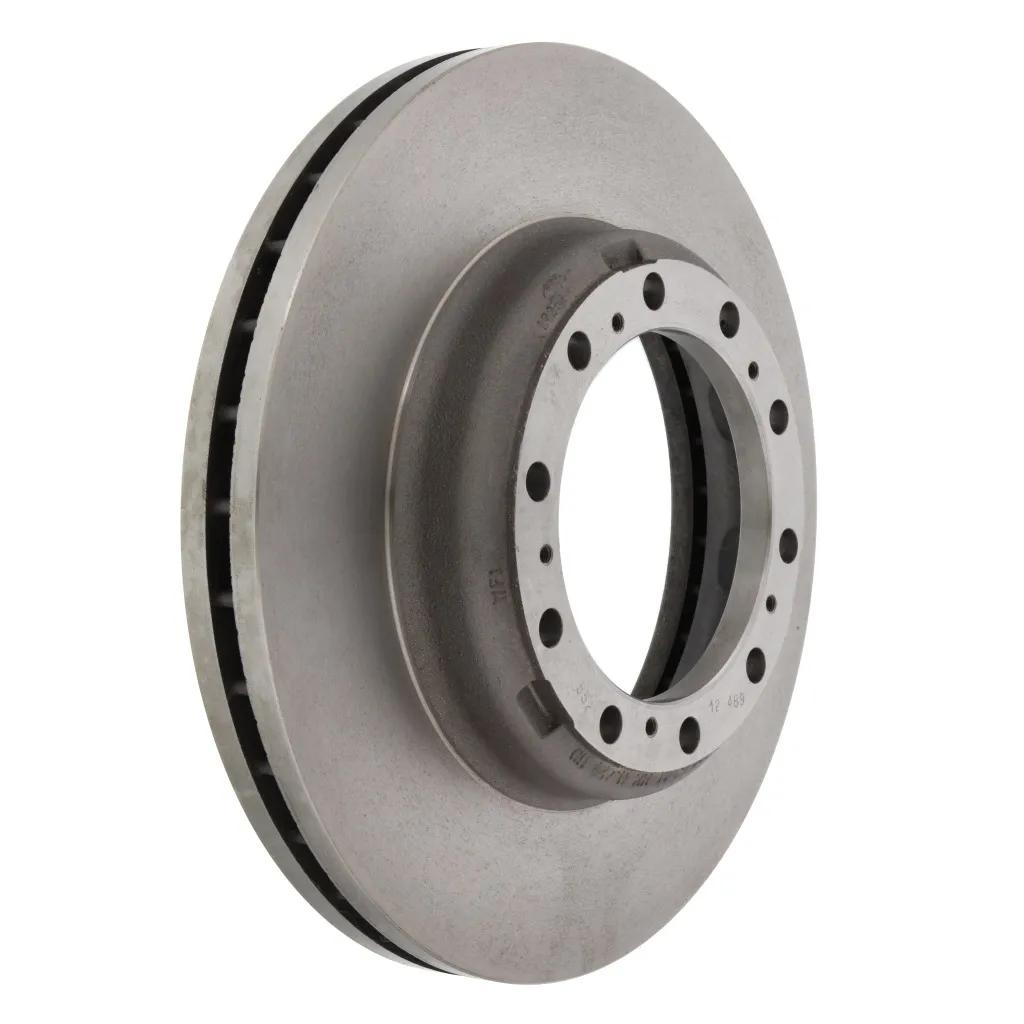

Brake Rotor, Hat Shaped
#ROC23123489002
Specifications
| ABS | Yes |
| Application | Several Medium Duty Vehicle Sizes and Name Plates with Spoke Wheel |
| Bolt Circle Diameter | 7-1/4 in (18.42 cm) |
| Brake Surface Width | 1-7/16 in (3.66 cm) |
| Diameter | 15-3/8 in (39.07 cm) |
| Diameter Range | 15 to 15.99 in |
| Discard Thickness (in.) | 1-27/64 in (3.62 cm) |
| Height | 6-5/32 in (15.64 cm) |
| Hole Size | 9/16 in (1.44 cm) |
| Length | 15-61/64 in (40.53 cm) |
| New Disc Thickness | 1-35/64 in (3.93 cm) |
| Notes | 5 Tapped Holes for ABS Mounting GMC Applications; 10 Hole Hat Shaped 17,500, 19000 lb RA |
| Number of Bolt Holes | 10 |
| Pilot Diameter | 6 in (15.24 cm) |
| Rotor Depth | 3-13/32 in (8.66 cm) |
| Type | Hat Shaped |
| UPC | 680502063484 |
| VMRS Code | 013-017-001 |
| Weight | 98 lb (44.44 kg) |
Interchanges & Equivalent parts:
| 56930R |
| EUCE-11311 |
| GUND6133 |
| GUND6183M |
| 23123489002 |
| 54771 |
| TDA23123489002 |
| 12388047 |
| 141272BXW |
| 23-123489-002 |
| 23123489 |
| 23123489005 |
| 54301F |
| 54771F |
| 56995 |
| 8235-23123489002 |
| D6151 |
| E12613006 |
| TDA 23123489002 |
