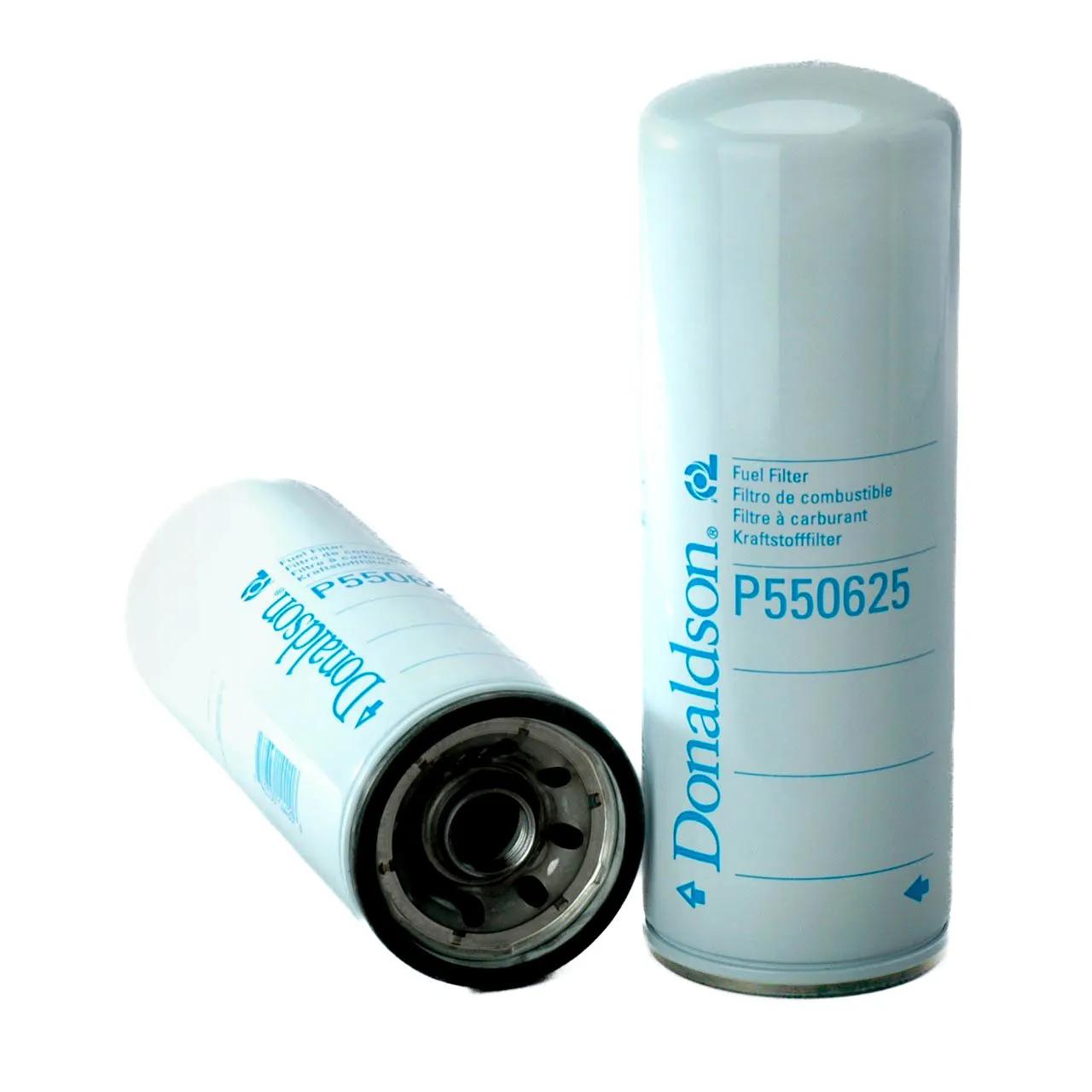

Donaldson Fuel/Water Separator Spin-On Filter, Secondary, 10.43 in Length, 3.69 in OD, 1-14 UN Thread, Cellulose Media, 3 Micron
#DONP550625
Product Overview
Fuel Filter, Secondary, Cellulose Media, Collapse Burst Pressure: 100 psi, Filter Rating: 3 micron, 3.05 in Gasket I.D., 3.58 in Gasket O.D., 3.69 in OD, Standards: SAE J1985, Spin-On, 1-14 UN Thread, For CATERPILLAR 1R0762, 10.43 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Application | CATERPILLAR 1R0762 |
| Dianètre intérieur du joint | 3,05 po (77,5 mm) |
| Diamètre extérieur du joint | 3,58 po (91 mm) |
| Longueur | 10-7/16 po |
| Diamètre extérieur | 3,69 po (93,73 mm) |
| Taille du filetage | 1-14 UN |
| Collapse Burst Pressure | 100 psi |
| Filter Rating | 3 microns |
| Filter Type | Secondary |
| Thread Size | 1-14 UN |
| Media Type | Cellulose |
| Standards | SAE J1985 |
| Product Category | Filtre à carburant |
Interchanges & Equivalent parts:
| ALG2196 |
| BF7753 |
| 86640 |
| J8620625 |
| FF5624 |
| P9265 |
| FF1129 |
| H264WK |
| SN55429 |
| LFF5804 |
| WK9058 |
| 3640 |
| SK3286 |
| 33640 |
| 533640 |
| 95640 |
| 1165436 |
| 1R0762 |
| 3632040 |
| 6003723 |
| 4587258 |
| 55072323 |
| EN1006 |
| FF550625 |
| 860166559 |
| ABP N03 F50625 |
| 0003632041 |
| 3222343173E9 |
| 29148659E9 |
| 2191-P550625 |
| DONP550625 |
| FF5624FLG |
| HLC1124702 |
| DN P550625 |
| DN P550625 |
| DF30273 |
| P6446 |
| 3632041 |
