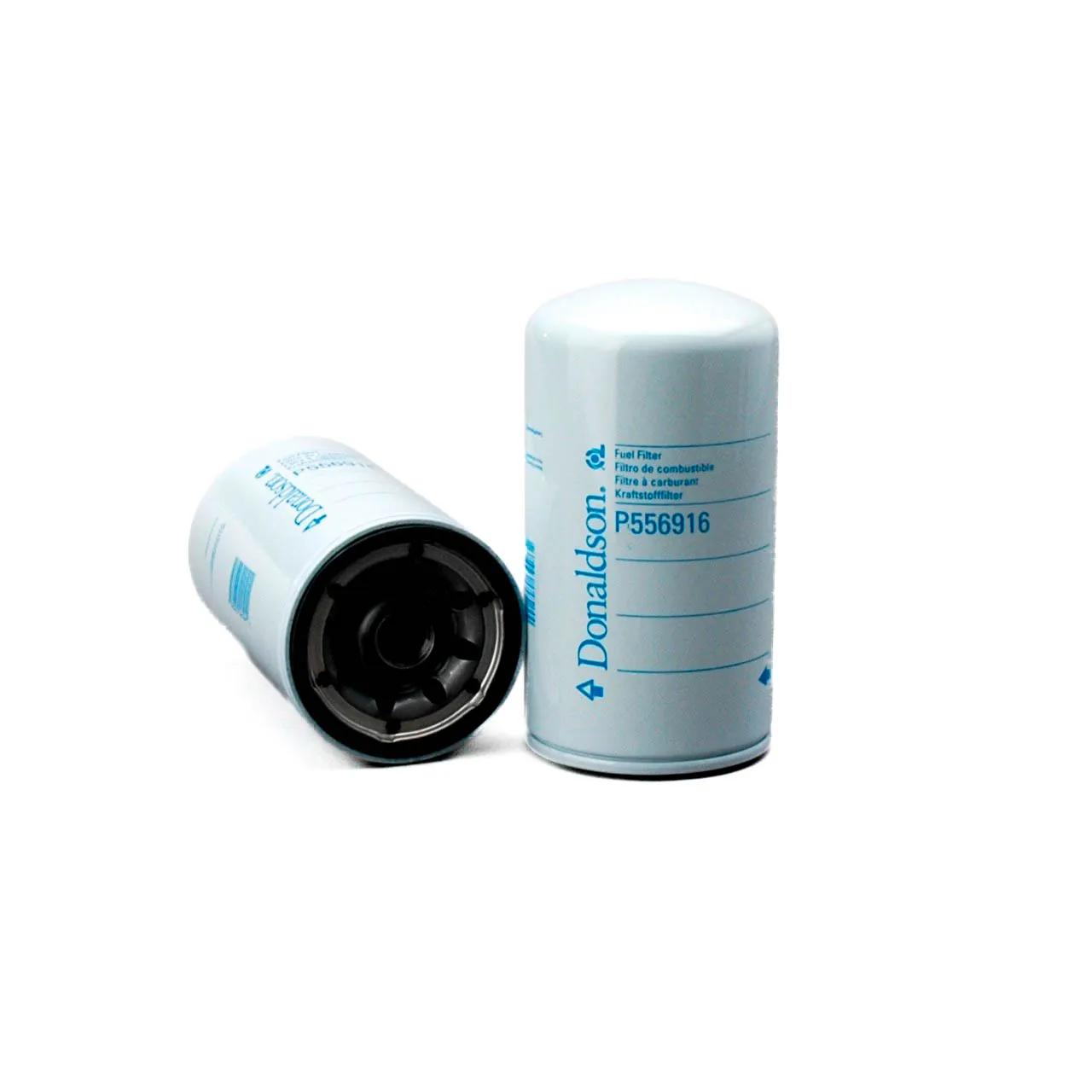

Donaldson Fuel/Water Separator Spin-On Filter, Secondary, 6.86 in Length, 13/16-12 UN Thread, 3.66 in OD, Cellulose Media, 9 Micron
#DONP556916
Product Overview
Fuel Filter, Secondary, Cellulose Media, Collapse Burst Pressure: 75 psi, Filter Rating: 9 micron, 3.05 in Gasket I.D., 3.39 in Gasket O.D., 3.66 in OD, Standards: SAE J1985, Spin-On, 13/16-12 UN Thread, 6.85 in L
Features & Benefits
- Donaldson delivers a full line of aftermarket fuel, lube, coolant and air intake filters, hydraulic and bulk tank filtration – plus exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Gasket ID | 3.05 in (77.5 mm) |
| Gasket OD | 3.39 in (86.2 mm) |
| Length | 6-55/64 in |
| Outer Diameter | 3.66 in (92.97 mm) |
| Style | Spin-On |
| Thread Size | 13/16-12 UN |
| Collapse Burst Pressure | 75 psi |
| Filter Rating | 9 micron |
| Filter Type | Secondary |
| Thread Size | 13/16-12 UN |
| Media Type | Cellulose |
| Standards | SAE J1985 |
| Product Category | Fuel Filter |
Interchanges & Equivalent parts:
| PF206 |
| ABPN10GFF5206 |
| ABPN10GFF5227 |
| BF581 |
| BF5810 |
| BF5810B |
| BF581B |
| BF7612 |
| BF7640 |
| VF581 |
| 86120 |
| 86120MP |
| FP816F |
| HF513 |
| LFP816F |
| PF816F |
| J8620916 |
| 1147 |
| 9302 |
| FFR85206 |
| FF206 |
| FF5206 |
| FF5227 |
| FFR8206 |
| FFR85227 |
| NF202 |
| LFP816FN |
| P1147 |
| P1147A |
| P1147G |
| P1147GFP |
| P3823 |
| PS8479 |
| GP27 |
| GP27M |
| GP916F |
| 993A |
| FF993 |
| A16008 |
| HDA16008 |
| SN206 |
| L62 |
| LFP816 |
| H180WK |
| F184 |
| F184A |
| KF184A |
| LFF3291 |
| WK95012 |
| 4097 |
| FD767 |
| FD767FP |
| FG767 |
| 3120 |
| 3120MP |
| Z106 |
| Z106A |
| SFF6916 |
| SFF7613 |
| PS2206 |
| PSC139 |
| PF902 |
| T916 |
| T916D |
| T93 |
| TP816 |
| TP916 |
| TP916D |
| TP916L |
| 12916 |
| 29463 |
| 72526444 |
| SP885 |
| 23518482 |
| 23530707 |
| 9709001002 |
| 5540862500 |
| SL603100 |
| SWT603100 |
| 53501137 |
| 6438840 |
| E6694 |
| 853535034 |
| 300038100P12 |
| PER97 |
| 6694094 |
| F60097 |
| F65336 |
| FC6502 |
| FC7301 |
| SK3531 |
| 24097 |
| FC50010 |
| 543 |
| 95120 |
| 95120MP |
| SP433 |
| 591 |
| 469442C1 |
| 7722935 |
| 8T3910 |
| 2266562 |
| 3I0751 |
| 3I1218 |
| 3I1991 |
| 9Y4418 |
| 7255091600 |
| L305 |
| 1992214 |
| 3576061 |
| 949839 |
| 961985 |
| 42828002 |
| FF816 |
| AZF052 |
| Z129 |
| PM498 |
| 395 |
| WD395 |
| 23518530 |
| 25013261 |
| 25014342 |
| 155952 |
| 46 |
| 96242 |
| TP1324 |
| 10501020 |
| A97 |
