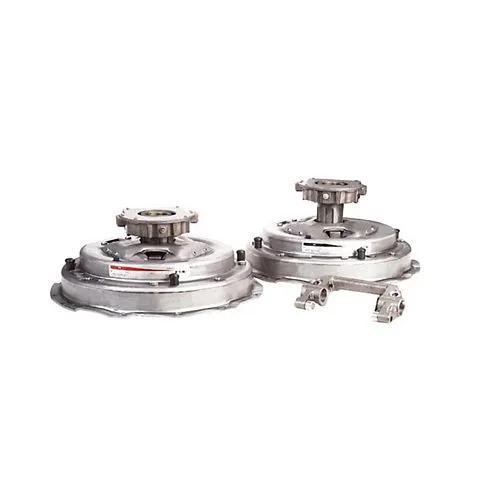

Eaton Clutch 1402 SOLO 2.00, Medium-Duty, 1050 ft-lb Torque
#EAT109504-20
Product Overview
Reliability and long life are key reasons why Fuller clutches are the top-selling clutches in North America. Eaton offers a complete line of push and pull type medium-duty clutches with application coverage from 100 to 330 horsepower engines and up to 1150 ft-lb of torque. This clutch assembly features a 14 in coaxial 8 spring disc with standard ceramic friction buttons, designed for Business Class M2 trucks with non-synchronized transmissions and hydraulic linkage. Application and adjustment guidelines ensure the reliability and long life expected from Fuller clutches.Clutch, Medium-Duty, Manual Transmission, 0.5 to 0.56 in Bearing Travel, 2 Discs, 10 Spline Count, 2 in Spline Dia, 1050 ft lb Torque Rating
Specifications
| Dimension de l'embrayage | 14 po |
| Engine Truck Models | Business Class M2 (with non-synchronized trans & hydraulic linkage) |
| Facing Material | Boutons en céramique standard |
| Pre-Damper | Type poussé et tiré |
| Spline Diameter | 2 po |
| Spline Diameter-Spline Count | 2 po (10 Cannelure) |
| Transmission Type | Manuelle |
| Type | Usage moyen |
| Application | Business Class M2 (avec transmission non synchronisée et tringlerie hydraulique) |
| Bearing Travel | 0.5 à 0.56 po |
| Damper Spring Count | 8 |
| Number of Discs | 2 |
| Spline Count | 10 |
| Torque Rating | 1050 pi lb |
| Product Category | Embrayage |
Interchanges & Equivalent parts:
| CCC109504-20 |
| 109504-20 |
