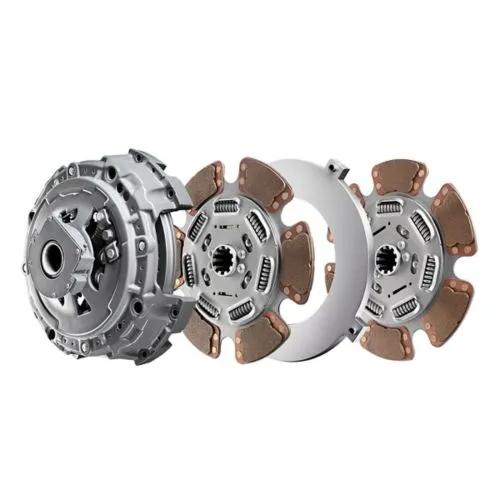

Eaton EverTough Manual Adjustment Heavy-Duty Clutch, 14 in Disc, 1400 ft-lb Torque, 17 in L x 17 in W x 7.25 in H
#EAT108050-59AM
Product Overview
Eaton has made the EverTough clutches even tougher. All self-adjust and manual adjust versions provide enhanced durability and ease of maintenance.Clutch, Manual Adjustment, Heavy-Duty, Manual Transmission, Ceramic Facing, 14 in Clutch, 8 Damper Spring Count, 7 in Flywheel Bore Opening, 4 Friction Pad Count, 2.00 in - 10 Input Shaft, 2 Discs, No Pre-Damper, 10 Spline Count, 2 in Spline Dia, 1400 ft lb Torque Rating, 7.25 in Height, 17 in Length, 17 in Width
Features & Benefits
- Three grease zerks for easier access during maintenance
- Wider thrust pads increase contact area, allowing use with wider fingers of hydraulic release systems and reducing failures due to improper adjustment
- EverTough Self-adjust: Eaton's proprietary self-adjusting technology maintains constant clutch adjustment and bearing release position, features an easy-to-see wear indicator, and eliminates 13 manual adjustments per truck on average
- EverTough manual-adjust: features proven Kwik-Adjust technology for faster, simpler clutch adjustments; Eaton PowerThread adjusting ring eliminates seizing and reduces adjustment movement by approximately half compared to standard rings
Specifications
| Dimension de l'embrayage | 14 po |
| Équivalent à | 108050-59B, 53509290, 107050-59B |
| Matériau de parement | Céramique |
| Hauteur (pc.) | 7,25 po |
| Taille de l'arbre d'entrée | 2,00 po - 10 |
| Longueur (po) | 17 |
| Nombre de disques (EA) | 2 |
| Pré-amortisseur | Non |
| Type de desserrage | Traction |
| Diamètre de spline (po) | 2 po |
| Diamètre de cannelure - Nombre de cannelures | 2 po (10 Cannelure) |
| Type de transmission recommandé | Manuelle |
| Type | Réglage manuel, Robuste |
| CUP | 840379300918 |
| Poids | 107 lb |
| Poids (lb) | 107 |
| Largeur (po) | 17 |
| Dimension de l'amortisseur | Amorti coaxial |
| Nombre de ressorts d'amortisseur | 8 |
| Ouverture de l'alésage du volant moteur | 7 po |
| Nombre de patins de friction | 4 |
| Hauteur | 7,25 po |
| Longueur | 17 po |
| Nombre de disques | 2 |
| Nombre de cannelures | 10 |
| Torque Rating | 1400 pi-lb |
| Width | 17 po |
| Product Category | Embrayage |
Interchanges & Equivalent parts:
| HDO108050-59 |
| C10805059MO |
| CCC108050-59AM |
| 108050-59AM |
