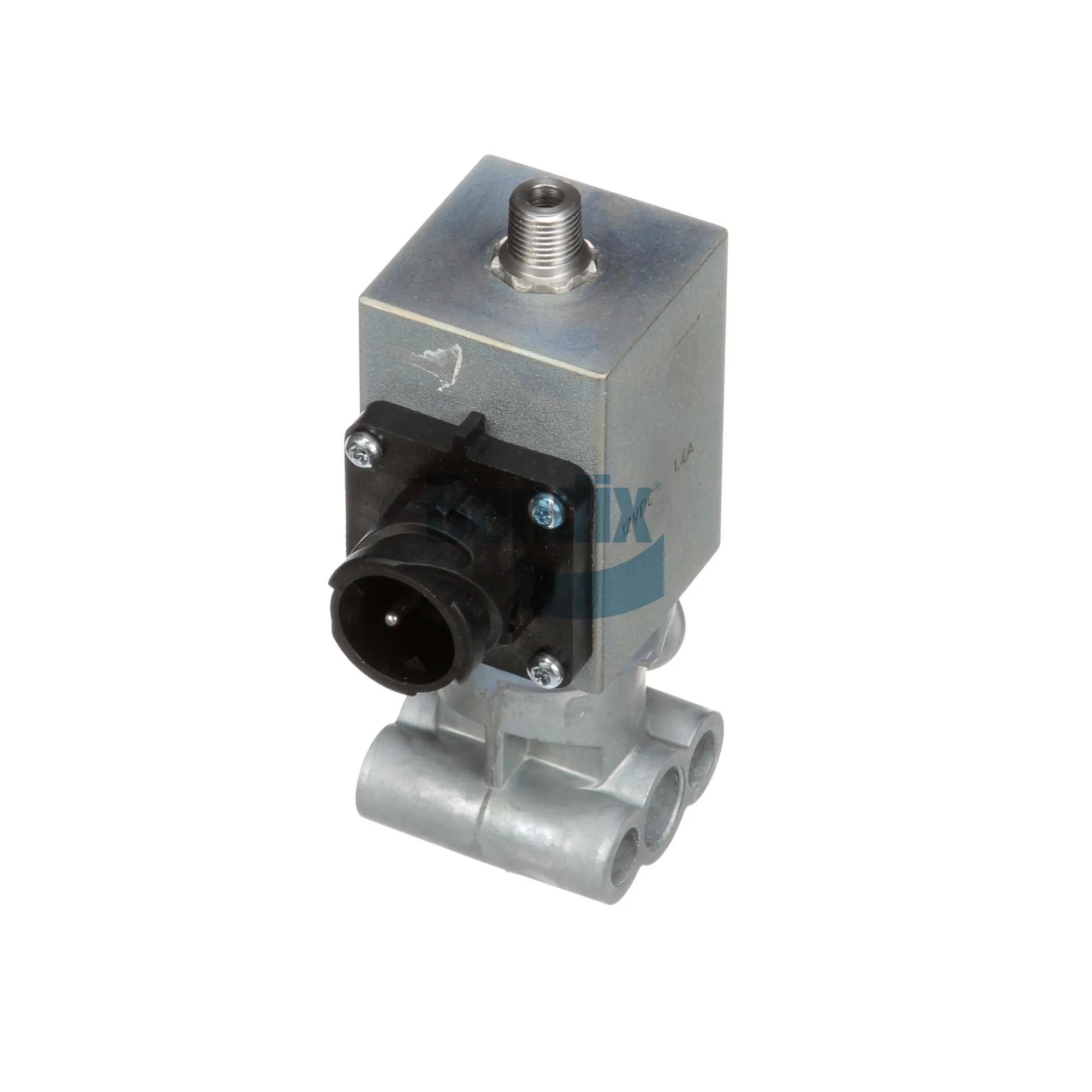

Bendix AT-3 Solenoid Valve, 2-Way, 12 VDC, 1/4-18 FNPT Inlet & Outlet, 1.4 A
#BEN801931
Product Overview
Solenoid Valve, 2-Way, FNPT Inlet, FNPT Outlet, 8.5 Ohms Coil Resistor, 1/4-18 Inlet, IP69K IP Rating, 8.5 mm (2x) Mounting, 1.4 A Nominal, 12 VDC Nominal, 1/4-18 Outlet, 0 to 12.5 bar Pressure Rating, -40 °F Temperature Rating, 115 mm Height, 40 mm Length, 69 mm Width
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Type | 2-Way |
| VMRS Code | 013-011-077 |
| Coil Resistor | 8.5 Ohms |
| Height | 115 mm |
| Inlet Size | 1/4-18 |
| Inlet Type | FNPT |
| IP Rating | IP69K |
| Length | 40 mm |
| Mounting | 8.5 mm (2x) |
| Nominal Current | 1.4 A |
| Nominal Voltage | 12 VDC |
| Outlet Size | 1/4-18 |
| Outlet Type | FNPT |
| Pressure Rating | 0 to 12.5 bar |
| Temperature Rating | -40 °F |
| Width | 69 mm |
| Product Category | Solenoid Valve |
| Weight | 1.64 lbs (0.74 kg) |

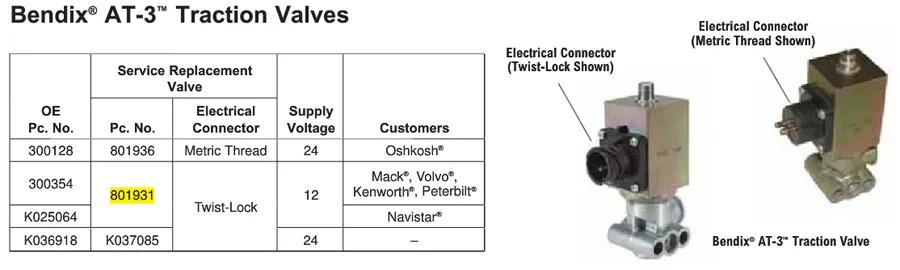

Interchanges & Equivalent parts:
| 745-801931 |
| 801931BXW |
| 85112545 |
| BAN801931 |
| BEN801931 |
| BW 801931 |
| BW 801931 |
| BX801931 |
| TWDBEN801931 |
| ZAC801931 |
