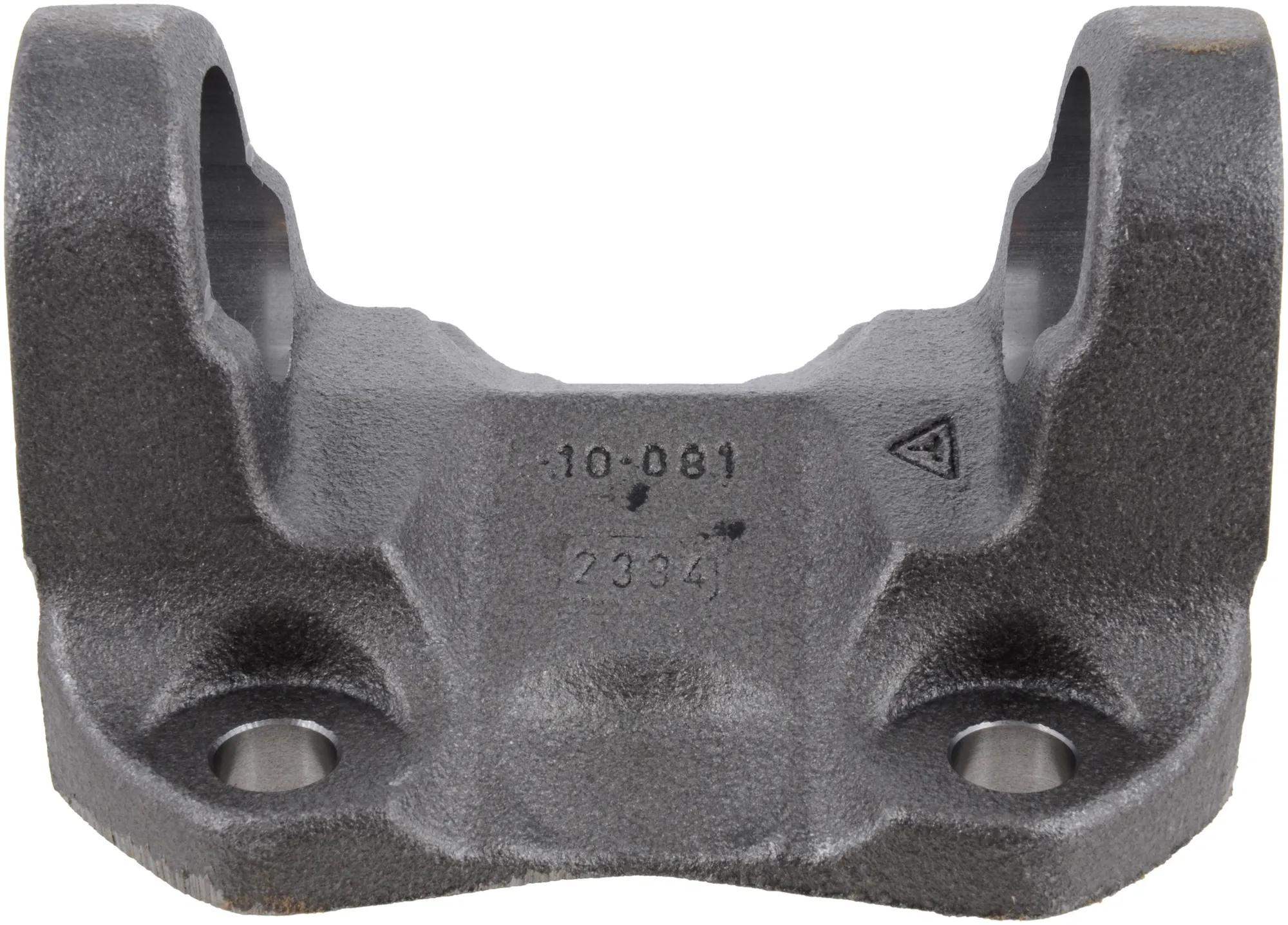

Spicer 1550 Series Flanged Drive Shaft Yoke, Rectangular, Steel, 5.774 in Flange Diameter
#SPI4-2-669
Product Overview
Demand genuine Spicer components for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot match.Drive Shaft Flange Yoke, Flanged, Steel, 4.750 in, 0.512 in - Drilled Bolt Circle Dia, Rectangular, 5.774 in Flange Dia, 2 in Flange Face to Center Line, 22 deg Joint Angle, 4 Bolt Holes, 5.25 in Outside Yoke, 3.750 in Male Pilot Dia, 1550, 1.375 in Yoke Bearing Dimension
Specifications
| Bearing Cap Diameter | 1-3/8 in |
| Design | Rectangular |
| Flange Face to Centerline | 2 in |
| Flange Or Swing Dia. (in.) (A) | 5.774 |
| Joint Angle | 22 deg |
| Material | Steel |
| Pilot Diameter | 3.750 in Male |
| Quantity | 1 |
| Series | 1550 |
| Type | Flanged Yoke |
| UPC | 737238239727 |
| VMRS Code | 024002016 |
| Weight | 3.97 lb |
| Bolt Circle Diameter | 4.750 in, 0.512 in - Drilled |
| Flange Diameter | 5.774 in |
| Number of Bolt Holes | 4 |
| Outside Yoke Dimension | 5.25 in |
| Yoke Bearing Dimension | 1.375 in |
| Product Category | Drive Shaft Flange Yoke |
Interchanges & Equivalent parts:
| 213880R1 |
| 2384305 |
| 3830223 |
| 42669 |
| 42669-SP |
| 878924 |
| D42669 |
| E42669 |
| S-13169 |
| SP 42669 |
| N42669 |
| 2104-42669 |
| 38MU373 |
| 42669S |
| TWD42669 |
| 4-2-669R |
| 4-2-669 |
| SP 4 2 669 |
