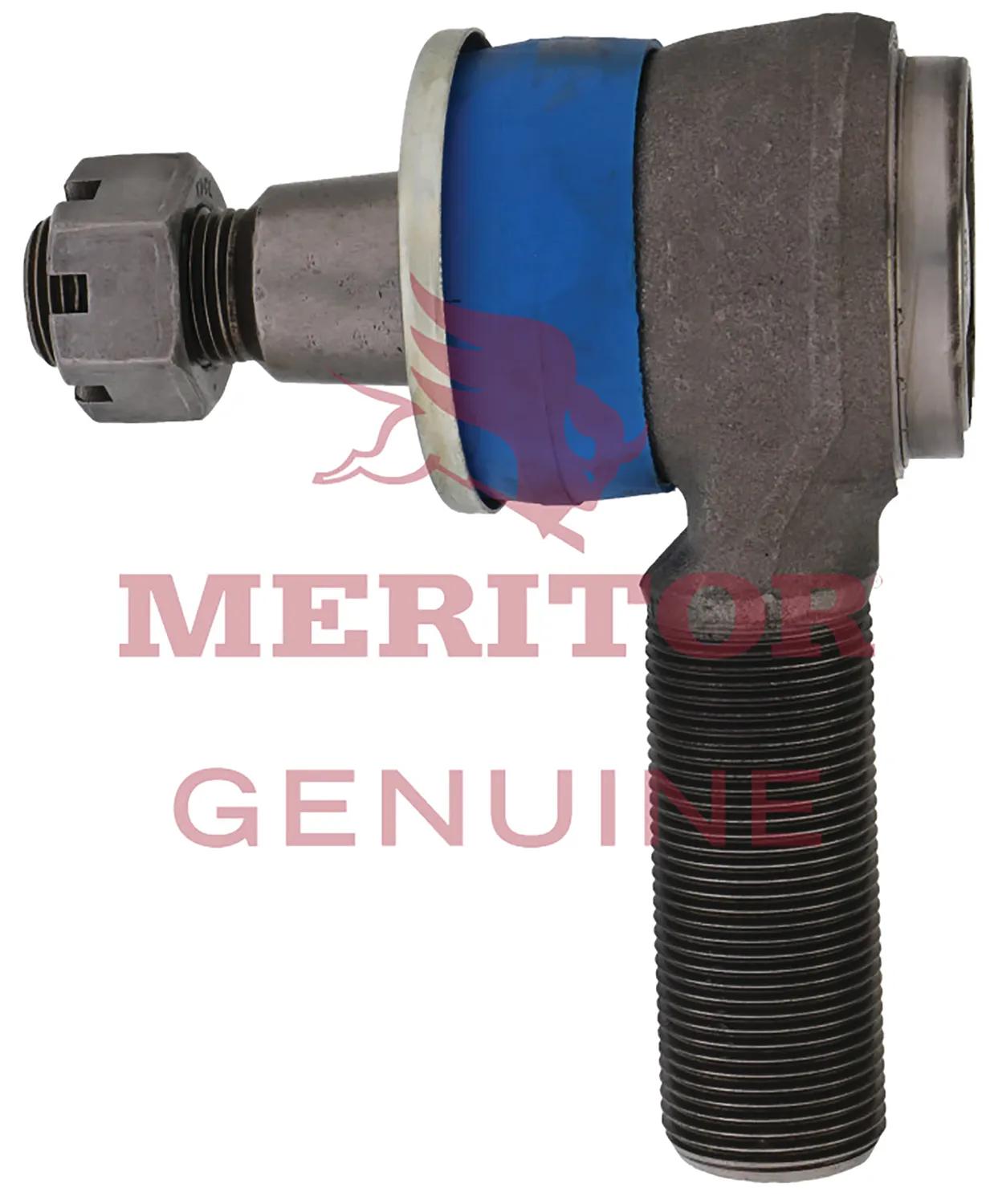

TIE ROD END
#ROCA3144Y1091
Features & Benefits
- Reliable repair solution for worn brake camshafts
- Enhance safety and braking efficiency on the road
- Maintain optimal brake performance under heavy loads
- Improve overall braking system durability and resilience
- Ensure safe and smooth brake operation with this repair kit
- Minimize the risk of brake system failures and malfunctions
- Increase longevity and reliability of the brake camshaft system
- Designed to meet or exceed industry standards for quality and performance
Specifications
| Center to Center Length | 7-61/64 in (20.19 cm) |
| Large Taper Diameter | 1-1/4 in (3.18 cm) |
| Notes | Side zerk |
| Right or Left Hand Threads | RH |
| Rod Thread Diameter (in.) | 1-1/4 in (3,18 cm) |
| Rod Threads per Inch | 12 in (30,48 cm) |
| Small Taper Diameter | 1-5/64 in (2.74 cm) |
| Stud Center to Rod End (in.) | 4-15/16 in (12,55 cm) |
| Stud Thread Diameter (in.) | 7/8 in (2,23 cm) |
| Stud Threads per Inch | 14 in (35,56 cm) |
| Style | Roadside |
| Taper Length | 1-23/64 in (3,46 cm) |
| Type | 1 in (2.54 cm) |
| VMRS Code | 011-001-031 |
Interchanges & Equivalent parts:
| 8235-A3144Y1091 |
| 9631 A3144Y1 091 |
| A3144Y1091-RI |
| ATIA3144Y1091 |
| L28SV5048A12 |
| TDA A3144Y1091 |
| TDAA3144Y1091 |
