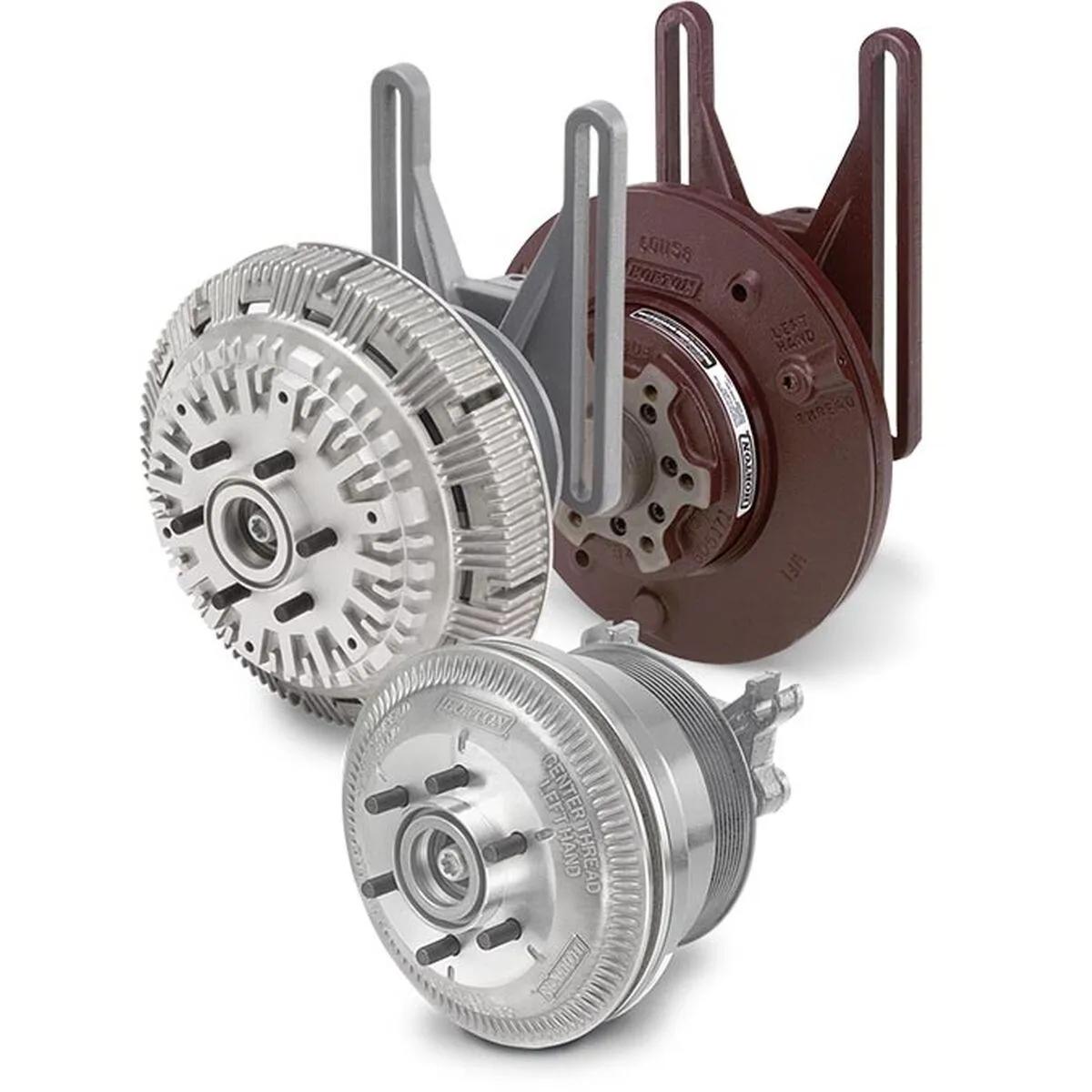

CLUTCH DMA2S SE 24 REMAN CUM
#HOR79A9749
Specifications
| Application | International |
| Back Pulley Diameter (A) | 7-9/16 in (19.2 cm) |
| Belt Groove Location (C) | 6-21/32 in (16.92 cm) |
| Center Of JB To Top Right Mounting Hole (J) | 2-33/64 in (6.4 cm) |
| Clutch Type | DM Advantage Two-Speed |
| Diameter | 32 in (81.28 cm) |
| Drive Ratio | 1.25 |
| Engine MFR | Cummins |
| Engine Model(S) | ISX |
| Fan Blade Service Number | 996813253 |
| Fan Blade Stud Length (F) | 1.07 |
| Horizontal Mounting Distance (H) | 6-23/64 in (16.15 cm) |
| Kit Includes | Journal Bracket, Sheave Bearing, Includes Bearing Install Tool, Sheave, Bearing Nut, Air Chamber Cap, O-Ring Seal, Fan Mounted Friction Disc (Fmfd), Button Head Screws, Air Chamber Seal, Face Seal, Bearing Retaining Ring, Air Cartridge Assembly, Air Cartridge Retaining Ring, Fan Mtg Stud, Friction Liner, Bearing Spacers, Clutch Pack - Spring Housing/Piston, Magnet Assembly |
| Length | 11-31/32 in (30.4 cm) |
| Number of Studs | 11 |
| OEM # | 98A9749 |
| Pilot Diameter | 2-9/16 in (6.5 cm) |
| Vehicle Model(s) | Prostar |
| Vehicle Years | 2007 |
| Vertical Mounting Distance (G) | 2-33/64 in (6.4 cm) |
