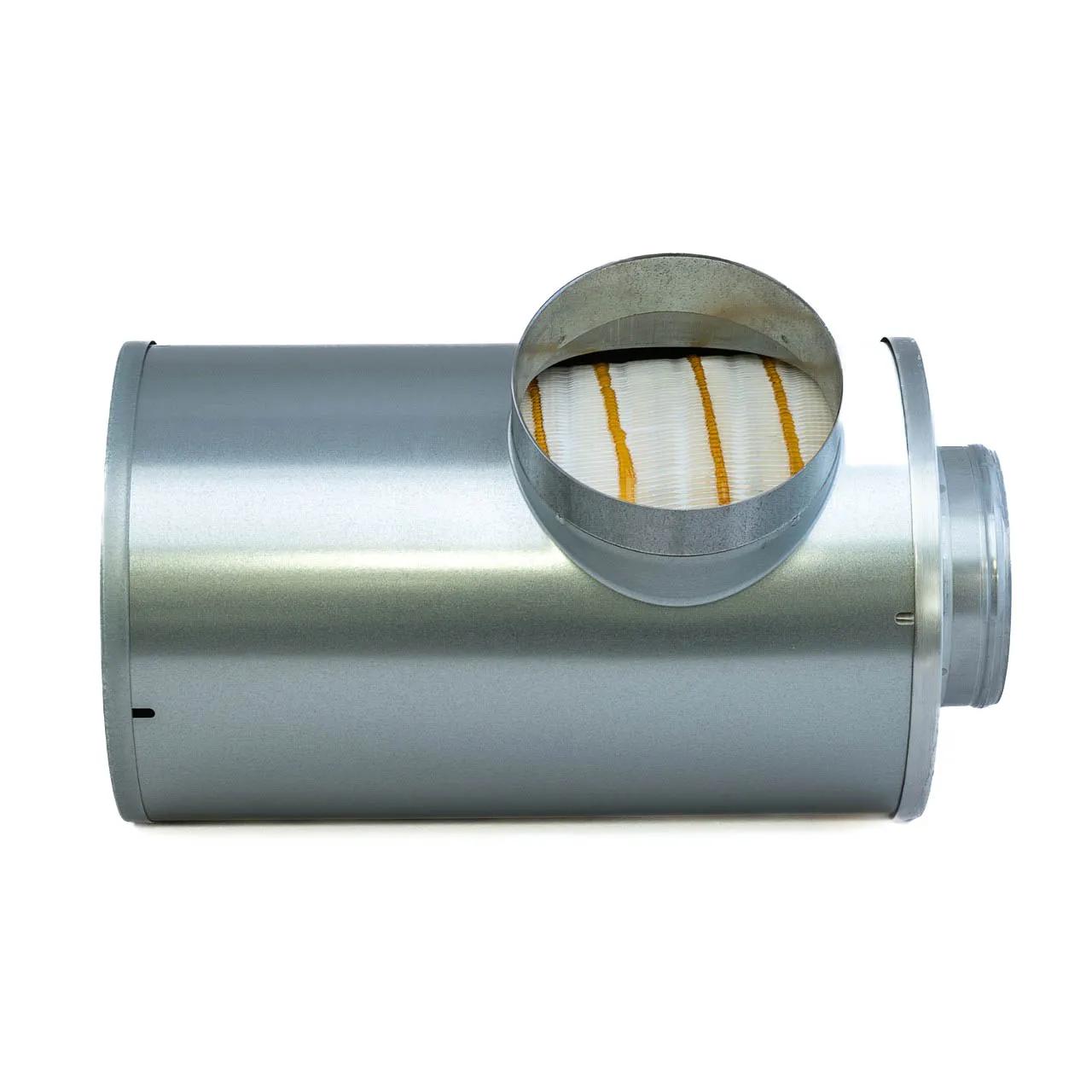

Air Cleaner Disposable
#DONP636069
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Diamètre | 11 po (279,4 mm) |
| Plage de diamètre | 11 à 11.99 po |
| Efficacité | 99.9 |
| Diamètre d'entrée | 7 in (17.78 cm) |
| Longueur | 18 po (457,2 mm) |
| Diamètre extérieur | 6 po (152,4 mm) |
| Diamètre de sortie | 6 in (15.24 cm) |
| Longueur totale | 19,58 po (497,3 mm) |
| Gamme haute de débit nominal | 1201 cfm (34,01 m³/mpo) |
| Rated Flow Low Range | 802 cfm (22,7 m³/mpo) |
| Rated Flow Mid Range | 999,41 cfm (28,3 m³/mpo) |
| Restriction HR | 9,75 po H20 (247,7 mm H20) |
| Restriction LR | 4,67 po H20 (118,6 mm H20) |
| Restriction MR | 6,97 po H20 (177 mm H20) |
| Length Range | 18 à 18.99 po |
| Style | Remplacement |
Interchanges & Equivalent parts:
| P636069 |
| 2817 |
| 42817 |
| PA4860 |
| 87817 |
| 400820022 |

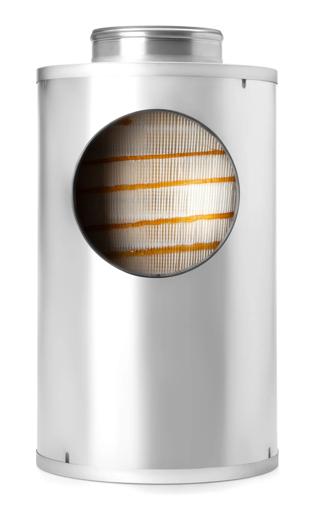

| AF25160 |
