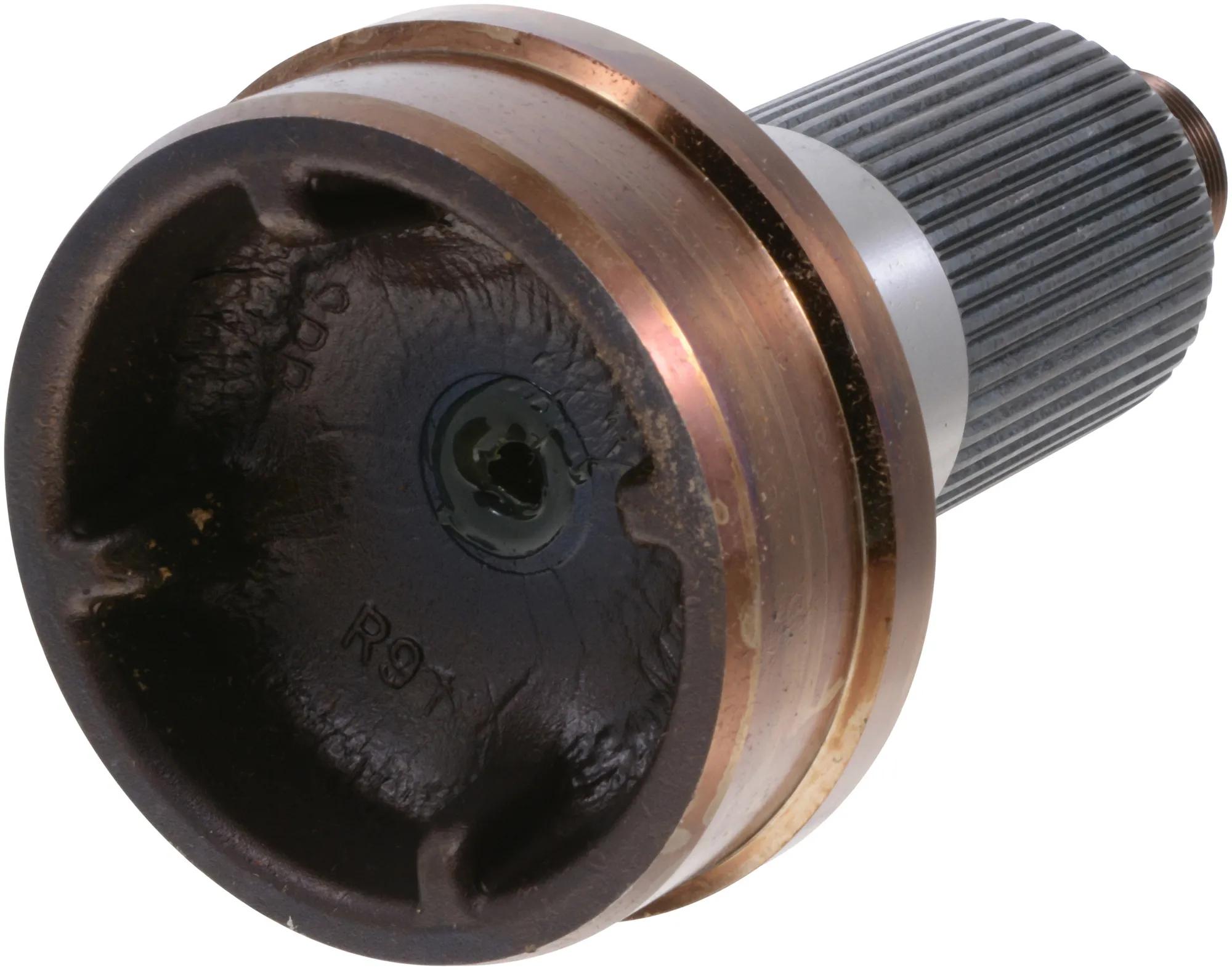

Spicer 1760/1810 Midship Stub Shaft Driveshaft Assembly, Steel, 2.362 in Bearing Diameter, 4.242 in Butt Diameter
#SPI6.5-53-171
Product Overview
Demand genuine Spicer parts with all components needed for reliable repair. Dana's design, engineering, testing, and manufacturing processes ensure unparalleled performance that non-genuine parts cannot deliver.Drive Shaft Midship Stub Shaft, Steel, 2.362 in Bearing Dia, 4.242 in Butt Dia, 1810, 2.875 in Shoulder Dia, 0.812 in Shoulder Length, 46 Spline Count, 4 in Spline End to Bearing Shoulder, 5.312 in Spline End to Weld, 2.625 in Spline Length, 2.350 in Spline O.D., 4.500 x 0.134 in Tube
Features & Benefits
- Genuine Spicer quality and reliability
- Engineered and tested by Dana for superior performance
- Steel construction for durability
- Fits 1760/1810 series applications
Specifications
| Matériel | Acier |
| Package Type | Individuel |
| Quantité | 1 |
| Séries | 1810 |
| Diamètre de l'épaule | 2,875 po |
| Taille du tube | 4,500 x 0,134 po |
| Code VMRS | 24002060 |
| Poids (lb) | 10.95 |
| Diamètre du roulement | 2,362 po |
| Longueur de l'épaulement | 0,812 po |
| Nombre de cannelures | 46 |
| Extrémité de la cannelure à l'épaulement du roulement | 4 po |
| Extrémité de la cannelure à la soudure | 5,312 po |
| Longueur de la cannelure | 2.625 |
| Spline O.D. | 2.35 |
| Catégorie de produit | Arbre court d'arbre de transmission intermédiaire |
| Poids | 10,98 lb |
Interchanges & Equivalent parts:
| 30014-3203 |
| 6553171-SP |
| 6553171S |
| D6553171 |
| E6553171 |
| SP 6.5 53 171 |
| SP 6553171 |
| TWD6553171 |
| 1660420C1 |
| S-F117 |
| 6553171 |
