Head Assy L: 3,74 in, OD: 3/4-14 NPT , H: 2,4 in
#DONP563278
Product Overview

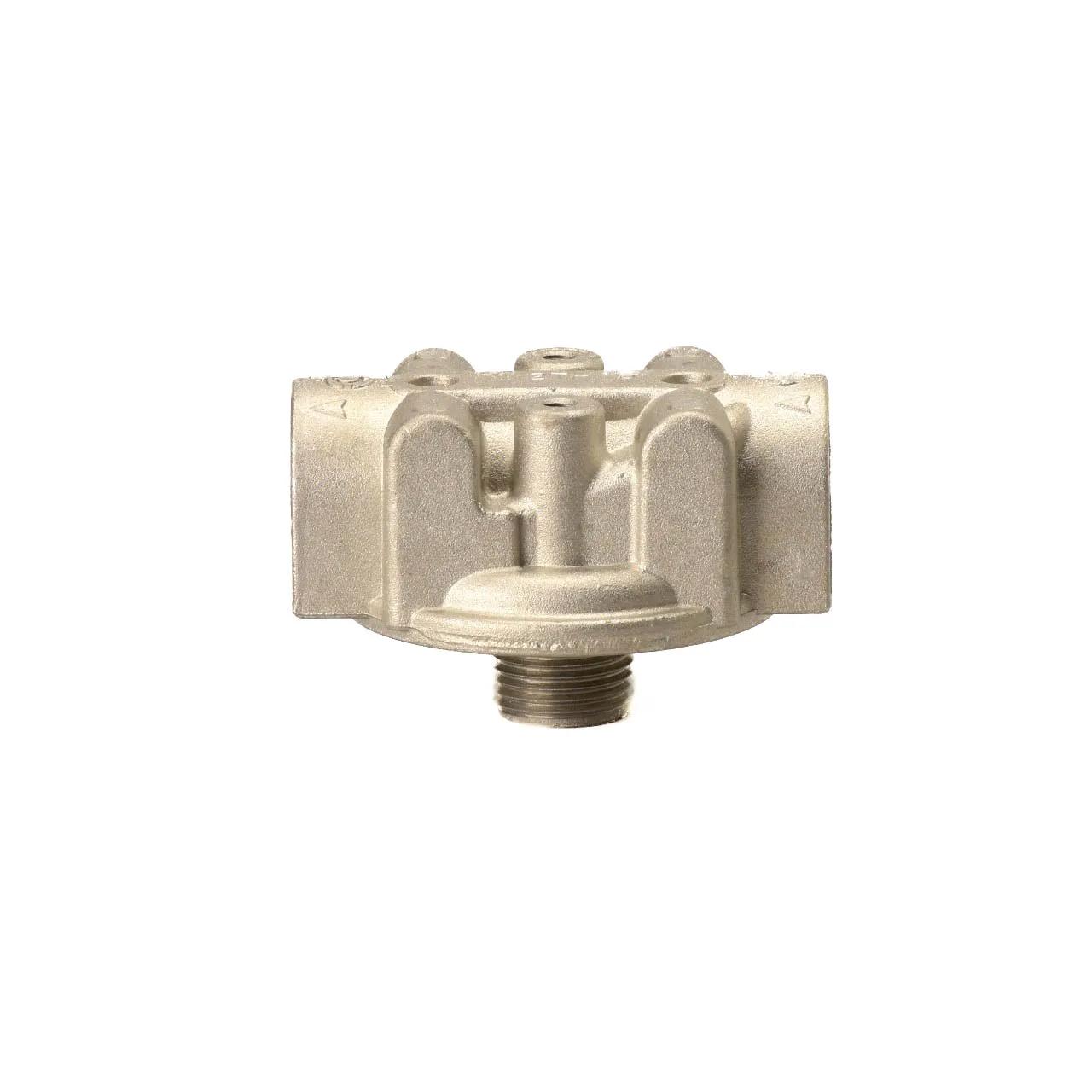

HEAD ASSEMBLY, HYDRAULIC
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Oui |
| Bypass Valve Setting LR | 14,51 psi (1 bar) |
| Filter-to-Head Thread | 1-12 UN |
| Height | 2-13/32 po (6,12 cm) |
| Inlet Size | 3/4-14 NPT |
| Length | 3-47/64 po (9,47 cm) |
| Outer Diameter | 3/4-14 NPT |
| Outlet Size | 3/4-14 NPT |
| Series | SP15/25 |
| Length Range | 3 à 3.99 po |
Interchanges & Equivalent parts:
| 2191-P563278 |
| DONP563278 |
| DN P563278 |
