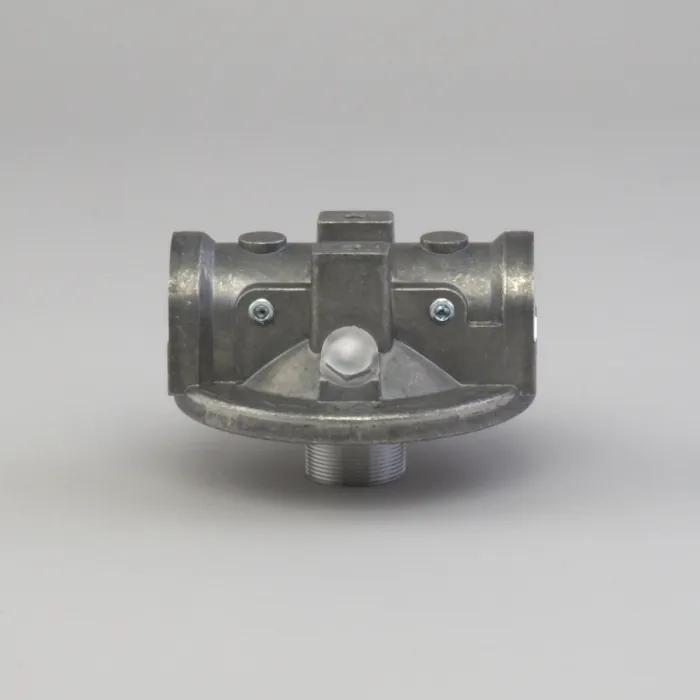

Head Assy L: 5,39 in, OD: 1 5/8-12 UN , H: 3,7 in
#DONP576564
Caractéristiques et avantages
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Spécifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1,72 bar |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN |
| Height | 3-45/64 in (9.4 cm) |
| Inlet Size | 1 5/8-12 UN |
| Length | 5-25/64 in (13.69 cm) |
| Outer Diameter | 1 5/8-12 UN |
| Outlet Size | 1 5/8-12 UN |
| Series | SP50/60 |
| Length Range | 5 to 5.99 in |
Interchanges et pièces équivalentes:
| P576564 |
