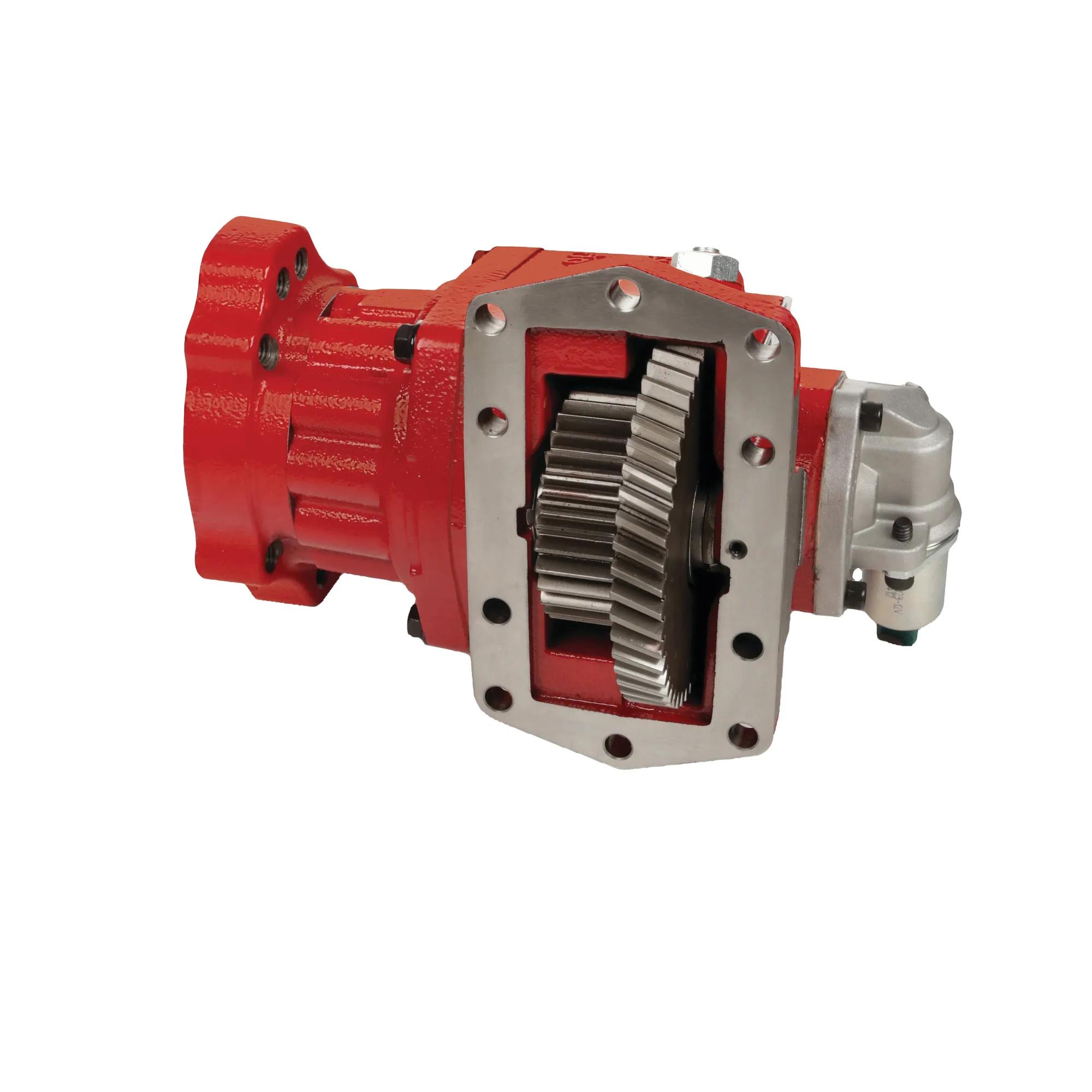

Parker Hannifin Chelsea 281 Series Power Take-Off (PTO) Assembly, 31:41 Gear Ratio, 390 lb-ft Continuous Torque
Product Overview
The 281 series power take-off from Parker Chelsea represents a significant evolution of the top-selling 280 series PTO. It features a ductile iron bearing cap that is 117% stronger than its predecessor, an O-ring sealing configuration between the housing and bearing cap to improve clamp load and reduce vibrational effects, and clutch pack steel discs increased in thickness by 80% to resist premature tooth wear. These enhancements are designed to address the challenges posed by modern and future engine designs, ensuring durability and reliable performance.Power Take Off, 10-Bolt Mounting, Smart Start - Round Shaft (1-1/4 in - 5/16 in Key), 3/4 in - 11T Pump Spline, SAE B (7/8 in - 13T) Pump Spline, SAE C (1-1/4 in - 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Companion Flange, DIN 120 Flange, DIN 100 Flange Output Shaft, SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline Output, 12 VDC Electric/Hydraulic Shift, Continuous Operation, 390 lb-ft, 529 Nm Continuous Torque, 31:41 Gear Ratio, 301 to 400 lb-ft, 501+ Nm Intermittent Torque, Wet Spline Lubricant, 51+ kW, 56+ hp Output Power, 37 hp (500 rpm), 74 hp (1000 rpm), 28 kW (500 rpm), 55 kW (1000 rpm) Shaft Power, For 281
Features & Benefits
- Ductile iron bearing cap – 117% stronger than gray iron
- Improved seal – O-ring sealing configuration to reduce vibrational effects and improve clamp load
- Enhanced clutch pack – 80% thicker steel discs in the clutch pack to resist premature tooth wear
- Torque – single, continuous duty torque rating
- Clearance – rotatable cast iron flanges to improve pump clearance
- Positive stop for driveline outputs – eliminates oil seal damage from coupling
- Wet spline lubrication option – provides 7 to 10 times greater shaft life
- Speeds nine speed ratios including low and high-speeds
- Smartstart – reduces shock load at start-up for certain applications
- Insurance – electronic overspeed control (EOC) protects driven equipment
Specifications
| Rapport de pignon | 31:41 |
| Lubrifiant | Cannelures humides |
| Puissance de sortie | 51+ kW, 56+ ch |
| Type de sortie | Bride de pompe SAE B, bride de pompe SAE C, bride de pompe ISO 7652, ligne d'entraînement |
| Type | Ensemble Prise de Force (PTO) |
| Couple continu | 390 lb-pi, 529 Nm |
| Fonctionnement continu | Oui |
| Modèles compatibles | 281 |
| Intermittent Torque | 301 à 400 lb-pi, 501+ Nm |
| Mounting Type | 10 boulons |
| Output Shaft Type | Smart Start - arbre rond (1-1/4 po - clavette 5/16 po), cannelure de pompe 3/4 po - 11 dents, cannelure de pompe SAE B (7/8 po - 13 dents), cannelure de pompe SAE C (1-1/4 po - 14 dents), cannelure de pompe DIN 5462, bride compagnon 1410, bride DIN 120, bride DIN 100 |
| Shaft Power | 37 ch (500 tr/min), 74 ch (1000 tr/min), 28 kW (500 tr/min), 55 kW (1000 tr/min) |
| Shift Type | 12 VCC Électrique/Hydraulique |
| Product Category | Prise de force |
| Weight | 50 lb |
