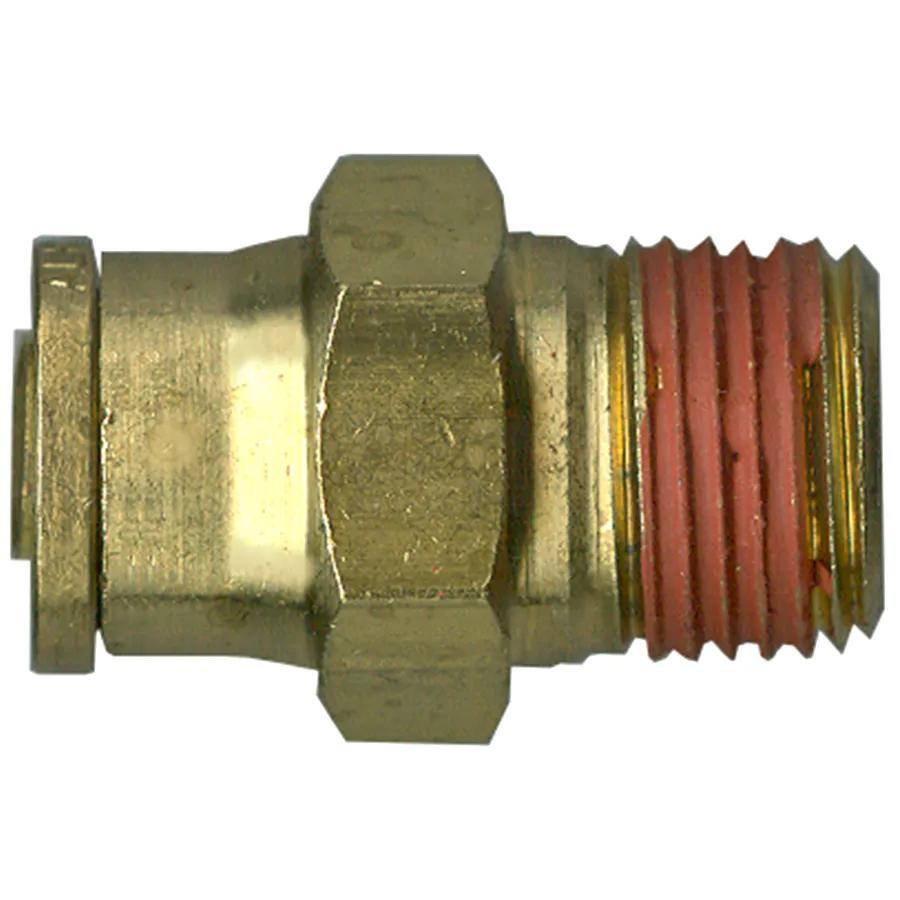

Fairview Air DOT Push-to-Connect Male Pipe Connector, Brass, Tube 1/2 in x Pipe 3/8 in, 0.062 in Wall Thickness
#FAIPC1468-8C
Product Overview
Pipe Connector, Push-to-Connect, Male, Brass, 8 Dash, 1/2 x 3/8 in, Temperature Rating: -40 to 225 °F, 0.062 in Wall Thickness, For Air Brake Systems
Features & Benefits
- Male fitting type for secure connection
- Push-to-Connect fitting for easy installation
- Use with J844D Nylon Air Brake Tube
Specifications
| Application | Systèmes de freinage pneumatique |
| Dash Size | 8 |
| Finition | Laiton |
| Dimension de raccord | 1/2 po x 3/8 po |
| Fitting Type | Tuyau mâle |
| Material | Laiton |
| Series | D.O.T. |
| Type | À emboîtement rapide |
| Wall Thickness | 0,062 po |
| For Use With | Tube de frein pneumatique en nylon J844D |
| Pressure Rating | 240 psi, 350 psi (16,55 bar, 24,13 bar) |
| Standards | SAE J844D & D.O.T. |
| Temperature Rating | -40 °F à +225 °F (-40 °C à +107 °C) |
| Manufacturer Part Number | PC1468-8C |
| Product Category | Raccord de tuyau |
Interchanges & Equivalent parts:
| 12-09928P |
| PC1468-8C |
| U34PC14688C |
| PL1368-8CTEC |
| G31100-0806 |
| PL13688C |
| S68PMT-8-6 |
| S68PMT86 |
| 4485-PC14688C |
| FV PC14688C |
| TEWPL1368-8C |
| APTC688C |
| PC14688C |
| PC1468-8CPX1 |
