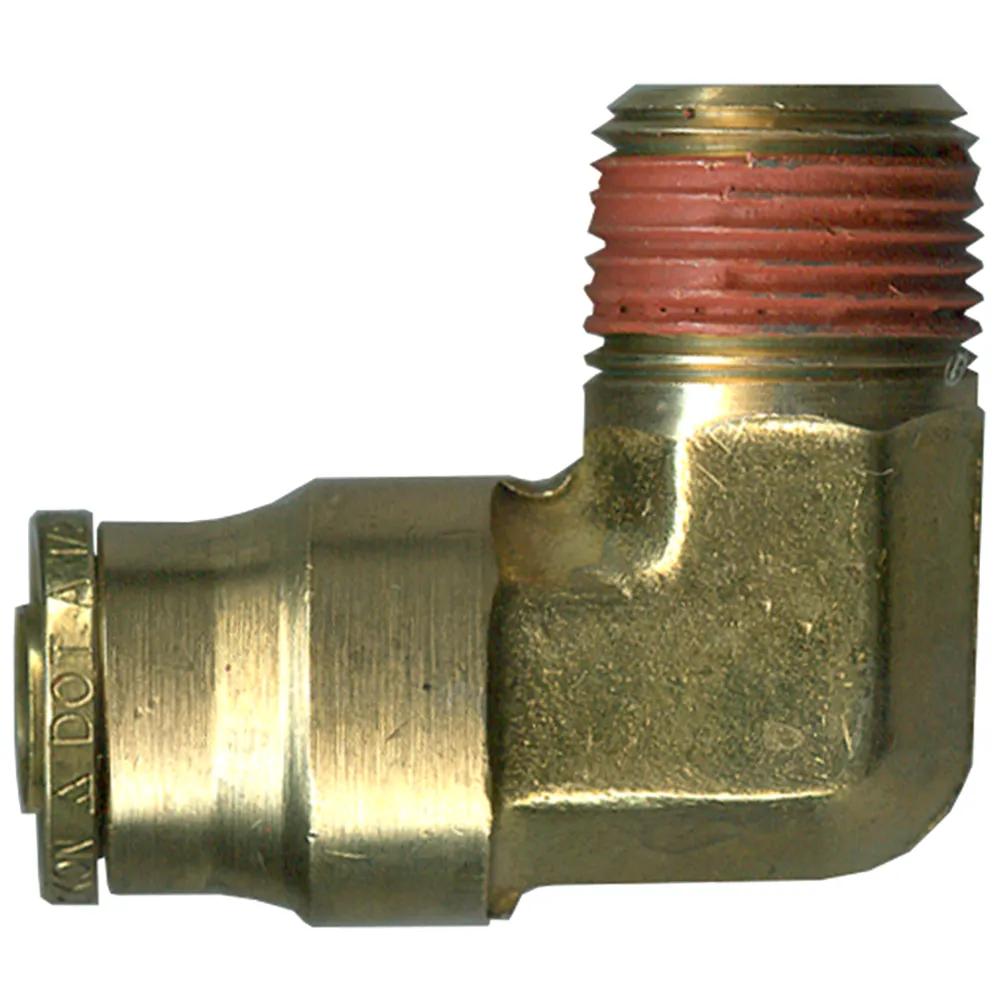

Fairview DOT Air Brake Push-to-Connect Male Pipe Elbow, Brass, 3/8 in Tube x 3/8 in Pipe, 90 deg
#FAIPC1469-6C
Product Overview
Pipe Elbow, Push-to-Connect, Male, Brass, 6 Dash, 3/8 in, 350 psi Pressure, Temperature Rating: -40 to 225 °F, 0.062 in Wall Thickness, For Use with J844D Nylon Air Brake Tube, For Air Brake Systems
Features & Benefits
- Use with J844D Nylon Air Brake Tube
Specifications
| Angle | 90 deg |
| Application | Systèmes de freinage pneumatique |
| Dash Size | 6 |
| Finition | Laiton |
| Dimension de raccord | 3/8 po x 3/8 po |
| Fitting Type | Coude mâle de tuyau |
| Length | 3/8 po |
| Material | Laiton |
| Series | D.O.T. |
| Type | À raccord rapide |
| Wall Thickness | 1/16 po |
| Width | 3/8 po |
| For Use With | Tube de frein pneumatique en nylon J844D |
| Pressure Rating | 350 psi |
| Standards | SAE J844D et D.O.T. |
| Temperature Rating | -40 °F à +225 °F (-40 °C à +107 °C) |
| Manufacturer Part Number | PC1469-6C |
| Product Category | Coude de tuyau |
Interchanges & Equivalent parts:
| 12-09938P |
| PC1469-6C |
| U34PC14696C |
| G31104-0606 |
| S269PMTNS-6-6 |
| S269PMTNS66 |
| 4485-PC14696C |
| FV PC14696C |
| APTC696C |
| PC14696C |
| PC1469-6CPX1 |
