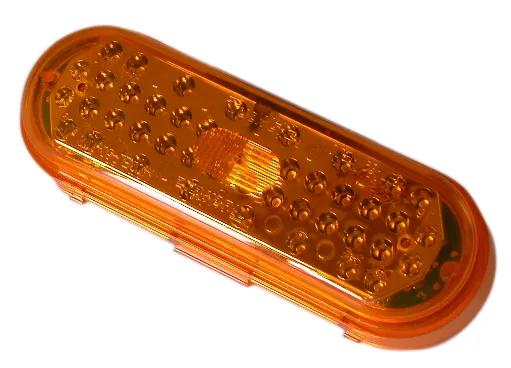

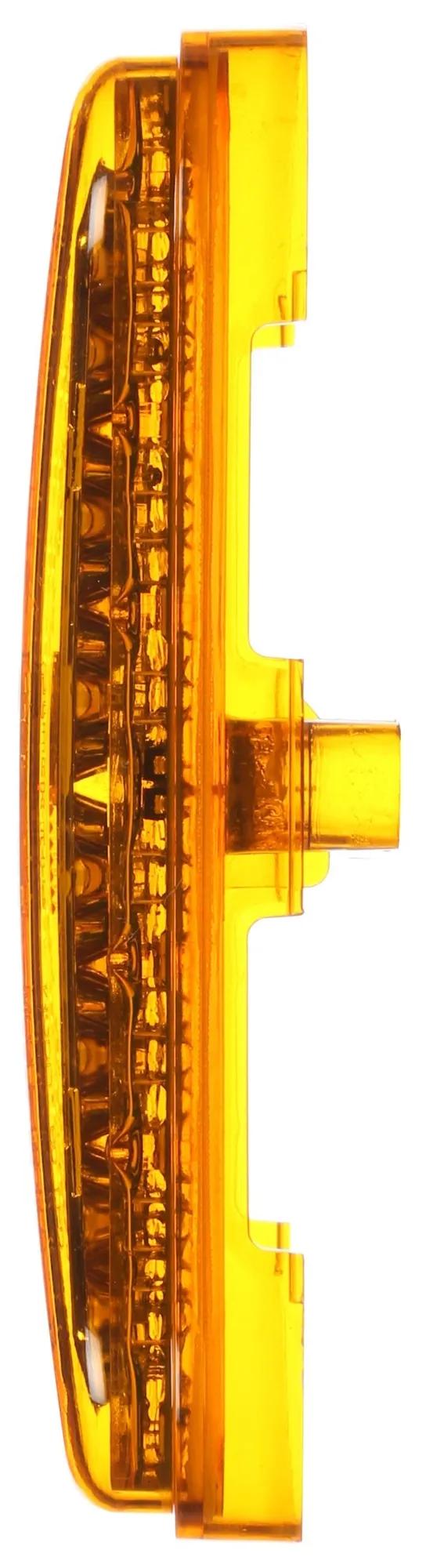

Front/Park/Turn Light, 44 Diode, 60 Series, LED, Yellow Oval, Polycarbonate Lens, Fit 'N Forget S.S.
#TRL60290Y
Product Overview
60 Series LED front/park/turn light featuring 44 diodes in a yellow oval polycarbonate lens. Operates at 12V with Fit 'N Forget stainless steel connection. Designed for durability and safety with less current draw and faster illumination.Front/Park/Turn Light, 44 Diode, LED Bulb, Fit 'N Forget S.S., Grommet, Polycarbonate, Yellow, 2.32 in H, Light Function: I6, P, P2, 60 Series, Oval, 12 V, Warranty: Limited Lifetime, 6.5 in W
Features & Benefits
- Faster illumination offers significant safety benefit for following drivers to react quicker, resulting in an average of 3' reaction time advantage for every 10 mph
- Meets stringent Front, Park and Turn requirements
- Less Current Draw, Faster Illumination, No Filament.
- LEDs have no filament, therefore are not susceptible to shock and vibration
- Less current draw results in increased battery and alternator life while allowing more power for other vehicle requirements
Specifications
| Bulb Type | LED |
| Common Size | 2 in |
| Connection Type | Fit 'N Forget S.S. |
| Current Minor | 0.09 amp |
| Diamond Shell (Y/N) | No |
| Dimension | 140mm (dia.) x 25mm (d) |
| Height | 2-5/16 in |
| Housing Color | Amber |
| Kit (Y/N) | No |
| Length | 6-1/2 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting System | Drill Hole Grommet |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side Two | No Plug |
| Quantity | 1 |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 44 Diode |
| UPC | 735111000000 |
| VMRS Code | 034-003-057 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.44 lb |
| Width | 6-1/2 in |
| Wire Gauge | 16 ga |
| Current Rating | 0.55 amp |
| Light Function | I6, P, P2 |
| Light Output Color | Yellow |
| Product Line | 60 Series |
| Product Category | Front/Park/Turn Light |
Interchanges & Equivalent parts:
| 23596 |
| 58011365 |
| 190400000 |
| 41312556 |
| 11512281 |
| 3382854 |
| 600310000 |
| 60290Y |
| 46000615 |
| 121377 |
| 841360290Y |
| 47MO3150 |
| PQA558 |
| TKL60290Y |
| TL60290Y |
| TLD60290Y |
| TRU60290Y |
| LED2237A |
| LED223827A |
| LED223863A |
| 204167 |
| 1280078 |
| 137368 |
| 20829712 |
| 60290Y-TL |
| 8413-60290Y |
| 9850-88 |
| LED2238-27A |
| LED2238-63A |
| LIT60290Y |
| TL 60290Y |
| TL 60290Y |
| TLT 60290Y |
| 820A-7 |
| GRT53963 |
| 703884 |
| 70388401 |
| 90297602 |
