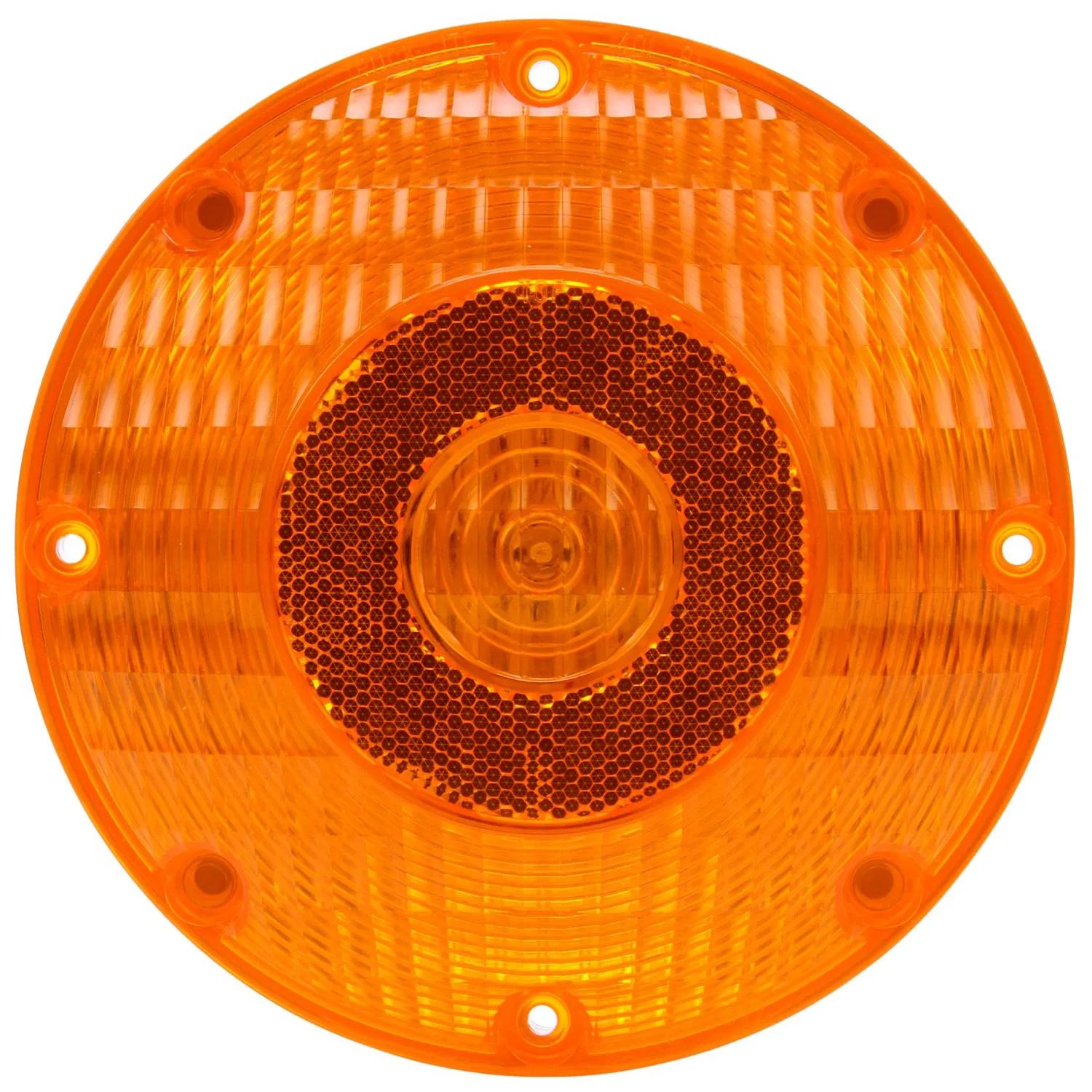

Front/Park/Turn, Amber & Yellow, Round
#TRL91202Y
Product Overview
91 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 4 Screw, 12V, PL-3
Features & Benefits
- Contains a heavy duty shock mount 12V bulb
- Mounting gasket provides additional protection between lamp and body
- Mounts in a 5375" hole
Specifications
| Color | Amber |
| Common Size | 7 in (17.78 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 3-5/8 in (9.22 cm) |
| Diamond Shell (Y/N) | No |
| Height | 7-1/64 in (17.83 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 7-1/64 in (17.83 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side Two | No Plug |
| Series | 91 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Front/Park/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 7-1/64 in (17.83 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5124160011 |
| 1151029 |
| 6327109 |
| 107665 |
| 91202Y |
| 6510A |
| 78323 |
| 735093 |
| 841391202Y |
| 70193300173 |
| HT50602870 |
| TL91202Y |
| TLD91202Y |
| TRU91202Y |
| 8413-91202Y |
| 91202Y-TL |
| LIT91202Y |
| TL 91202Y |
| TL 91202Y |
| 78777 |
