Front/Park/Turn, Amber & Yellow, Oval
#TRL60002Y
Product Overview

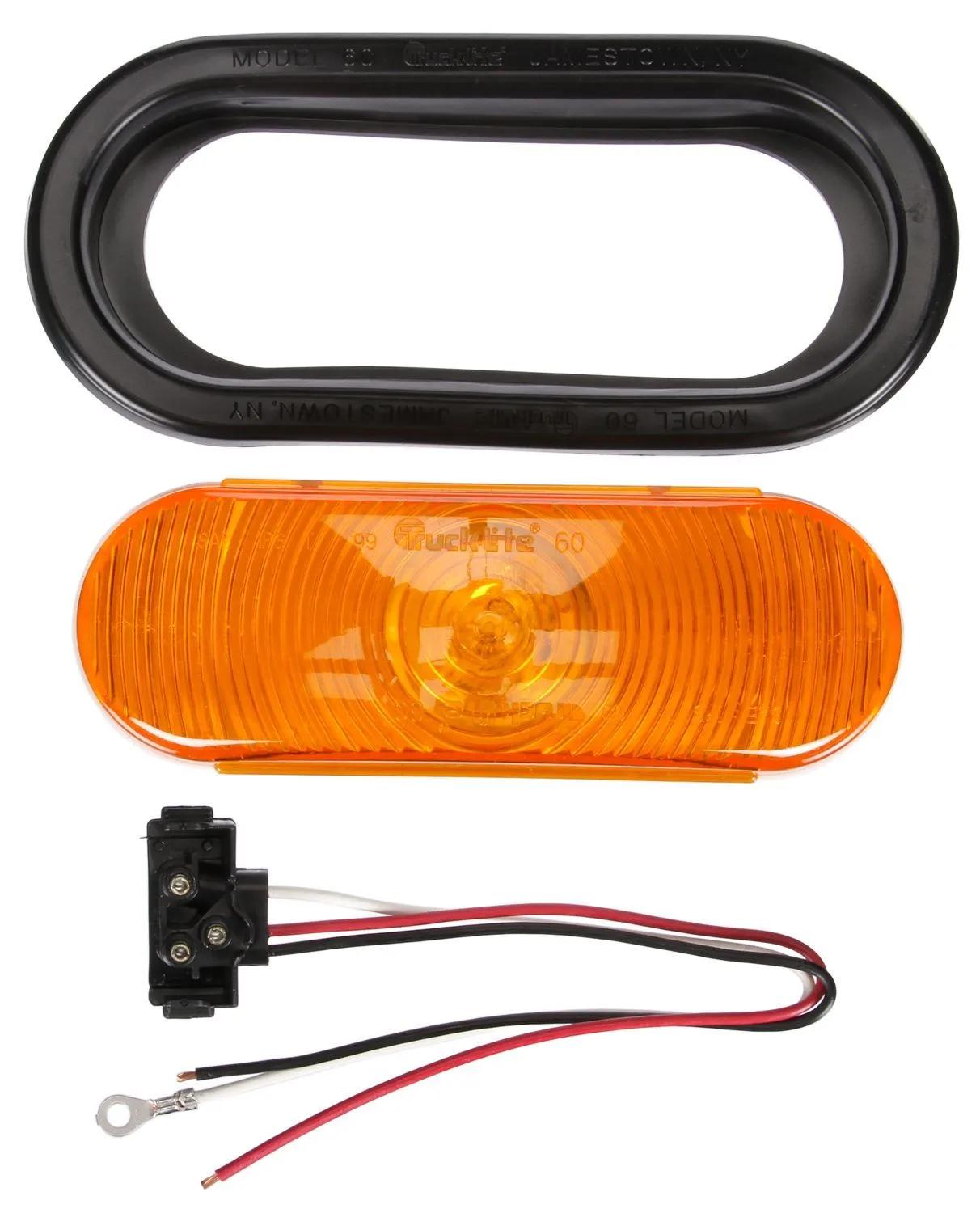

Super 60, Incandescent, Yellow Oval, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 12V, PL-3, Stripped End/Ring Terminal, Kit
Features & Benefits
- Mount horizontally or vertically
- Right angle plug assembly
- Upgrade to Truck-Lite LED lighting systems using Super 66 or 60 Series LED products
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | 52892 Lamp, 92420 Grommet, 67000 Pigtail |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Diamond Shell (Y/N) | No |
| Function | I, P |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 6-1/2 in (16.51 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Gel-Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Front/Park/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 6-1/2 in (16.51 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 51052508 |
| 421KA |
| 60002Y |
| 12011 |
| 15200588 |
| 841010128 |
| 841360002Y |
| 706253 |
| 70625399 |
| 7071 |
| 40281 |
| OBI051052508 |
| TKL60002Y |
| HT50603368 |
| TL60002Y |
| TLD60002Y |
| P803004 |
| MTL07037400Y |
| LNB16382 |
| F310117 |
| 1288038 |
| 13755 |
| 2140185 |
| 1403380 |
| 1659101C91 |
| 253-6253- |
| 2536253 |
| 60002Y3 |
| MNC253-6253- |
| TRU60002Y |
| 191B-0074 |
| 21006199 |
| 55620358 |
| 60002Y-TL |
| 84101-0128 |
| 8413-60002Y |
| LIT60002Y |
| LT60KY |
| ST74AB |
| TL 60002Y |
| TL 60002Y |
| TL-60002Y |
| 143-02-112 |
| 4070A |
| 52573GR0 |
| 800-250420A |
| GRT52893 |
| KT3260A |
| M421KA |

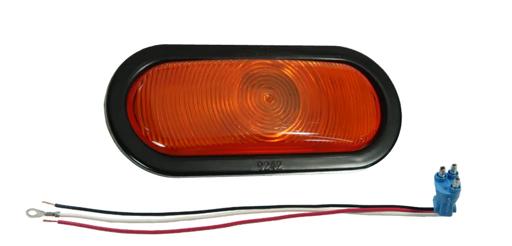

| 52573 |
| PA10212 |
| 814116 |
| 7202502 |
| 2140185B |
| 214-0185 |
| 214-0185-B |
