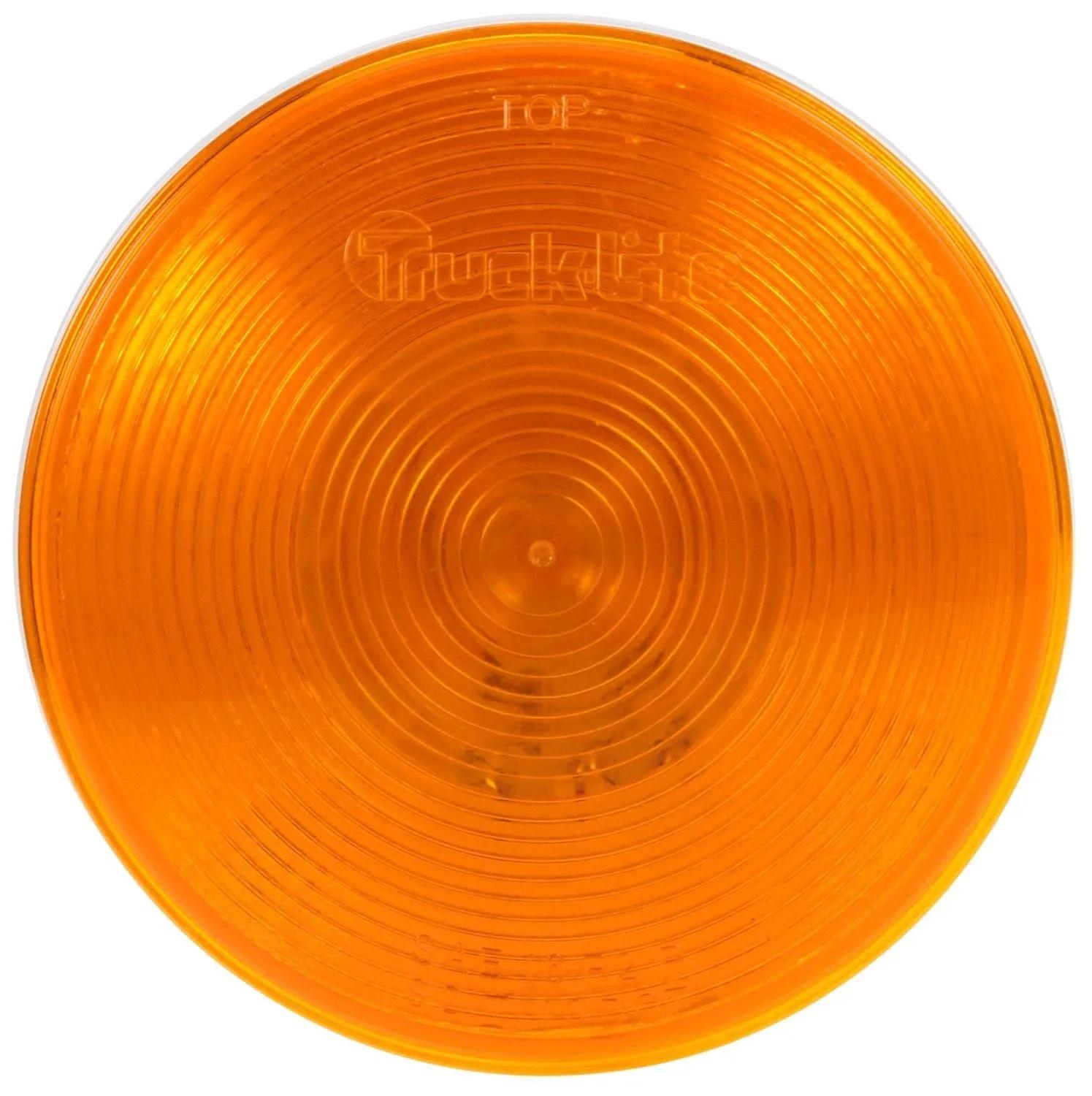

Front/Park/Turn, Amber & Yellow, Round
#TRL40002Y
Product Overview
40 Series, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Black PVC, Grommet Mount, 12V, PL-3, Stripped End/Ring Terminal, Kit
Features & Benefits
- Heavy duty bulb last longer
- Unique designed shock-mount extends lamp life
- Available with or without reflectorized lens
- Flush mount grommets are designed for mounting in a 4 1/2" hole
Specifications
| Color | Amber |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-5/16 in (10.95 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Front/Park/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-5/16 in (10.95 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 426KA |
| 104463 |
| 8111911 |
| 6945 |
| 5041490 |
| 841340002Y |
| 701110023 |
| 40002Y |
| 705094 |
| 7581001289 |
| 7590185 |
| N0734 |
| G1000568 |
| HT50602566 |
| TLD40002Y |
| S208158 |
| MTL07036700Y |
| LQA21221 |
| LYD56355 |
| 1111402 |
| 40001Y |
| 40002Y1 |
| 40002Y3 |
| 759185 |
| TRU40002Y |
| 8413-40002Y |
| LIT40002Y |
| LT40KY |
| S-14063 |
| TL 40002Y |
| TL 40002Y |
| TL-40002Y |
| TL40002Y |
| 4040A |
| 4054A |
| 800-250400A |
| KT3405A |
| MTL04000200Y |
| 52783 |
| 9017476 |
| 7590185B |
| 759-0185-B |
| 759-0185 |
| 527833 |
| 52783-3 |
