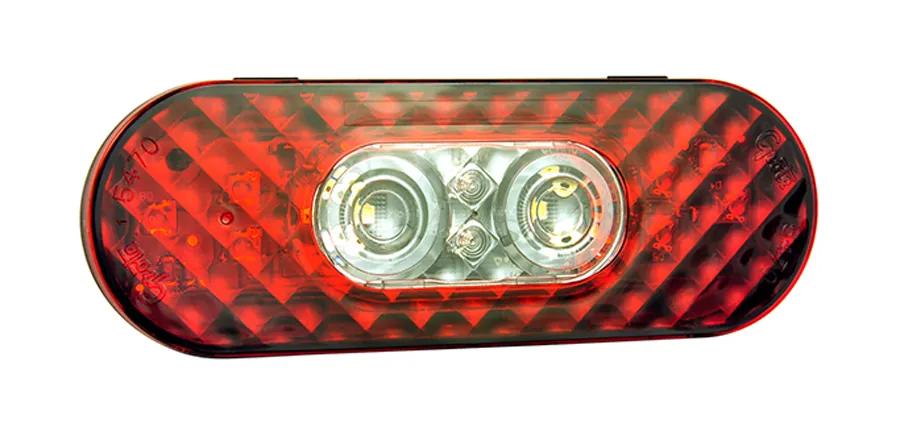

Stop/Tail/Turn & Back-Up Light, LED, Red & White, Oval, 6 in, Female Pin
#GRO54682
Product Overview
The 6” Oval LED Stop/Tail/Turn and Back-up light seamlessly combines two separate lights. Symmetrical and sleek, the innovative 6” Oval LED lowers inventory and maintenance costs while saving space for other controls on box trucks, vocational trucks, and specialized vehicles. This light can also replace a Back-up light on power modules. Featuring an acrylic lens and ABS housing, it meets FMVSS 108 standards and provides long life with low maintenance.Stop Tail Turn Light, LED Bulb, Female Pin Connection Type, Grommet, Bracket Mounting, Black Housing, Red/Clear Lens, Red, Clear Light Output, Acrylic Lens, ABS Housing, 0.13 to 0.16 A Current Rating, I, S, T, R(2) Light Function, Oval, 6 in, FMVSS 108 Standards, 12 V, 2 Years Warranty
Features & Benefits
- Bulk Pack
- Reduces inventory, SKUs, and carrying costs.
- Innovative patent-pending design combines all Stop/Tail/Turn and Back-up functions into one industry standard size lamp.
- Symmetrical design meets legal requirements at any mounting angle.
- LED technology provides less maintenance costs and long life.
- Industry-standard oval design fits existing mounting grommets, brackets, and flanges.
Specifications
| Amps | 0.13 amp to 0.16 amp |
| Bulb Type | LED |
| Connection Type | Female Pin |
| Housing Color | Black |
| Lens Color | Red/Clear |
| Material | ABS/Acrylic |
| Mounting Type | Grommet, Bracket |
| Mount Type | Grommet or Bracket Mount |
| Plug Side One | PL-3, Femelle |
| Shape | Ovale |
| Size | 6 po |
| Standard | FMVSS 108 |
| Standards | FMVSS 108 |
| Technology | DEL |
| Type | Arrêt/arrière/clignotant et de recul |
| VMRS Code | 034-002-059 |
| Voltage Rating | 12V |
| Warranty | 2 ans |
| Current Rating | 0.13 à 0.16 A |
| Light Output Color | Red, Clear |
| Light Function | I, S, T, R(2) |
| Product Category | Feu d'arrêt arrière et clignotant |
Interchanges & Equivalent parts:
| 7376-54682 |
| GRO54682 |
| STL68RB |
| M85615R |
| 726607 |
| 54682 |
| M85620R |
