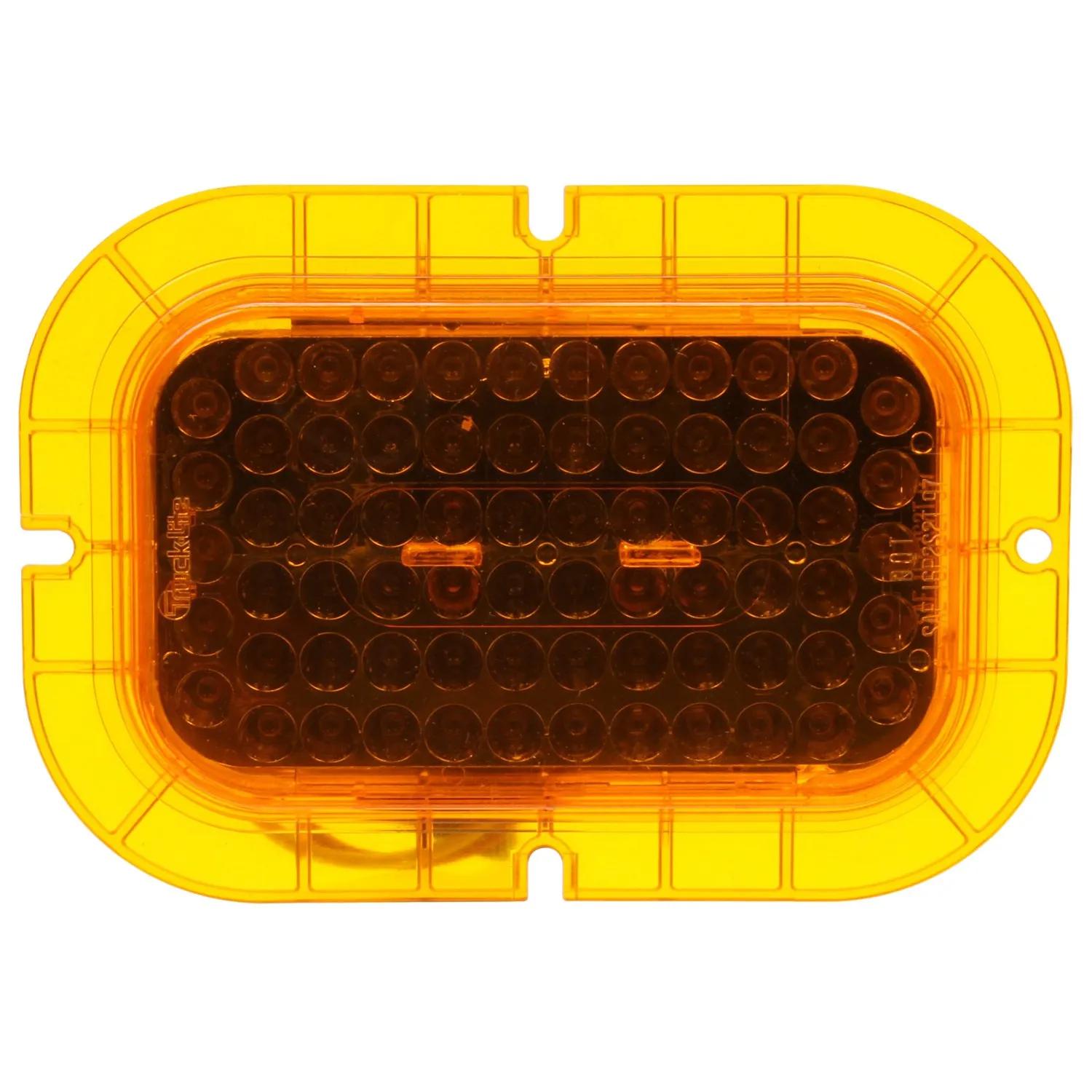

Stop/Tail/Turn Light, Amber, Rectangular
#TRL45256Y
Product Overview
45 Series, LED, Yellow Rectangular, 70 Diode, Rear Turn Signal, Yellow Flange Mount, Hardwired, Straight PL-3, 12V
Features & Benefits
- Hardwired design
- Mount horizontally or vertically
- Permanently affixed flange mount version
- Standard connector makes retrofitting a snap
Specifications
| Color | Amber |
| Common Size | 3 in (7.62 cm) |
| Current Major | 0.36 amp |
| Current Minor | 0.03 amp |
| Depth | 1-7/16 in (3.66 cm) |
| Height | 6-1/8 in (15.57 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 6-1/8 in (15.57 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-3, Female |
| Position | Rear |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-003-141 |
| Volt | 12V |
| Width | 4-7/32 in (10.72 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 45256Y |
| 841345256Y |
| OB100558 |
| HT50601753 |
| TL45256Y |
| TLD45256Y |
| 45266Y |
| TRU45256Y |
| 8413-45256Y |
| LIT45256Y |
| TL 45256Y |
| TL 45256Y |
