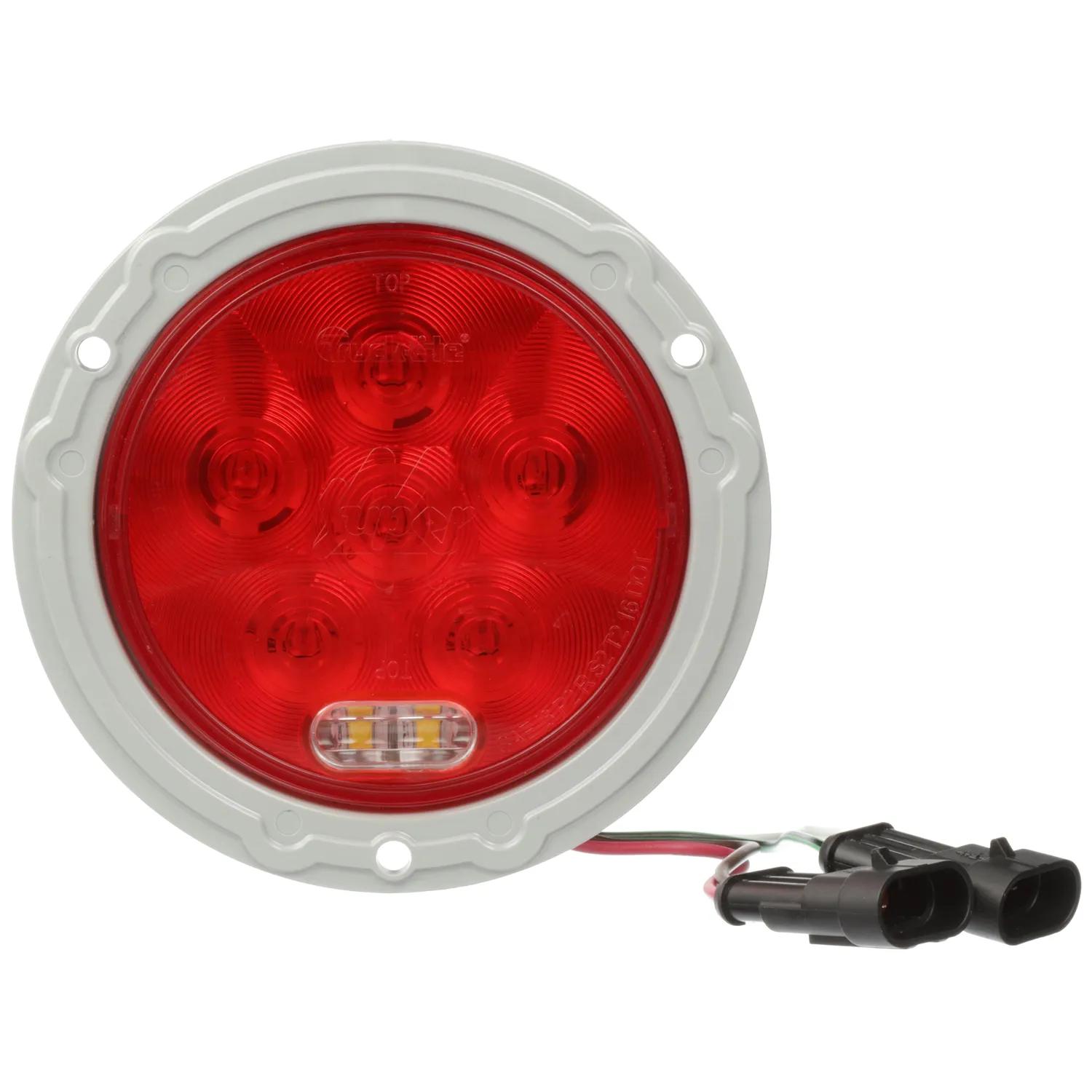

Stop/Tail/Turn & Back-Up, Red, Round
#TRL44551R
Product Overview
Super 44, LED, Round, Red/Clear 8 Diode Stop/Turn/Tail & Back-Up, Gray Flange Mount, Hardwired, Fit 'N Forget S.S., 12V
Features & Benefits
- Constructed with a polycarbonate housing and lens, providing 3x's the impact protection than others made with an acrylic lens
- Designed with added epoxy encapusating the internal components to further protect against impact and vibration
- Completely sealed lens and housing contruction leading to less lighting failures caused by corrosion due to water damage
- Recognizable Truck-lite 6-Diode pentastar design for a modern look.
- Complies with FMVSS requirement for minimum of 75 cm2 of luminous red area
Specifications
| Color | Red & White |
| Common Size | 4 in (10.16 cm) |
| Current Major | 0.33 amp |
| Current Minor | 0.02 amp |
| Depth | 63/64 in (2.49 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-1/2 in (13.97 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 4 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Fit 'N Forget S.S. |
| Reflectorized (Y/N) | No |
| Series | 44 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn & Back-Up |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 55212 |
| 44551RTLT |
