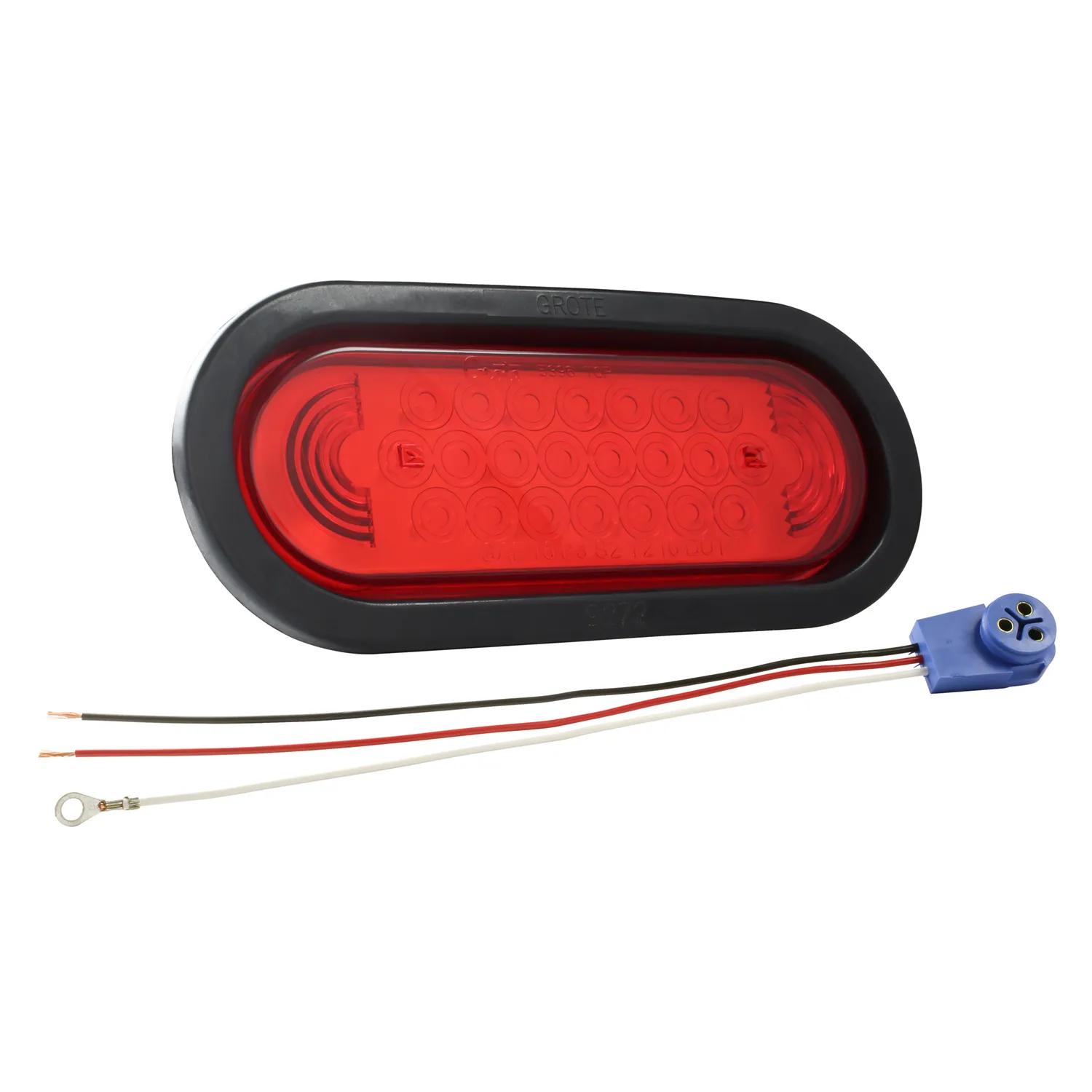

Stop/Tail/Turn Light, Red, Oval
#GRO53122
Product Overview
Advanced Pin Connection System Uses Tin-Plated, Solid Brass Terminals, Bullet-Proof Potted LED Circuit Board, Male Pin Termination For Premium Seal Ability, Meets Specifications For Vertical & Horizontal Mounting, LED's Provide Greater Stopping Distance For Trailing Vehicle
Features & Benefits
- Led technology for efficient and bright lighting
- Meets vertical and horizontal mounting specifications
- Encapsulant potting ensures complete circuit-board protection
- Male pin termination for superior moisture and corrosion resistance
- Tin-plated, solid-brass terminals for durable pin-connection system
Specifications
| Amps | 0.02 amp to 0.3 amp |
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.34 amp |
| Current Minor | 0.04 amp |
| Depth | 1-5/8 in (4.14 cm) |
| Diamond Shell (Y/N) | No |
| Function | I, P2, S, T |
| Height | 2-5/16 in (5.87 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108 |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| Volt | 12V |
| Width | 2-15/64 in (5.66 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 60050R |
| V420KR2 |
| 60050R1 |
| 60050R3 |
| 7376-53122 |
| GRO 53122 |
| GRO53122 |
| TKL60050R |
| TKL60085R |
| ZBJ53122 |
| ZBJD53122 |
| 420KR-5 |
| 728041 |
| 81162SP |
| 81163S |
| 81165S |
| 30700 |
| 40282Y |
| 502633 |
| 53122 |
| 420KR5 |
| 6454D |
