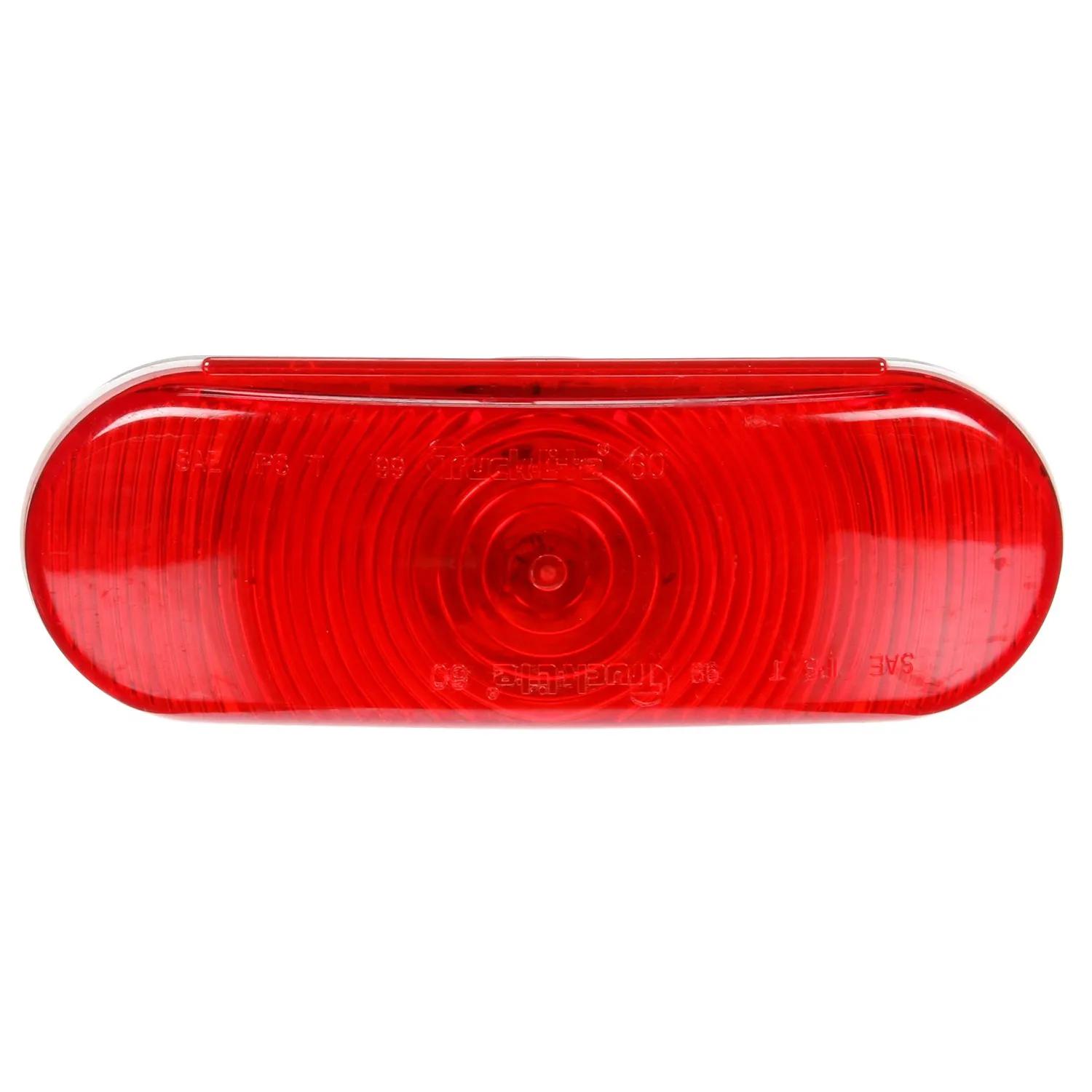

Stop/Tail/Turn Light, Red, Oval
#TRL60207R
Product Overview
Super 60, Incandescent, Red, Oval, 1 Bulb, Stop/Turn/Tail, PL-3, 24V
Features & Benefits
- Mount horizontally or vertically
- Right angle plug assembly
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.93 amp |
| Current Minor | 0.34 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/4 in (5.72 cm) |
| Kit (Y/N) | No |
| Length | 6-1/2 in (16.51 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 24V |
| Width | 6-1/2 in (16.51 cm) |
Interchanges & Equivalent parts:
| 52092 |
| 421R24V |
| 60207R |
| 94890465 |
| HT50603355 |
| TRU60207R |
| 52092GR0 |
| 841360207R |
| TL60207R |
| TLD60207R |
| 115A902 |
| 314984 |
| 8223531000 |
| T178946 |
| 2144655 |
| 214-4655 |
| 8413-60207R |
| LIT60207R |
| M421R-24V |
| TL 60207R |
| TL 60207R |
