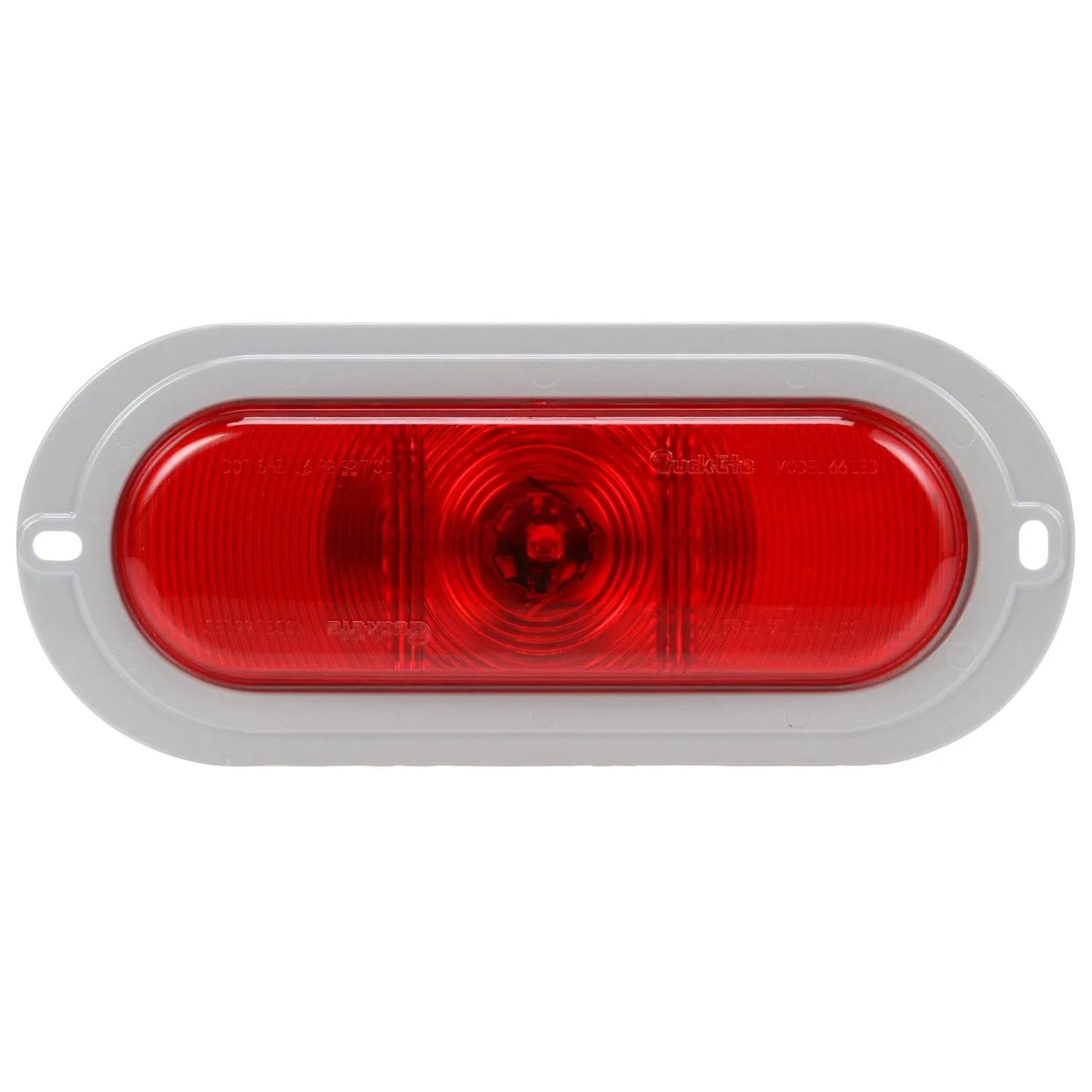

Stop/Tail/Turn Light, Red, Oval
#TRL66052R
Product Overview
Super 66, LED, Red, Oval, 1 Diode, Stop/Turn/Tail, Gray Flange Mount, Fit 'N Forget S.S., Straight PL-3 Female, 12V, Kit
Features & Benefits
- Designed to look more like a standard incandescent lamp but has more light output
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.47 amp |
| Current Minor | 0.03 amp |
| Depth | 1-43/64 in (4.24 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-5/16 in (8.41 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 7-7/8 in (20.02 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 66 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 7-7/8 in (20.02 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 53592 |
| 66052R |
| 66830 |
| TL66052R |
| TLD66052R |
| 66052R1 |
| TL 66052R |
| 8413-66052R |
| LIT66052R |
| TL 66052R |
| V423KR3 |
