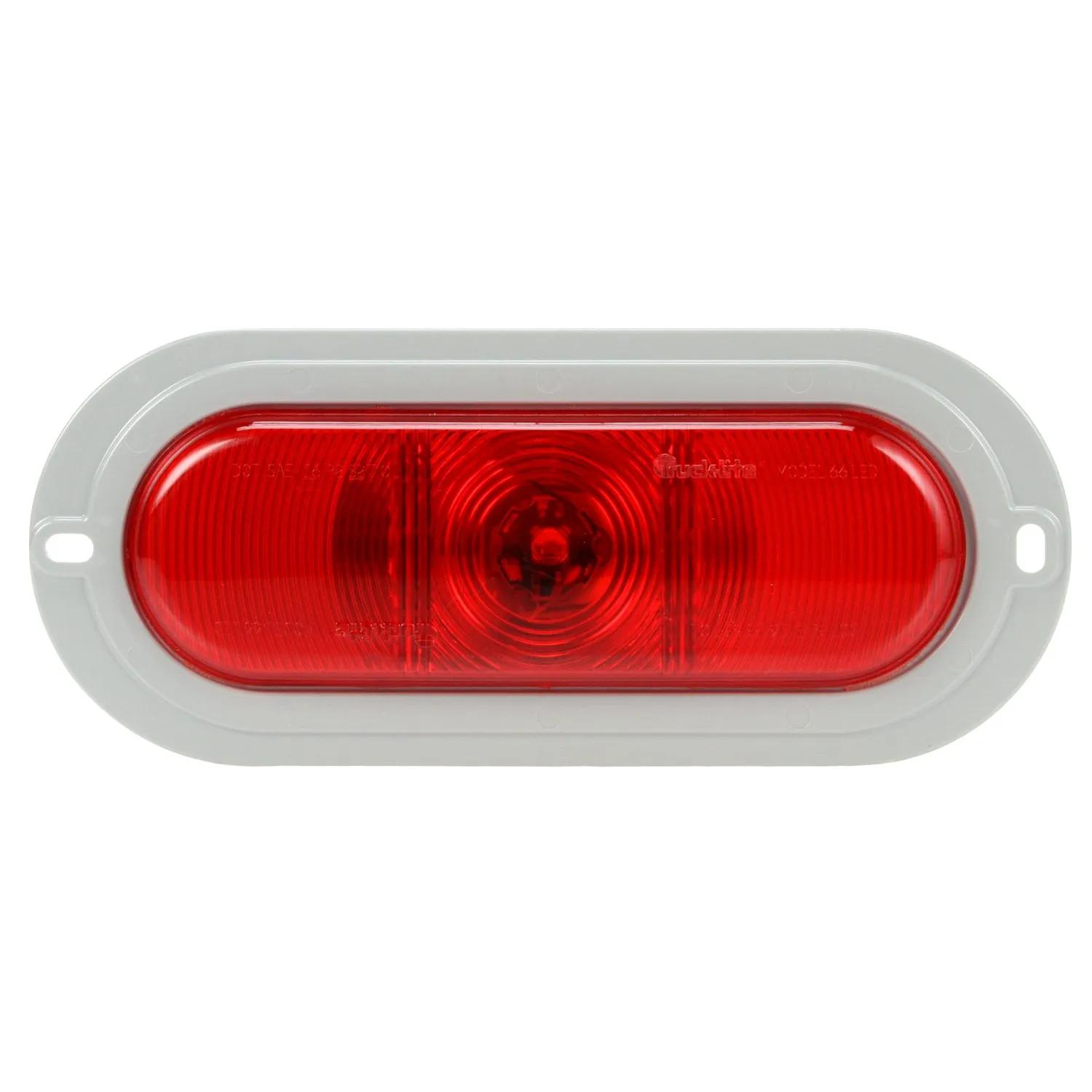

Stop/Tail/Turn Light, Red, Oval
#TRL66252R
Product Overview
Super 66, LED, Red, Oval, 1 Diode, Stop/Turn/Tail, Gray Flange Mount, Fit 'N Forget S.S., 12V
Features & Benefits
- Designed to look more like a standard incandescent lamp but has more light output
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Current Major | 0.47 amp |
| Current Minor | 0.03 amp |
| Depth | 1-43/64 in (4.24 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-5/16 in (8.41 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 7-7/8 in (20.02 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | 66 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 7-7/8 in (20.02 cm) |
Interchanges & Equivalent parts:
| 10020488 |
| 53592 |
| 66252R |
| TL66252R |
| TLD66252R |
| 53592GR0 |
| 81105 |
| GRT53592 |
| T61-RRHA-1 |
| T61-RRVA-1 |
| T61RRHA1 |
| T61RRVA1 |
| 14200825 |
| 811050 |
| LIT66252R |
| M423R3 |
| TL 66252R |
| TL 66252R |
