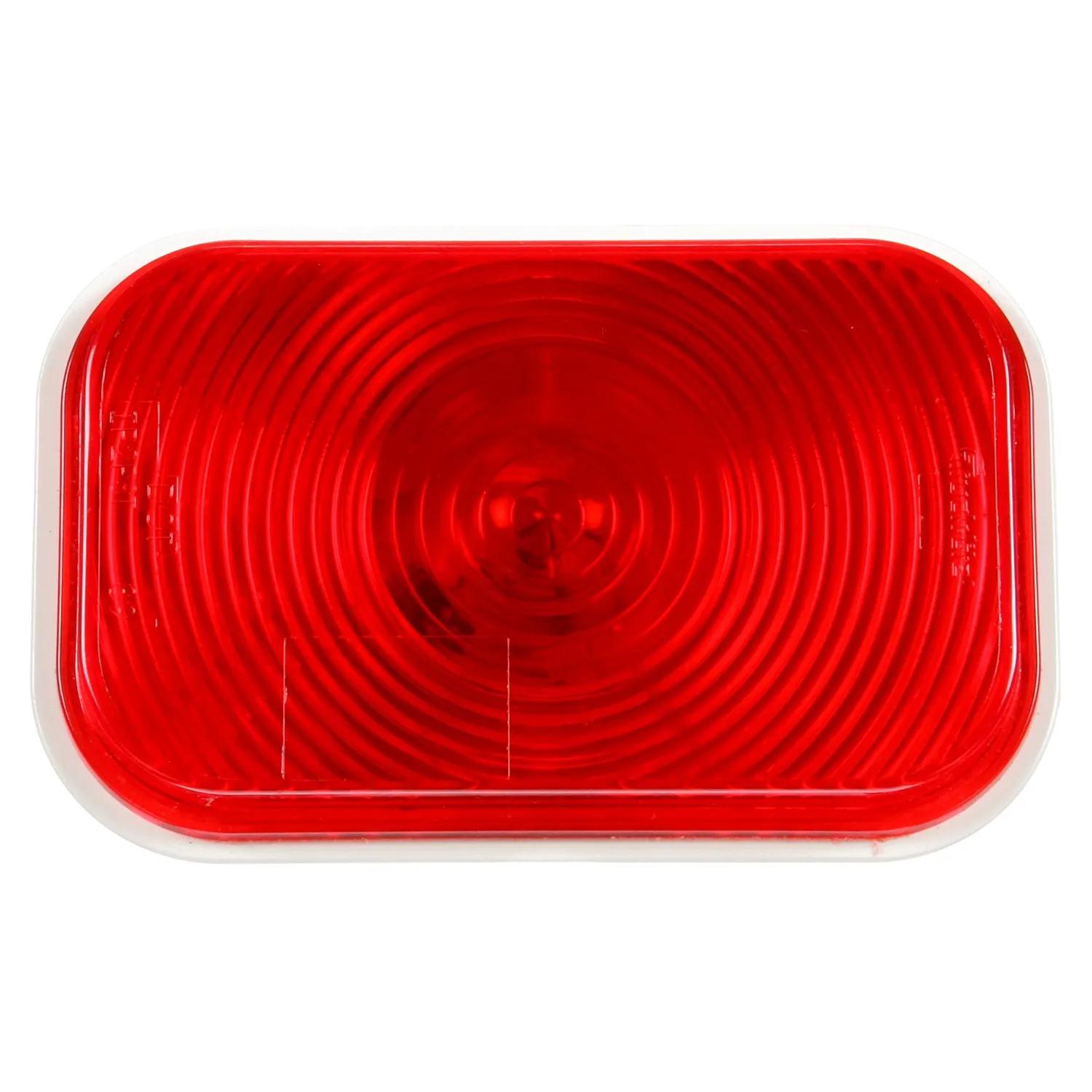

Stop/Tail/Turn Light, Red, Rectangular
#TRL45002R
Product Overview
Super 45, Incandescent, Red, Rectangular, 1 Bulb, Stop/Turn/Tail, Black Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Heavy duty dual filament cartridge bulb
- Mount horizontally or vertically
- Unique shock mount absorbs shock and vibration
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.16 amp |
| Current Minor | 0.47 amp |
| Depth | 1-19/32 in (4.04 cm) |
| Diamond Shell (Y/N) | No |
| Height | 6-19/64 in (16 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-5/16 in (13.49 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-27/64 in (11.23 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 52001364 |
| 45002R |
| 5960238504 |
| 52202 |
| 25220122A |
| 67090 |
| 810420 |
| 8309RX |
| 5041648 |
| 841345002R |
| 705108 |
| 70510899 |
| 85422 |
| 7581001157 |
| NL3105 |
| G1101585 |
| HT50603336 |
| TL45002R |
| TLD45002R |
| TRU45002R |
| P802881 |
| 4500K |
| 45082R |
| 8413-45002R |
| LIT45002R |
| LT45KR |
| ST-34RB |
| TL 45002R |
| TL 45002R |
| 450KR |
| 5112 |
| 81042 |
| 94180GR0 |
| KT4060R |
| 94180 |
| ST34RB |
