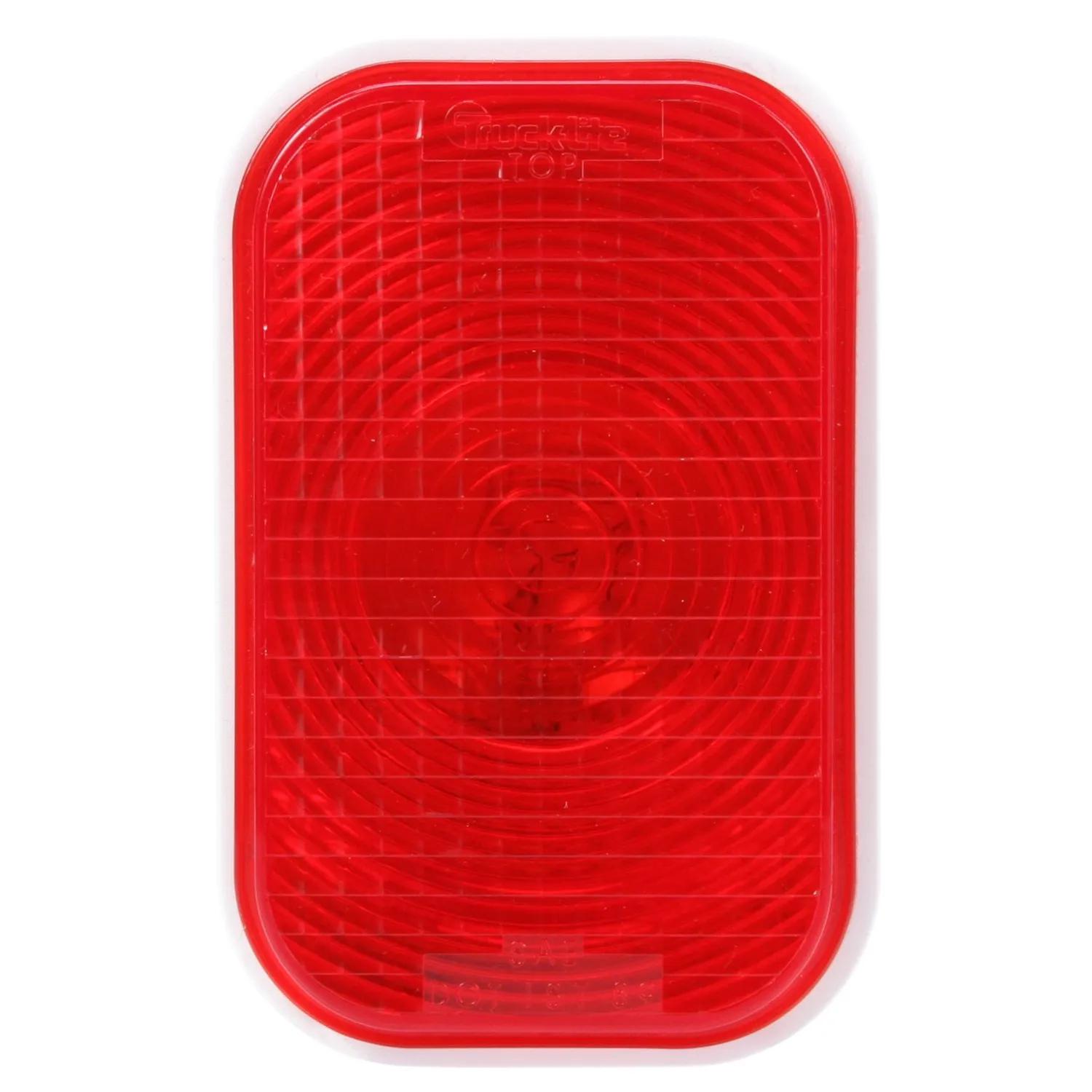

Stop/Tail/Turn Light, Red, Rectangular
#TRL45022R
Product Overview
45 Series, Incandescent, Red Reflectorized, 1 Bulb, LLV Stop/Turn/Tail, Black Grommet Mount, PL-3, Packard Connector, 12V, Kit
Features & Benefits
- Direct replacement for approved lamps on United States Postal Service LLV (Long Life Vehicle)
- Designed for mounting on a 7 - 11 degree rollback from the vertical plane
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.58 amp |
| Depth | 1-27/64 in (3.61 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-5/16 in (13.49 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-5/16 in (13.49 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-3, Female |
| Plug Side Two | Packard Connector |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-000 |
| Volt | 12V |
| Width | 3-13/32 in (8.66 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 81600297 |
| 841345022R |
| HT50601985 |
| TL45022R |
| TLD45022R |
| 45022R3 |
| 5111 |
| 51113 |
| 5112 |
| TRU45022R |
| 8413-45022R |
| LIT45022R |
| TL 45022R |
| TL 45022R |
| 45022R |
