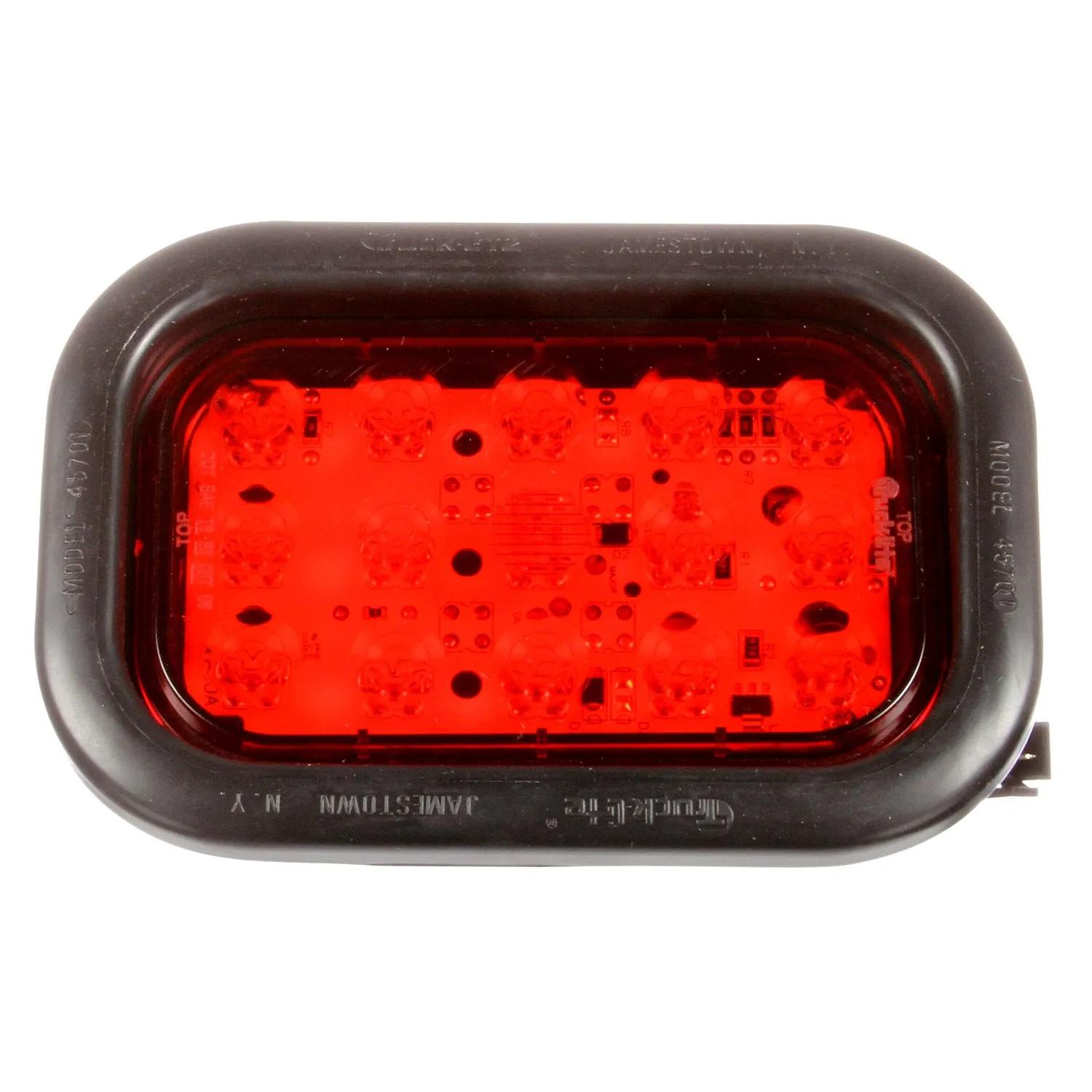

Stop/Tail/Turn Light, Red, Rectangular
#TRL45032R
Product Overview
45 Series, LED, Red, 15 Diode, LLV Stop/Turn/Tail, Black Grommet Mount, Hardwired, Packard Connector, 12V, Kit
Features & Benefits
- Direct replacement for approved lamps on the United States Postal Service LLV
- Designed for mounting on a 7 - 11 degree rollback from the vertical plane
- Mount vertical only
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Contents | Lamp, Grommet |
| Current Major | 0.5 amp |
| Current Minor | 0.04 amp |
| Depth | 1-27/64 in (3.61 cm) |
| Diamond Shell (Y/N) | No |
| Height | 5-5/16 in (13.49 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 5-19/64 in (13.46 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Packard Connector |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 3-13/32 in (8.66 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 8 in (20.32 cm) |
Interchanges & Equivalent parts:
| 8230123000 |
| 841345032R |
| TL45032R |
| TLD45032R |
| 45072R |
| 8413-45032R |
| LIT45032R |
| TL 45032R |
| TL 45032R |
| 45032R |
