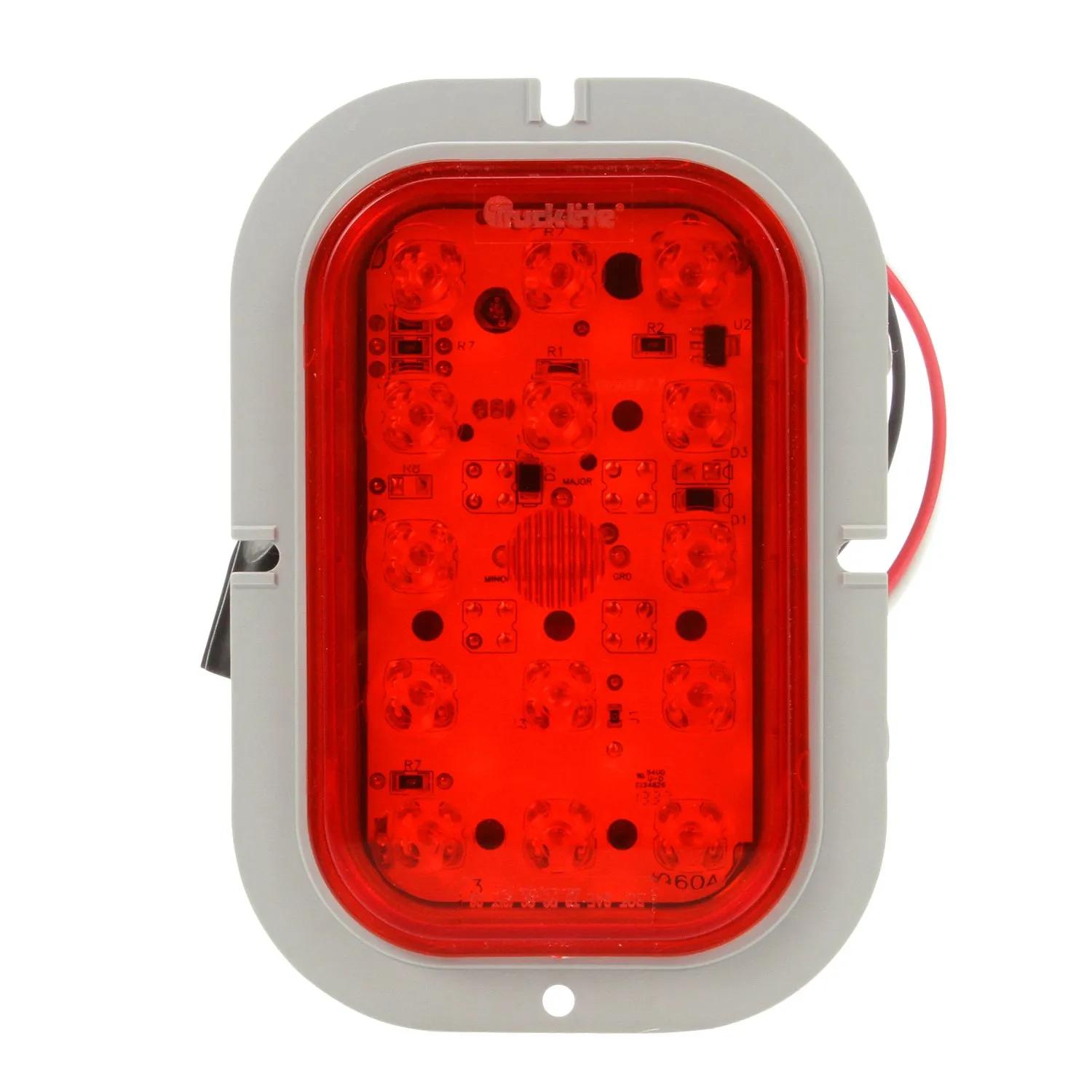

Stop/Tail/Turn Light, Red, Rectangular
#TRL45259R
Product Overview
45 Series, LED, Red, Rectangular, 15 Diode, Stop/Turn/Tail, Gray Flange Mount, Hardwired, Straight PL-3 Female, 12-24V, Kit
Features & Benefits
- Mount horizontally or vertically
- Specifically Designed for use in trailer and body applications
Specifications
| Color | Red |
| Common Size | 3 in (7.62 cm) |
| Current Major | 0.25 amp |
| Current Minor | 0.01 amp |
| Depth | 1-7/16 in (3.66 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 6-1/8 in (15.57 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 6-1/8 in (15.57 cm) |
| Lens Material | Acrylic |
| Material | Acrylic |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-3, Female |
| Reflectorized (Y/N) | No |
| Series | 45 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-041 |
| Width | 4-7/32 in (10.72 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 192483 |
| 45259R |
| 812690 |
| 841345259R |
| 94890281 |
| OB100560 |
| TL45259R |
| TLD45259R |
| 45257R |
| 8413-45259R |
| LIT45259R |
| TKL45259R |
| TL 45259R |
| TL 45259R |
| 81269 |
