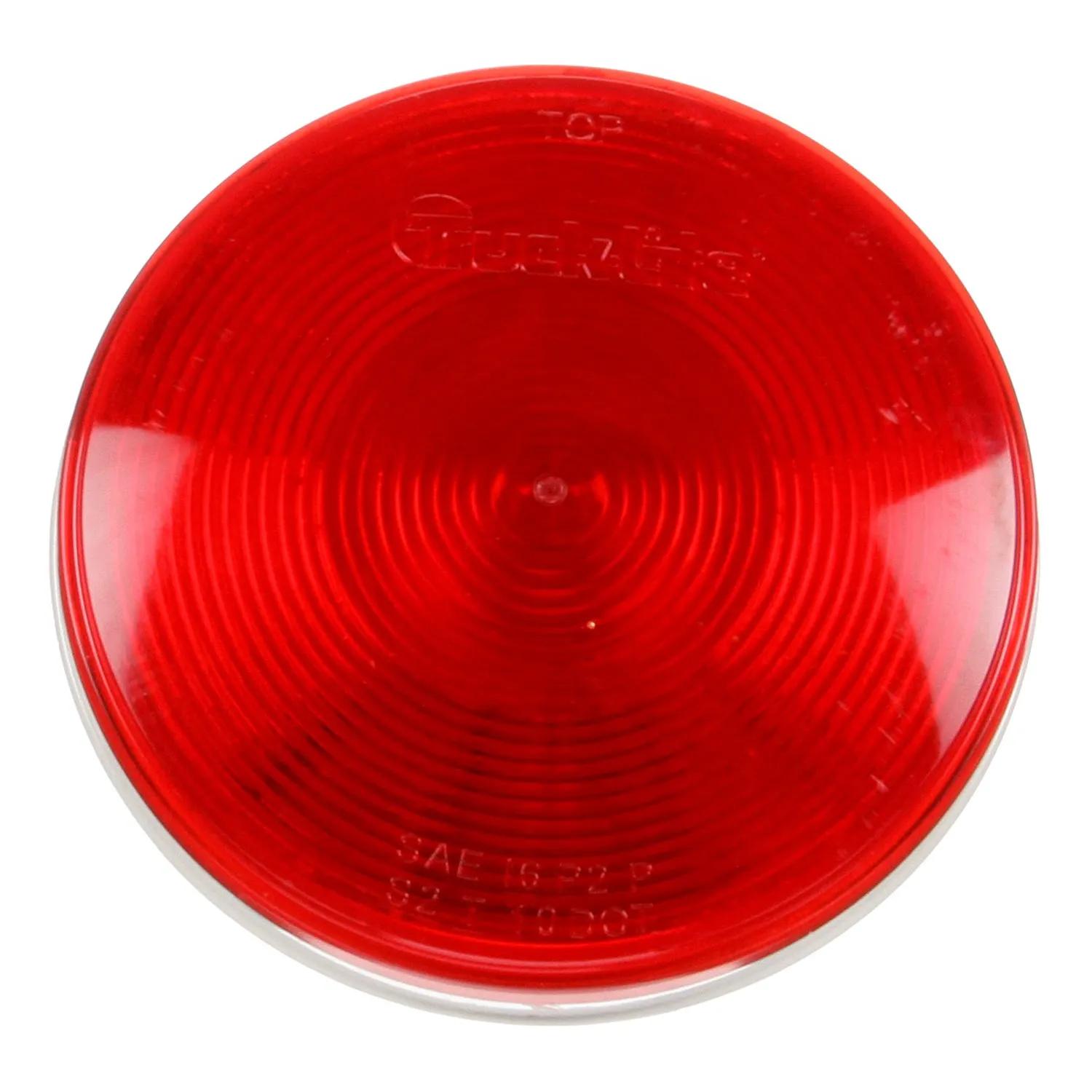

Stop/Tail/Turn Light, Red, Round
#TRL40209R
Product Overview
40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PL-3, 24V
Features & Benefits
- Flush mount grommets are designed for mounting in a 4-1/2"
- hole
- Heavy duty bulb last longer
- Uniquely designed shock-mount extends lamp life
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Color | Rouge |
| Common Size | 4 in (10.16 cm) |
| Contents | Lampe |
| Current Major | 0.93 amp |
| Current Minor | 0.34 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-5/16 in (10.95 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 24V |
| Width | 4-5/16 in (10.95 cm) |
Interchanges & Equivalent parts:
| 14200804 |
| 1150900 |
| 426R24V |
| 106339 |
| 9581100204 |
| CT6101531 |
| 1434593H1 |
| 1434593HI |
| 2291C118 |
| AA43709 |
| 735105 |
| 73510599 |
| 930345 |
| 841340209R |
| 701116200 |
| 705201812 |
| 40209R |
| 90001951 |
| 802413 |
| 6702519 |
| 759074 |
| 7594655 |
| 9029A32372 |
| PB5602 |
| OBI40209R |
| HT50602575 |
| TL40209R |
| TLD40209R |
| TRL40209R |
| EU1503054 |
| K256703 |
| 130074 |
| 1402149 |
| 40209R3 |
| 40304 |
| 40444 |
| 778059 |
| TRU40209R |
| 759-4655 |
| 8413-40209R |
| LIT40209R |
| TL 40209R |
| TL 40209R |
| TL-40209R |
| 52152GR0 |
| M426R24V |
| 52152 |
| TG52152 |
| AT112178 |
| 52152-3 |
| 521523 |
