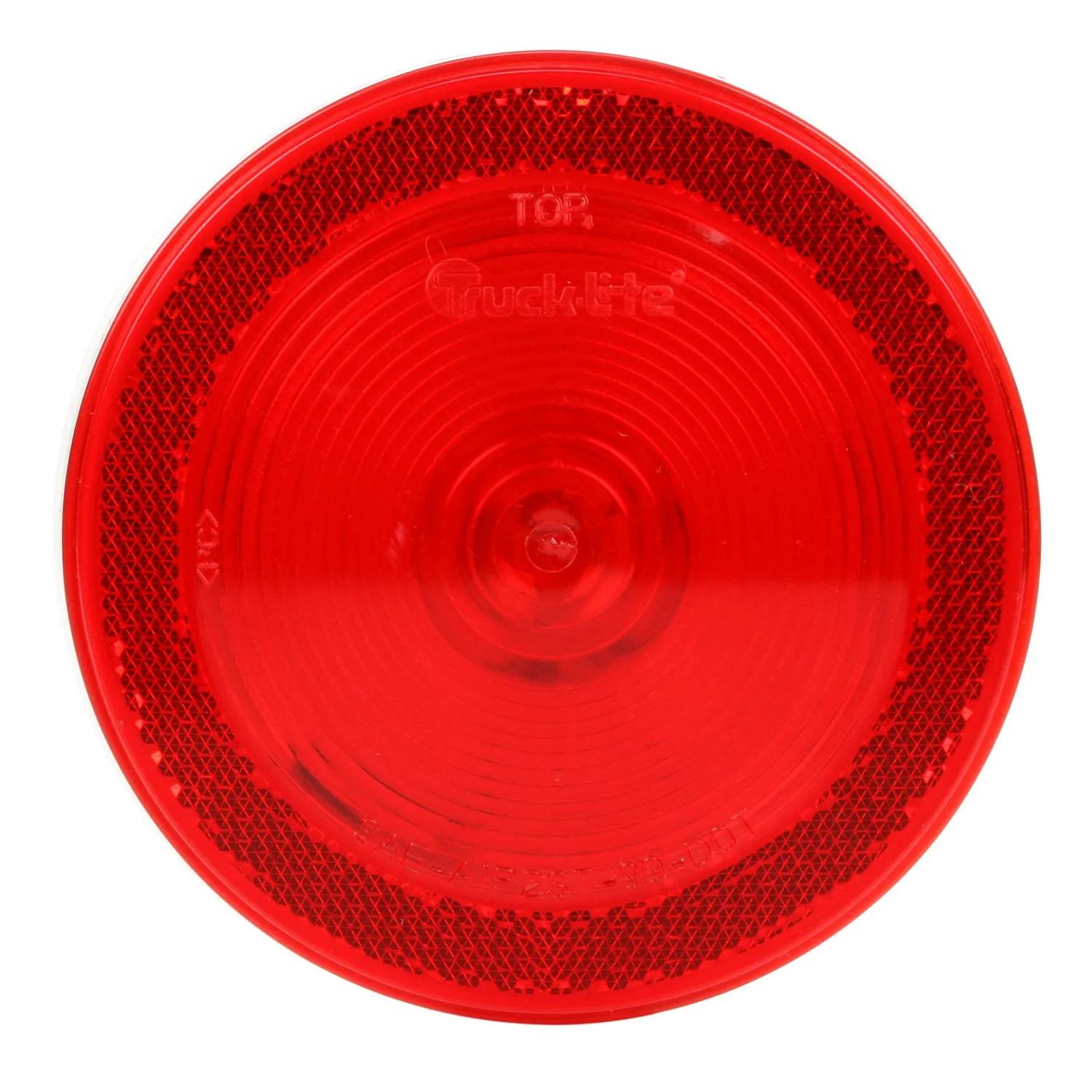

Stop/Tail/Turn Light, Red, Round
#TRL40232R
Product Overview
40 Series, Incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, Reflectorized, PL-3, 24V
Features & Benefits
- Flush mount grommets are designed for mounting in a 4-1/2"
- hole
- Heavy duty bulb last longer
- Uniquely designed shock-mount extends lamp life
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 0.93 amp |
| Current Minor | 0.34 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Height | 4-5/16 in (10.95 cm) |
| Kit (Y/N) | No |
| Length | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Reflectorized (Y/N) | Yes |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Stop/Tail/Turn Light |
| VMRS Code | 034-002-013 |
| Volt | 24V |
| Width | 4-5/16 in (10.95 cm) |
Interchanges & Equivalent parts:
| 1434593H1 |
| 841340232R |
| 40232R |
| TL40232R |
| TLD40232R |
| 783173 |
| 40444 |
| 8413-40232R |
| LIT40232R |
| TL 40232R |
| TL 40232R |
